OSB, MW, 100 mm cavity, rep 1
Oriented Strand Board (OSB)
Description

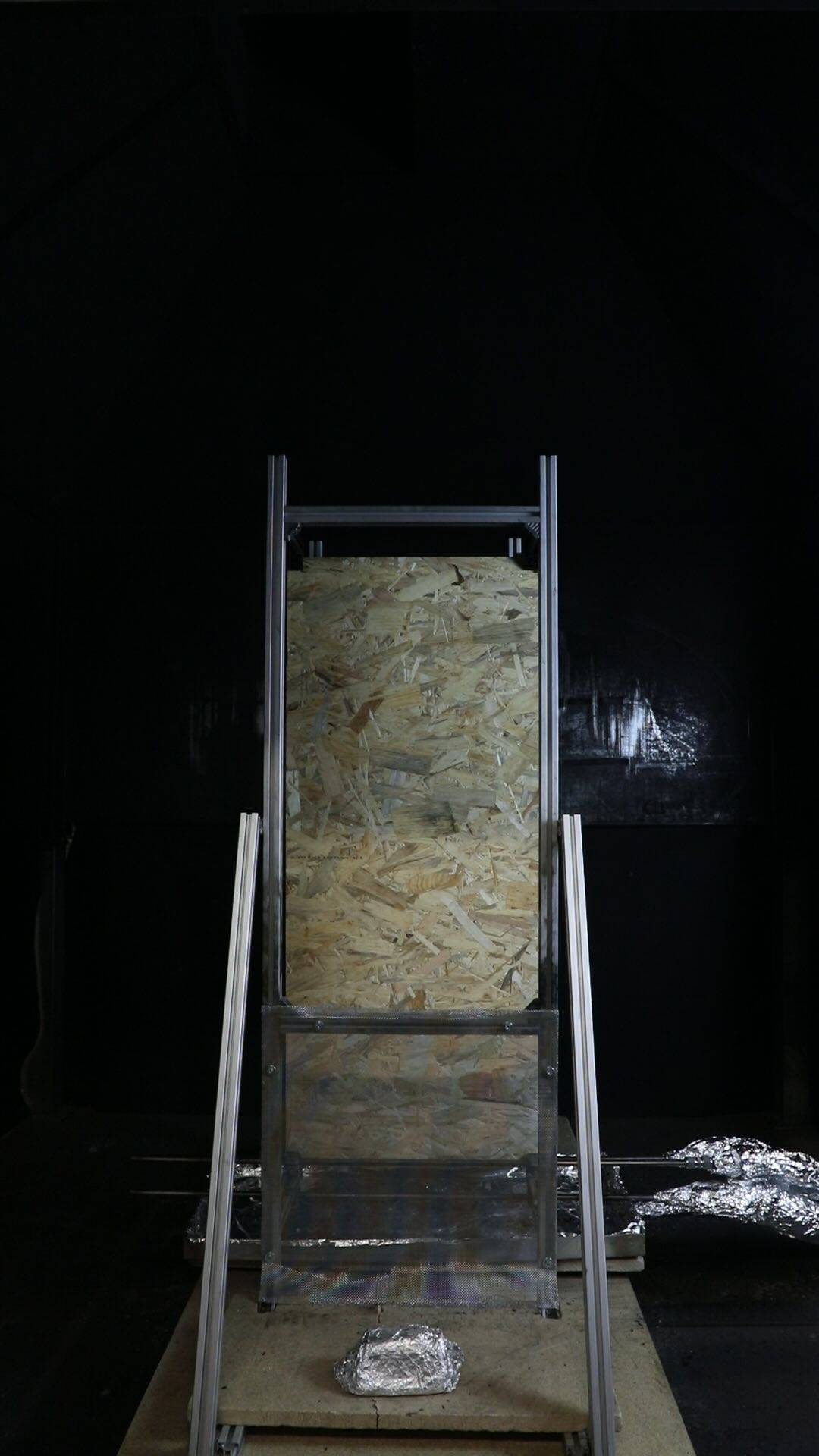

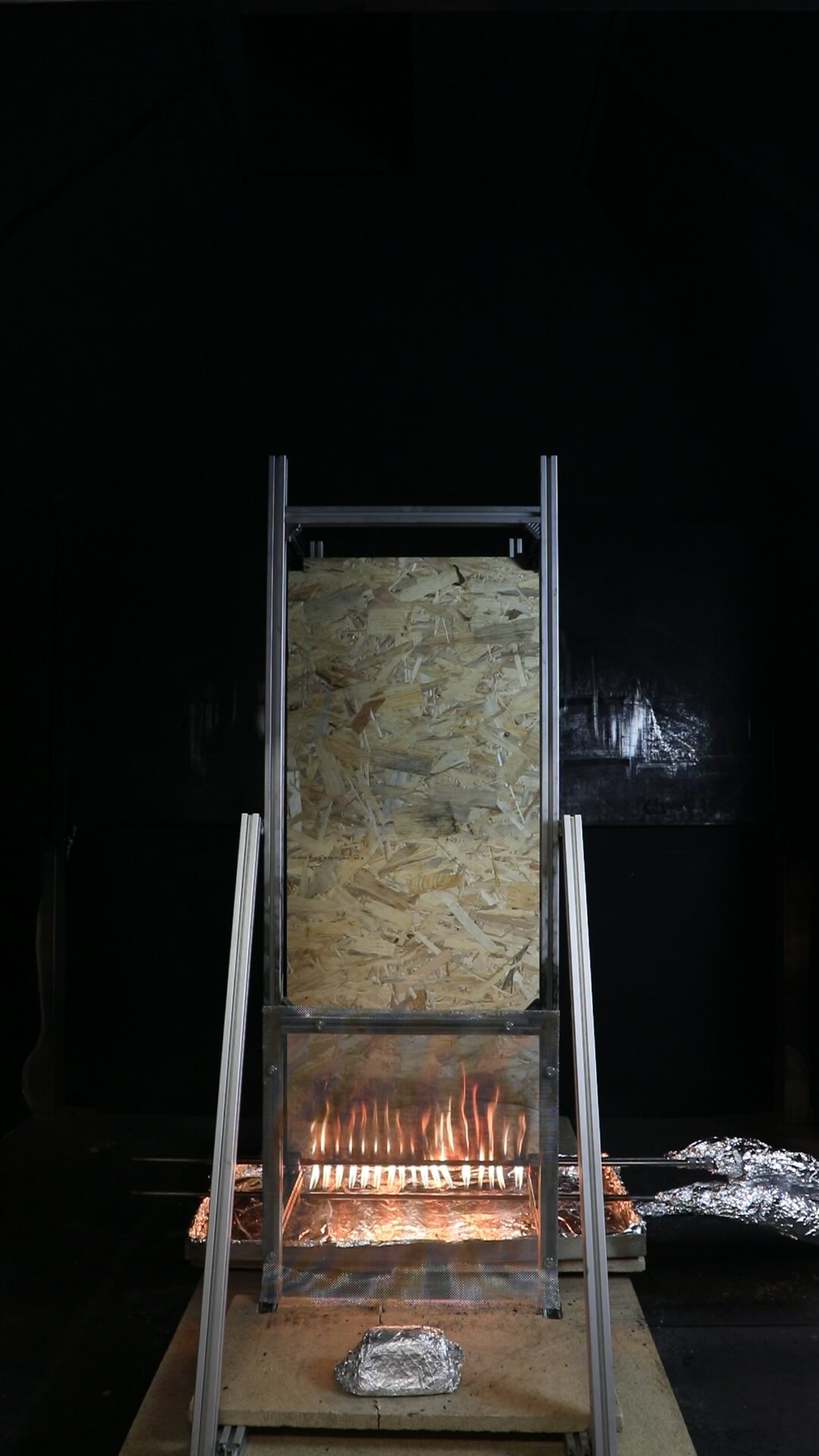

This experiment is on a system consisting of an Oriented Strand Board (OSB) cladding panel and a Mineral Wool (MW) insulation panel, separated with a cavity of 100 mm width. It is the first repetition of this system configuration.
Experiment Notes

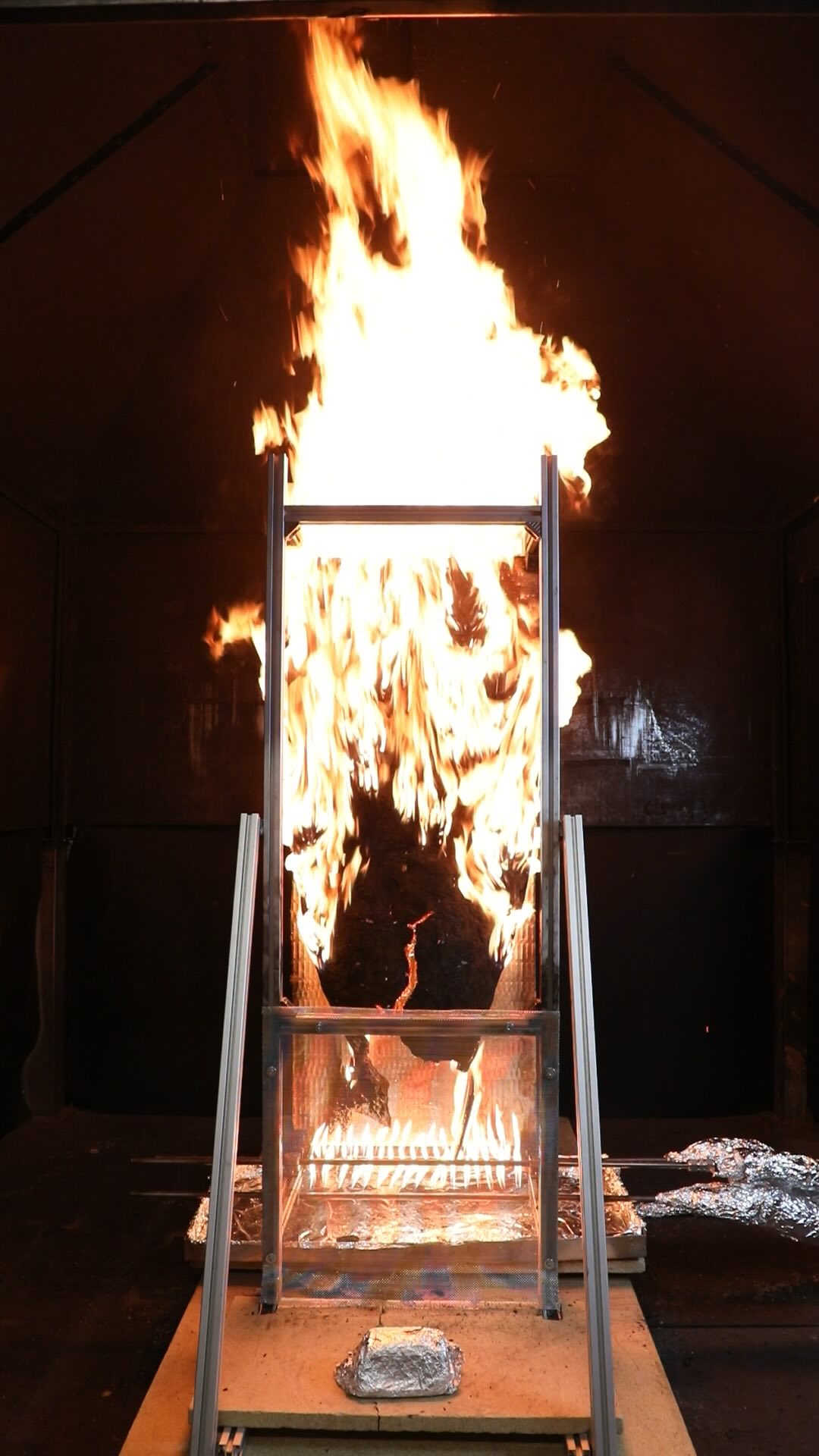

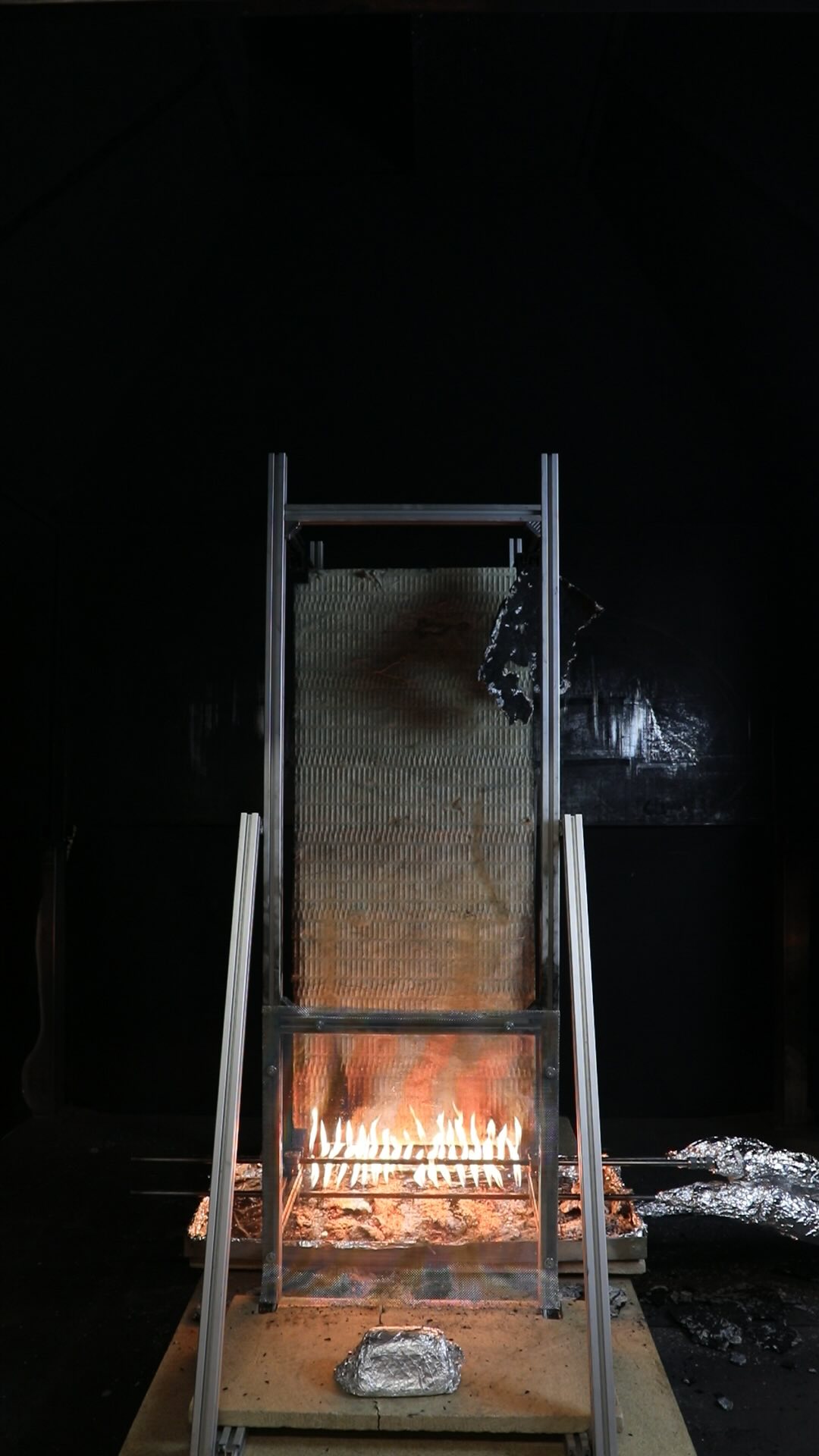

At approximately 7 minutes the OSB panel began to touch the insulation panel, affecting the mass measurements. At approximately 10 minutes the OSB panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly.
Test Details
| Cladding Thickness [mm] | 11 |
| Insulation | Mineral Wool (MW) |
| Insulation thickness [mm] | 25 |
| Cavity width [mm] | 100 |
| Repetition number | 1 |
| Cladding material ID (UQ) | |
| Insulation material ID (UQ) |
Metrics
| Peak HRR [kW] | 178 |
| Time to Peak HRR [mins] | 7.92 |
| Total HR [MJ] | 5.52 |
| Peak dQ/dt [kW/s] | 1.05 |
| Time to Peak dQ/dt [mins] | 5.52 |
| Residual HRR [kW] | 6.06 |
Video
HRR [kW]
Minutes
30
