OSB, MW, 200 mm cavity, rep 1
Oriented Strand Board (OSB)
Description

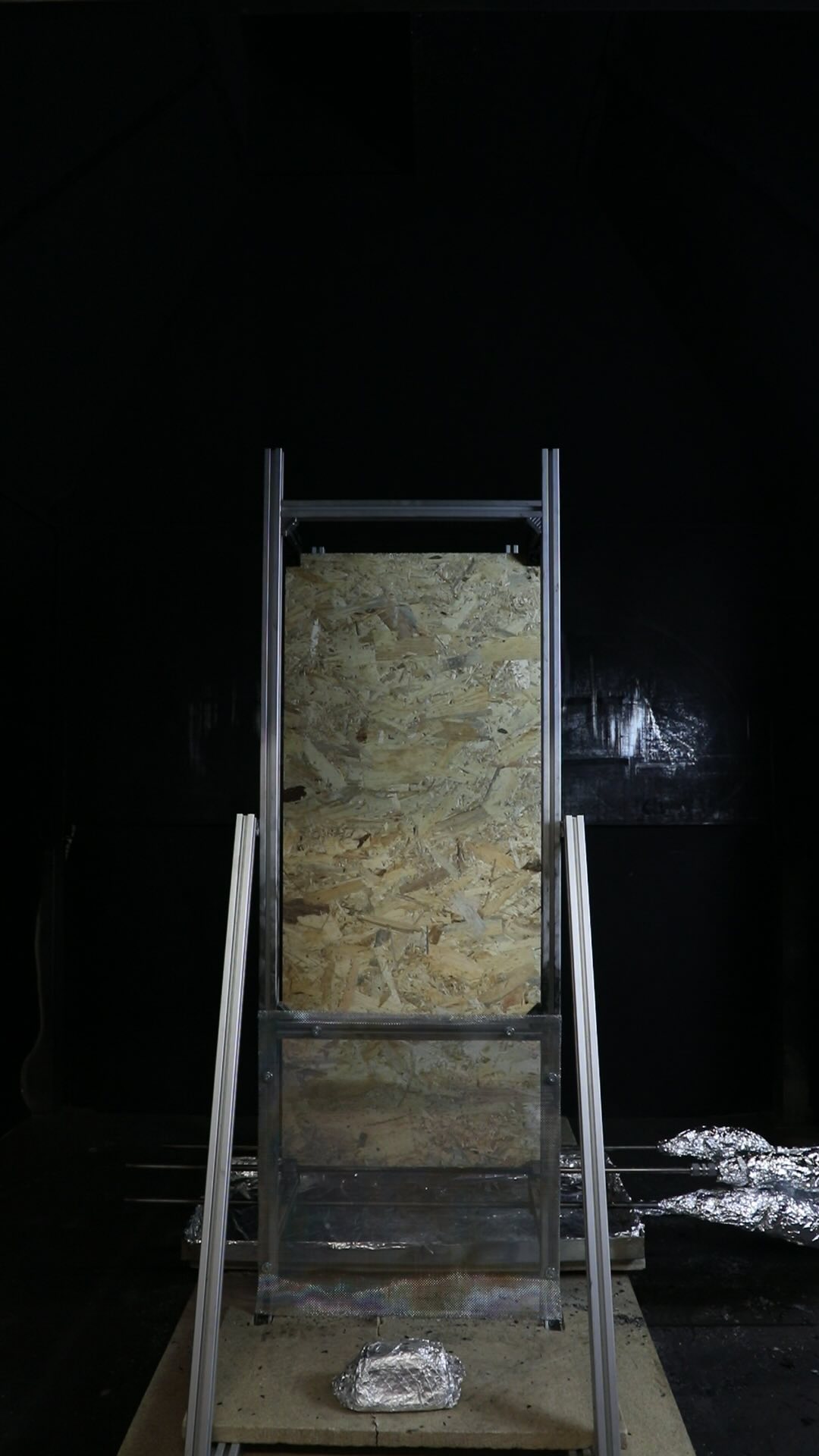

This experiment is on a system consisting of an Oriented Strand Board (OSB) cladding panel and a Mineral Wool (MW) insulation panel, separated with a cavity of 200 mm width. It is the first repetition of this system configuration.
Experiment Notes

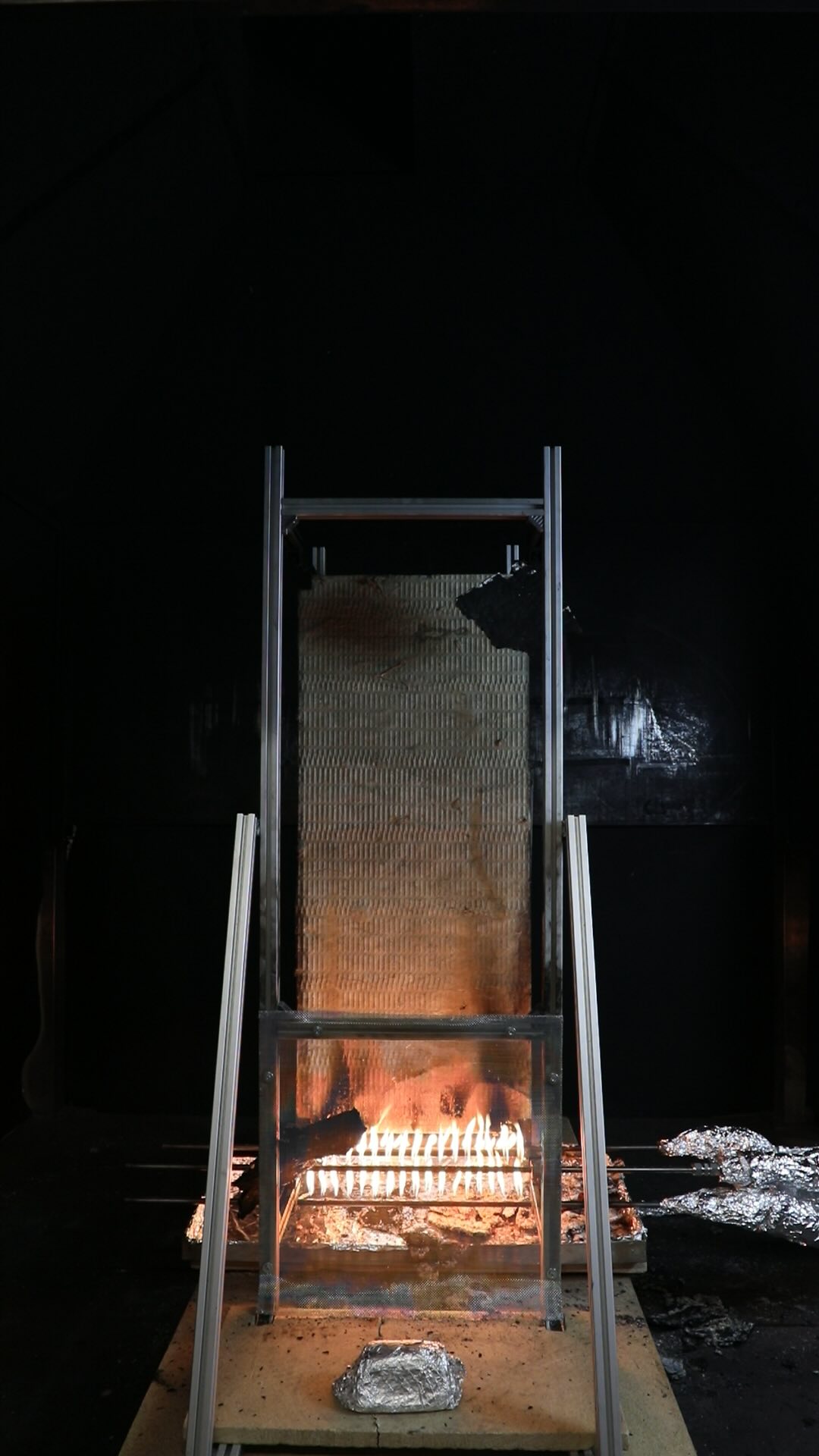

At approximately 10 minutes the OSB panel began to touch the insulation panel, affecting the mass measurements. At approximately 10 minutes the OSB panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly.
Test Details
| Cladding Thickness [mm] | 11 |
| Insulation | Mineral Wool (MW) |
| Insulation thickness [mm] | 25 |
| Cavity width [mm] | 200 |
| Repetition number | 1 |
| Cladding material ID (UQ) | |
| Insulation material ID (UQ) |
Metrics
| Peak HRR [kW] | 150 |
| Time to Peak HRR [mins] | 7.95 |
| Total HR [MJ] | 8.25 |
| Peak dQ/dt [kW/s] | 0.66 |
| Time to Peak dQ/dt [mins] | 8.25 |
| Residual HRR [kW] | 7.05 |
Video
HRR [kW]
Minutes
30
