OSB, MW, 100 mm cavity, rep 3
Oriented Strand Board (OSB)
Description

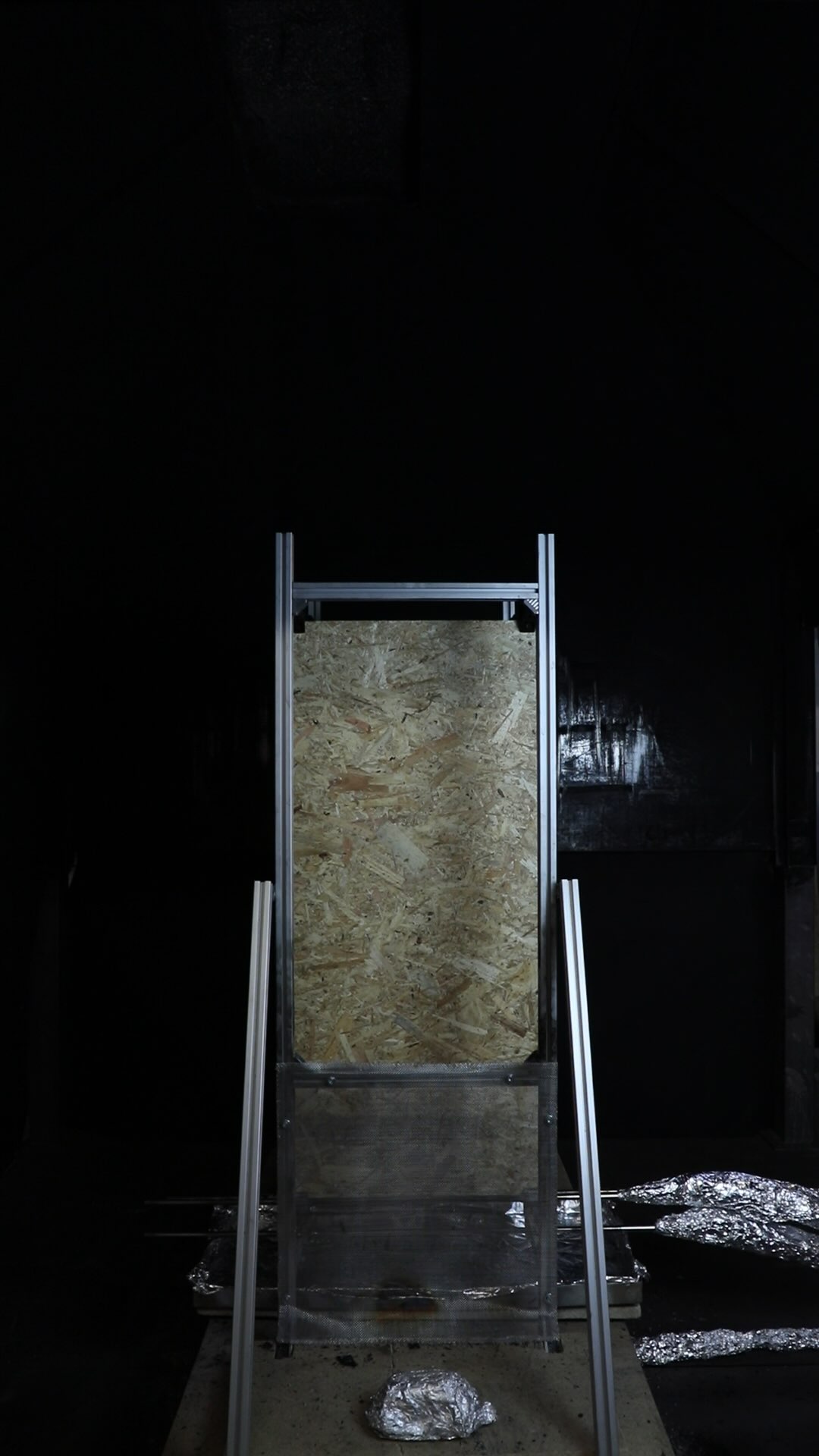

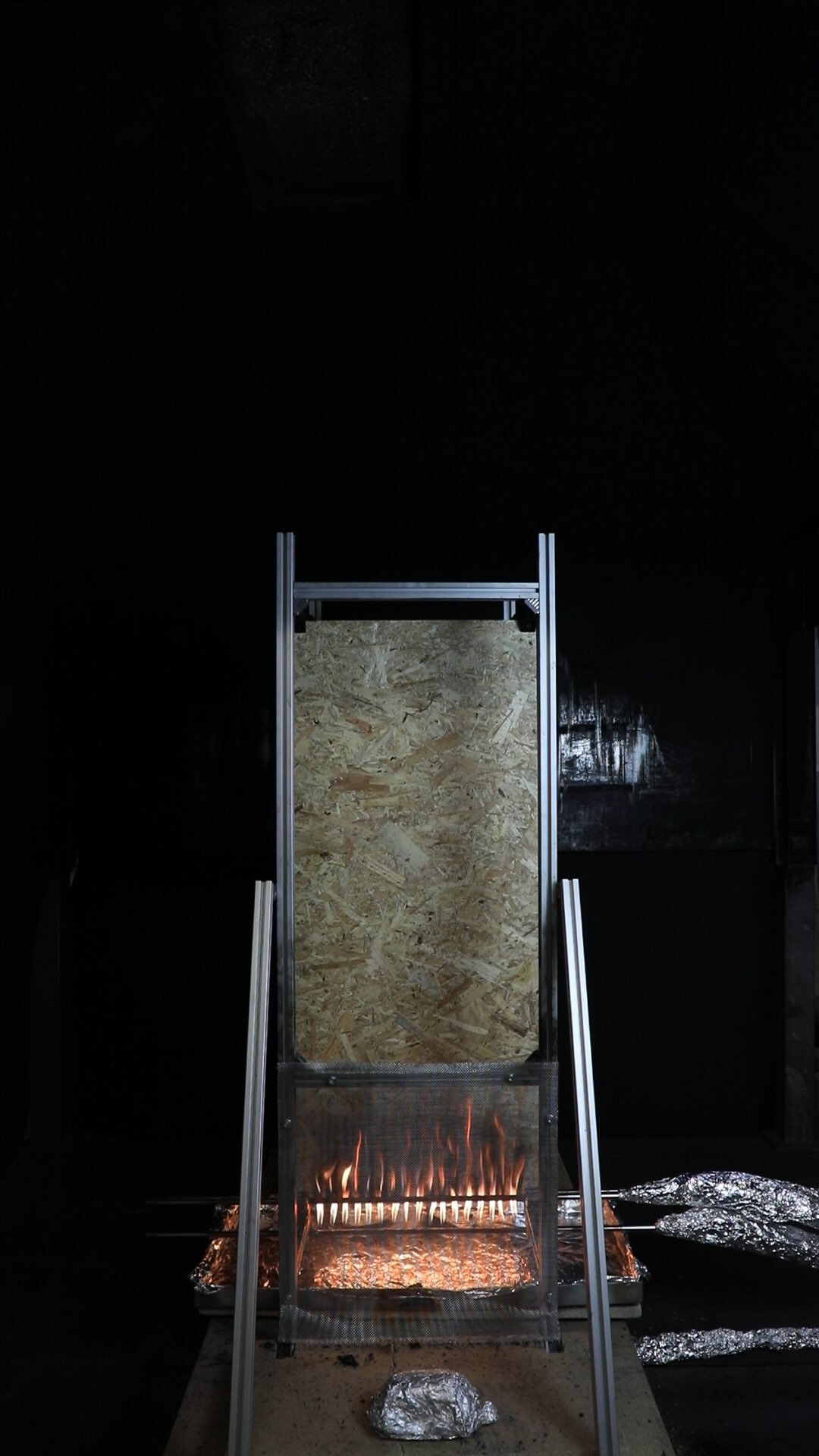

This experiment is on a system consisting of an Oriented Strand Board (OSB) cladding panel and a Mineral Wool (MW) insulation panel, separated with a cavity of 100 mm width. It is the third repetition of this system configuration.
Experiment Notes

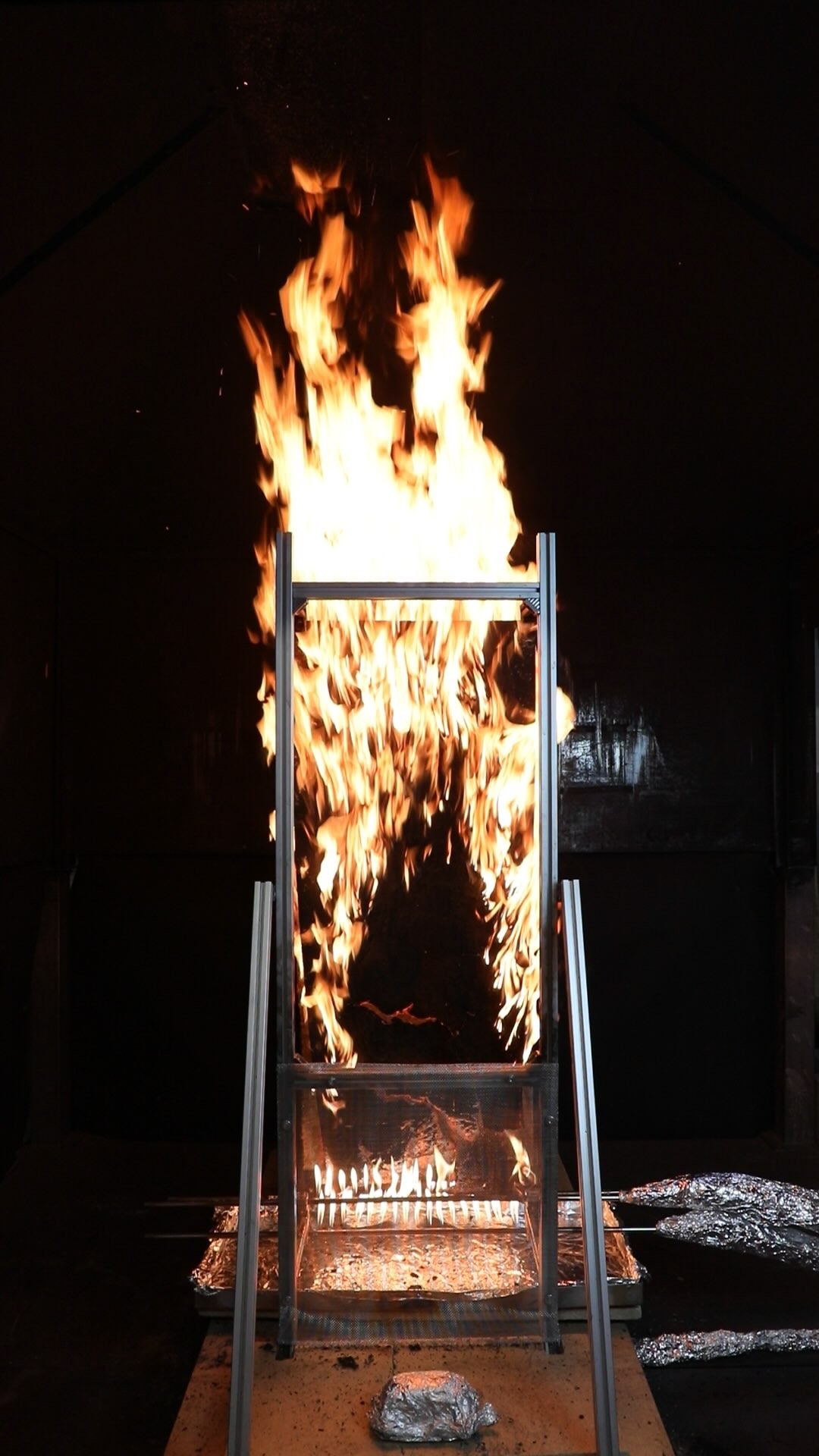

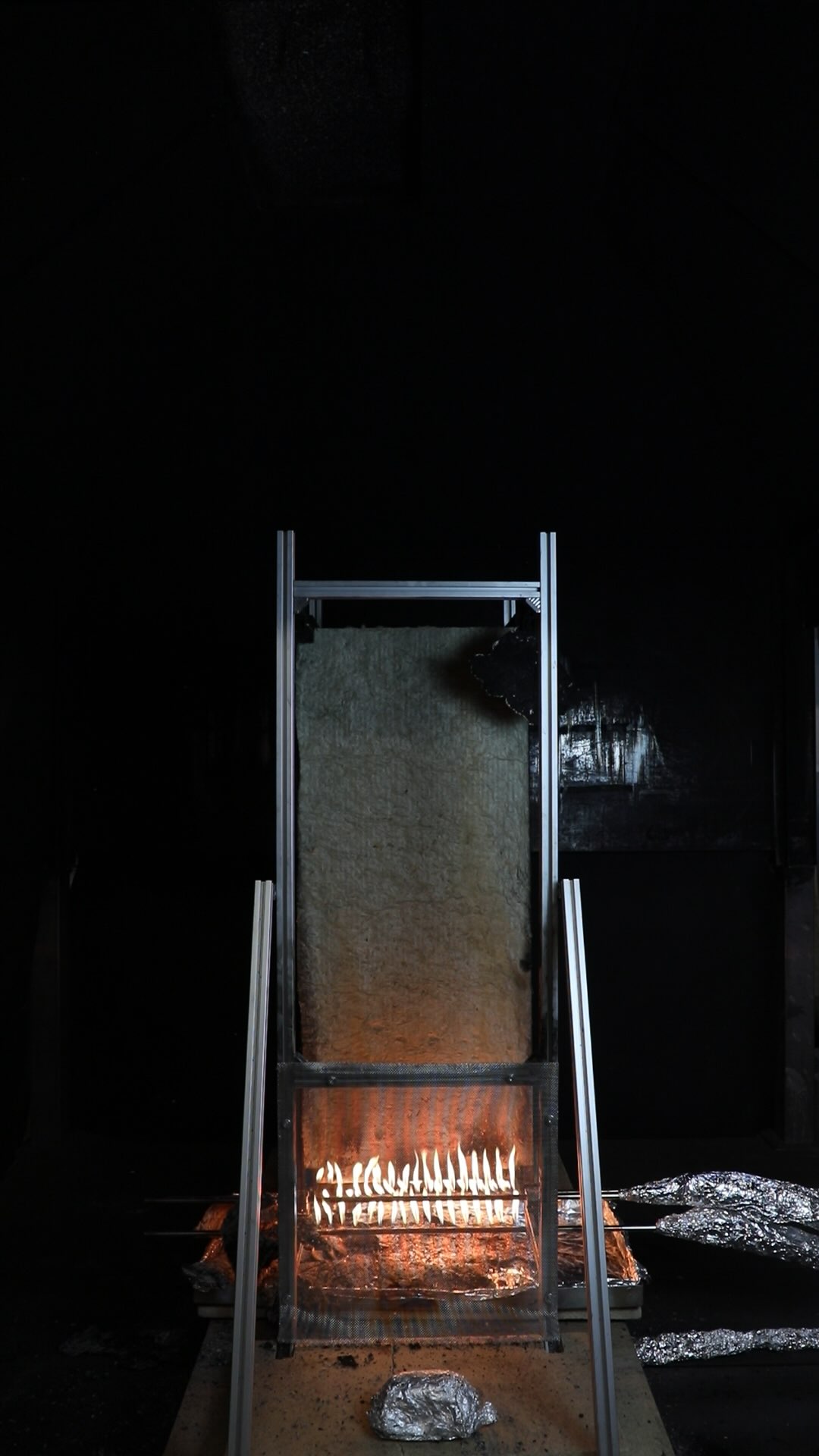

At approximately 7 minutes the OSB panel began to touch the insulation panel, affecting the mass measurements. At approximately 10 minutes the OSB panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly.
Test Details
| Cladding | Oriented Strand Board (OSB) |
| Cladding Thickness [mm] | 11 |
| Insulation | Mineral Wool (MW) |
| Insulation thickness [mm] | 25 |
| Cavity width [mm] | 100 |
| Repetition number | 3 |
Metrics
| Peak HRR [kW] | 158 |
| Time to Peak HRR [mins] | 8.35 |
| Total HR [MJ] | 63.6 |
| Peak dQ/dt [kW/s] | 0.674 |
| Time to Peak dQ/dt [mins] | 5.87 |
| Residual HRR [kW] | 10.7 |
Video
HRR [kW] including burner baseline
Minutes
30
