OSB, no insulation, rep 2
Oriented Strand Board (OSB)
Description

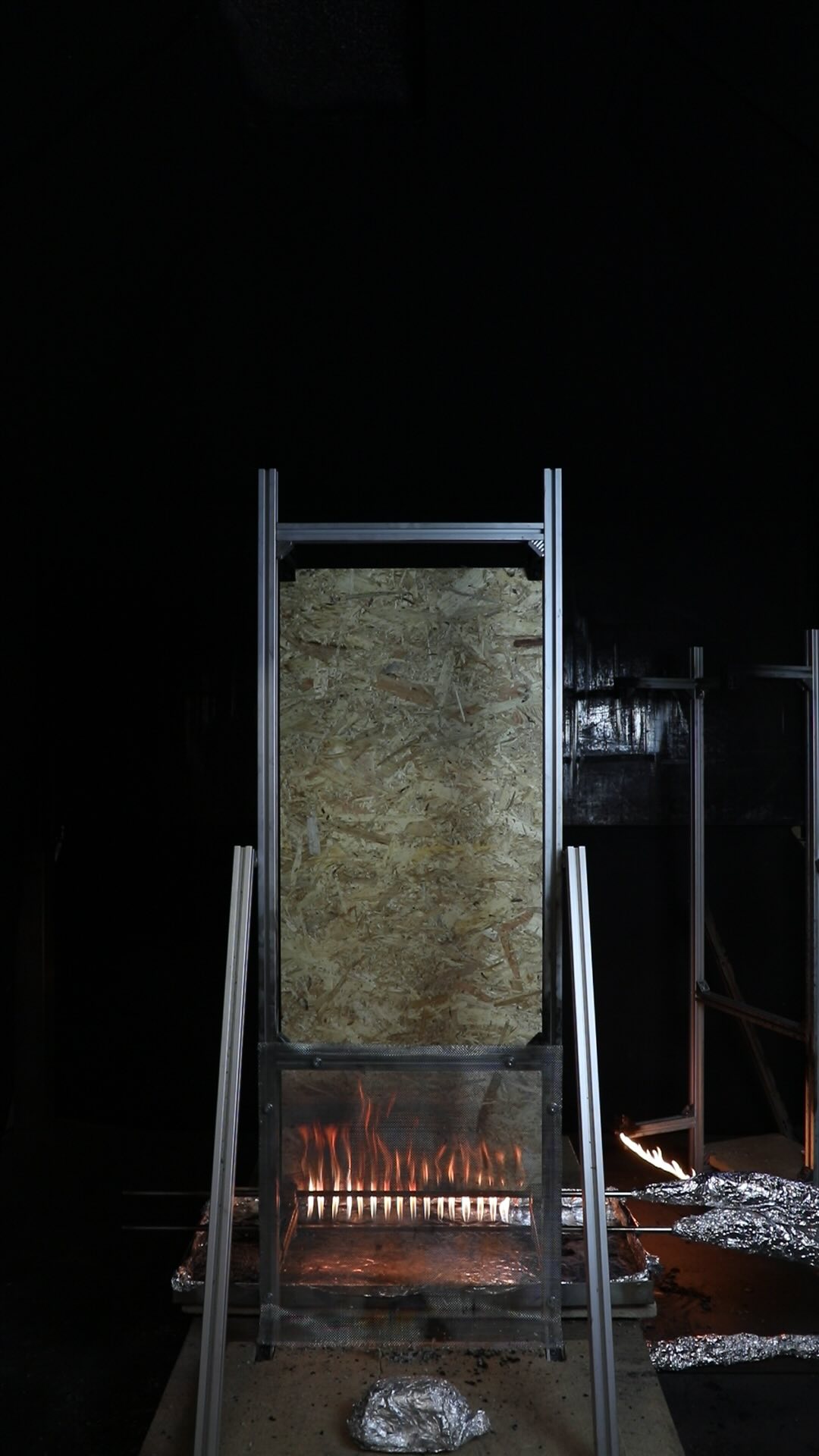

This experiment is on a system consisting of an Oriented Strand Board (OSB) cladding panel alone, with no insulation panel. It is the second repetition of this system configuration.
Experiment Notes

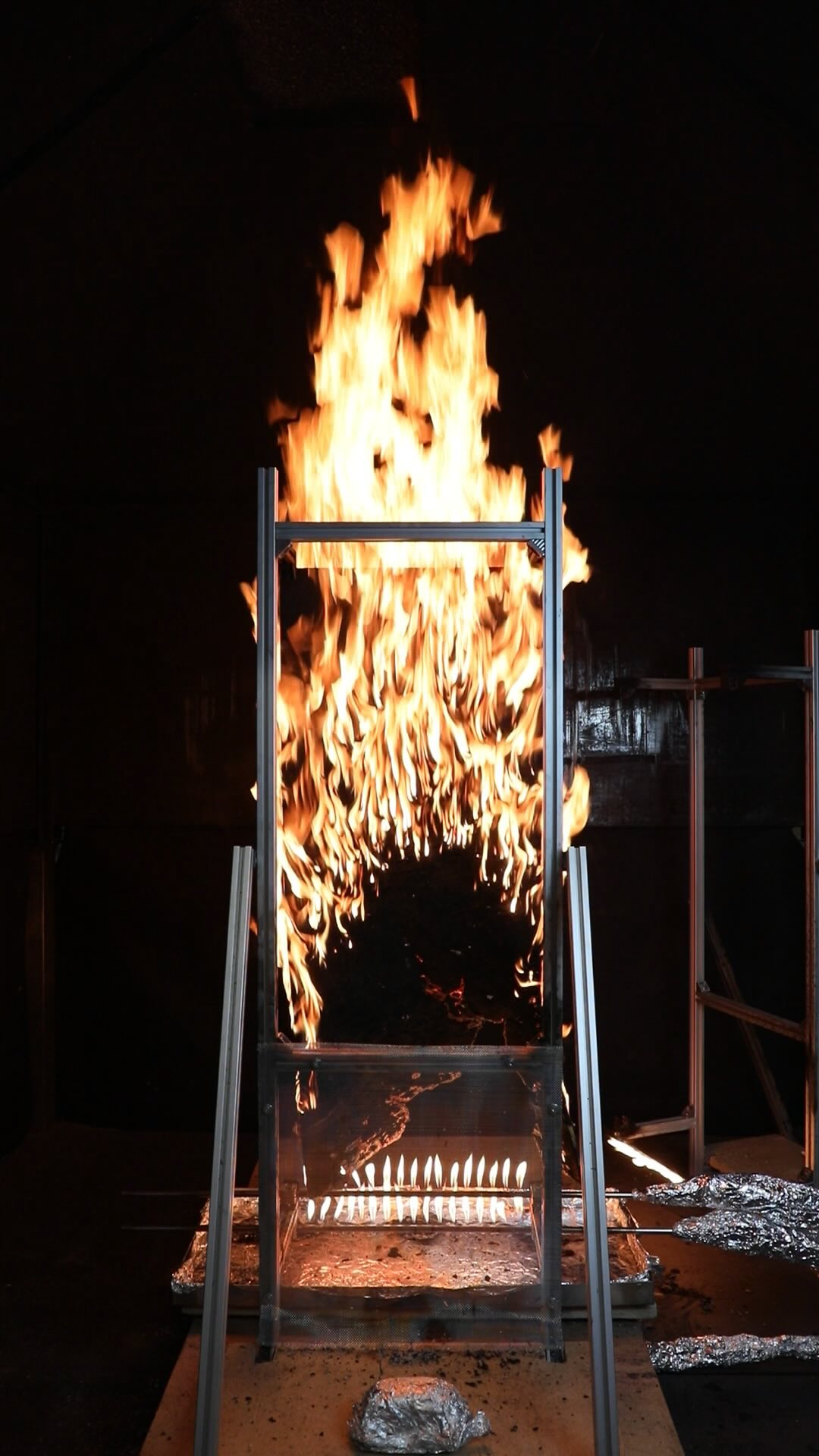

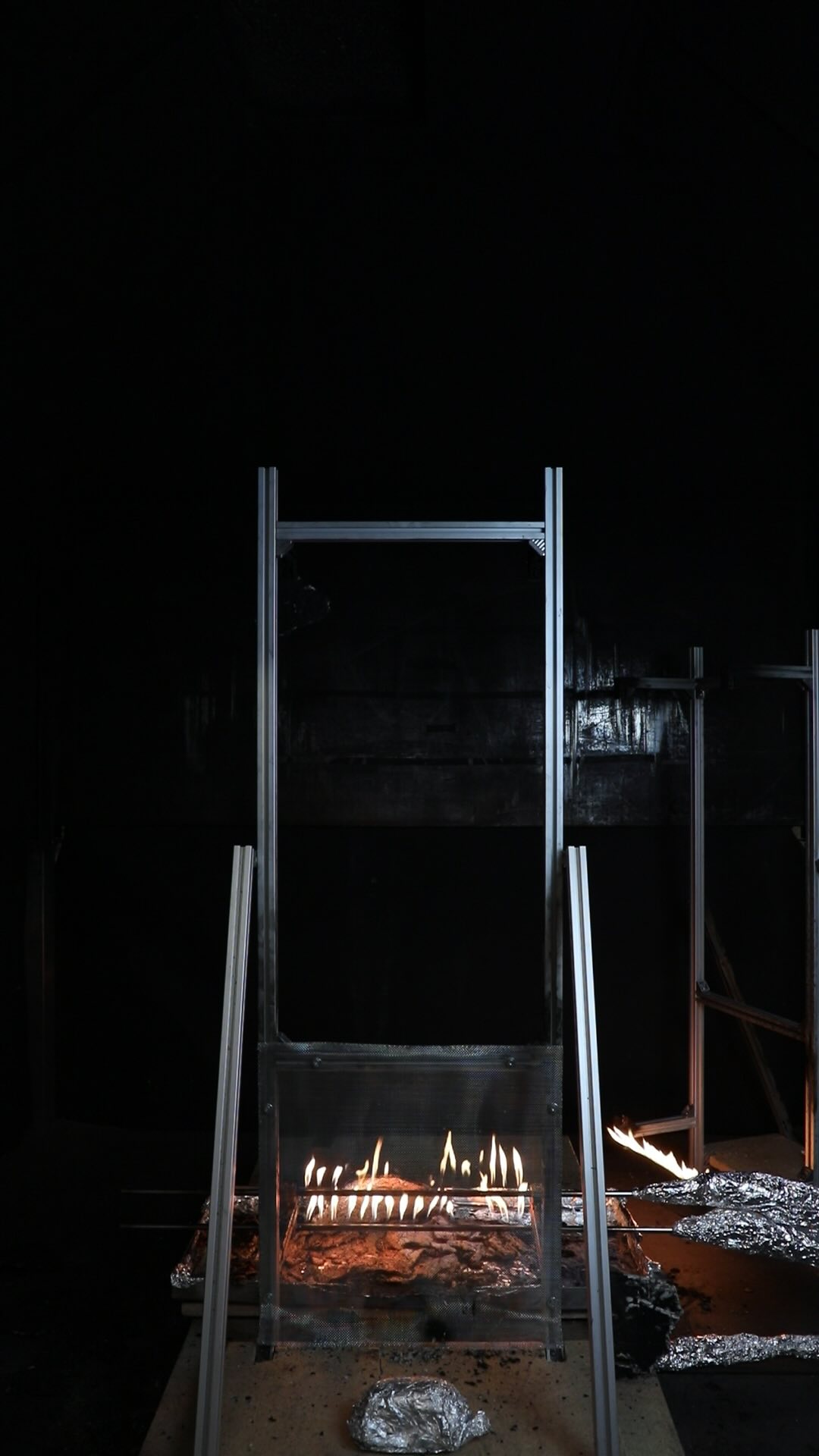

At approximately 11 minutes the OSB panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly.
Test Details
| Cladding | Oriented Strand Board (OSB) |
| Cladding Thickness [mm] | 11 |
| Insulation | No insulation |
| Insulation thickness [mm] | |
| Cavity width [mm] | |
| Repetition number | 2 |
Metrics
| Peak HRR [kW] | 123 |
| Time to Peak HRR [mins] | 10.33 |
| Total HR [MJ] | 48.3 |
| Peak dQ/dt [kW/s] | 0.468 |
| Time to Peak dQ/dt [mins] | 9.23 |
| Residual HRR [kW] | 8.5 |
Video
HRR [kW] including burner baseline
Minutes
30
