OSB, PIR, rep 1
Oriented Strand Board (OSB)
Description

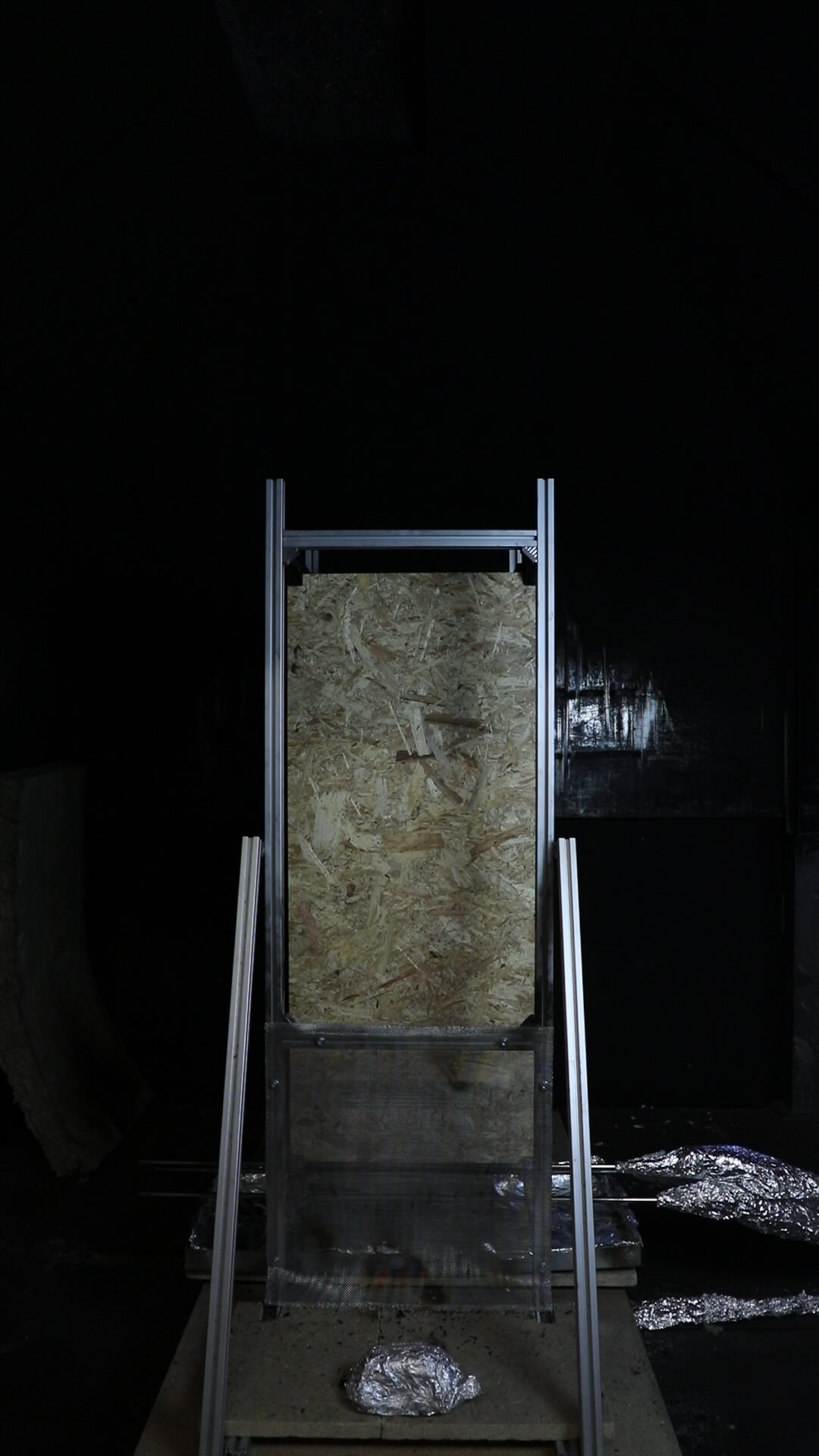

This experiment is on a system consisting of an Oriented Strand Board (OSB) cladding panel and a Polyisocyanurate (PIR) foam insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes

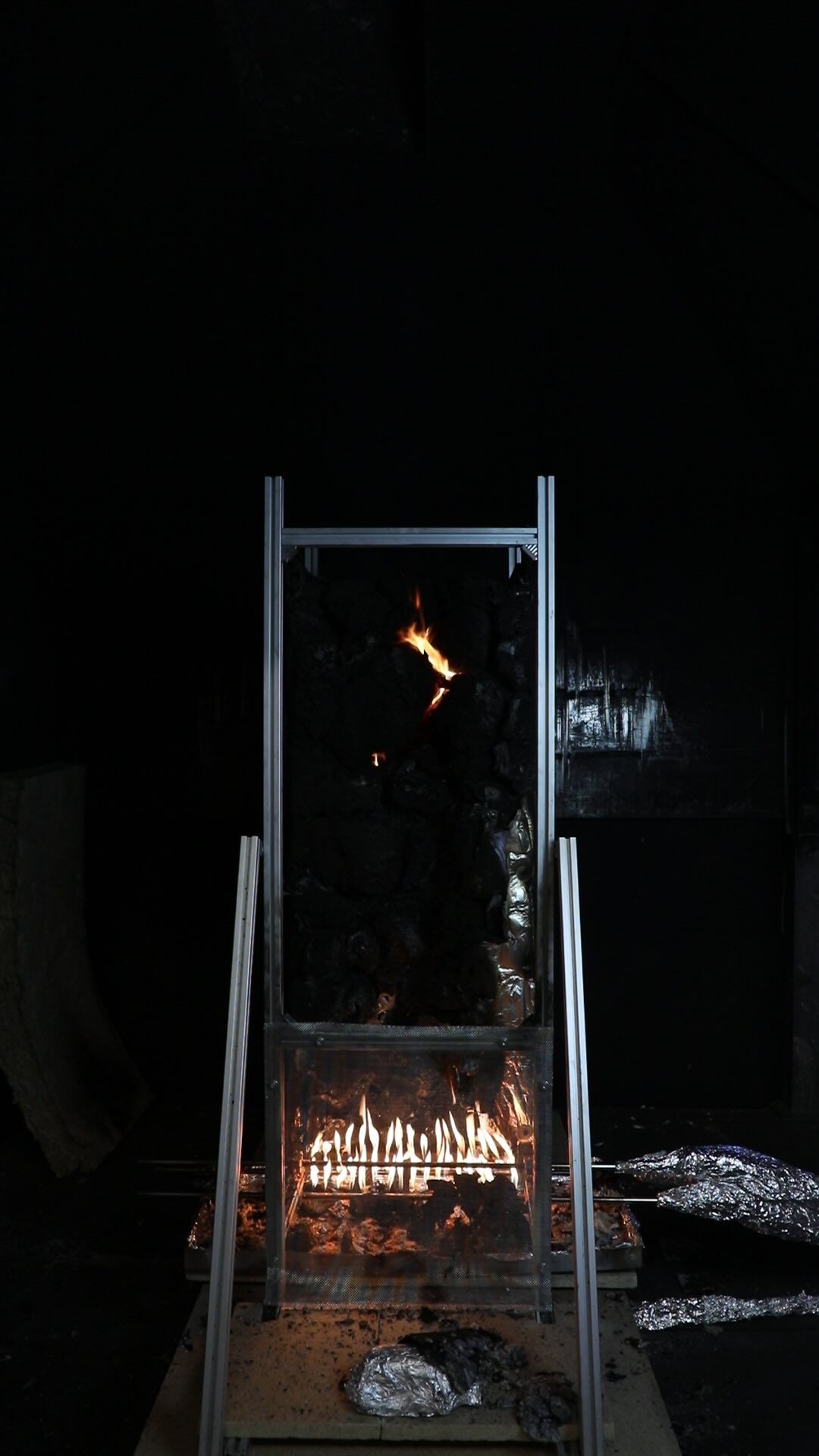

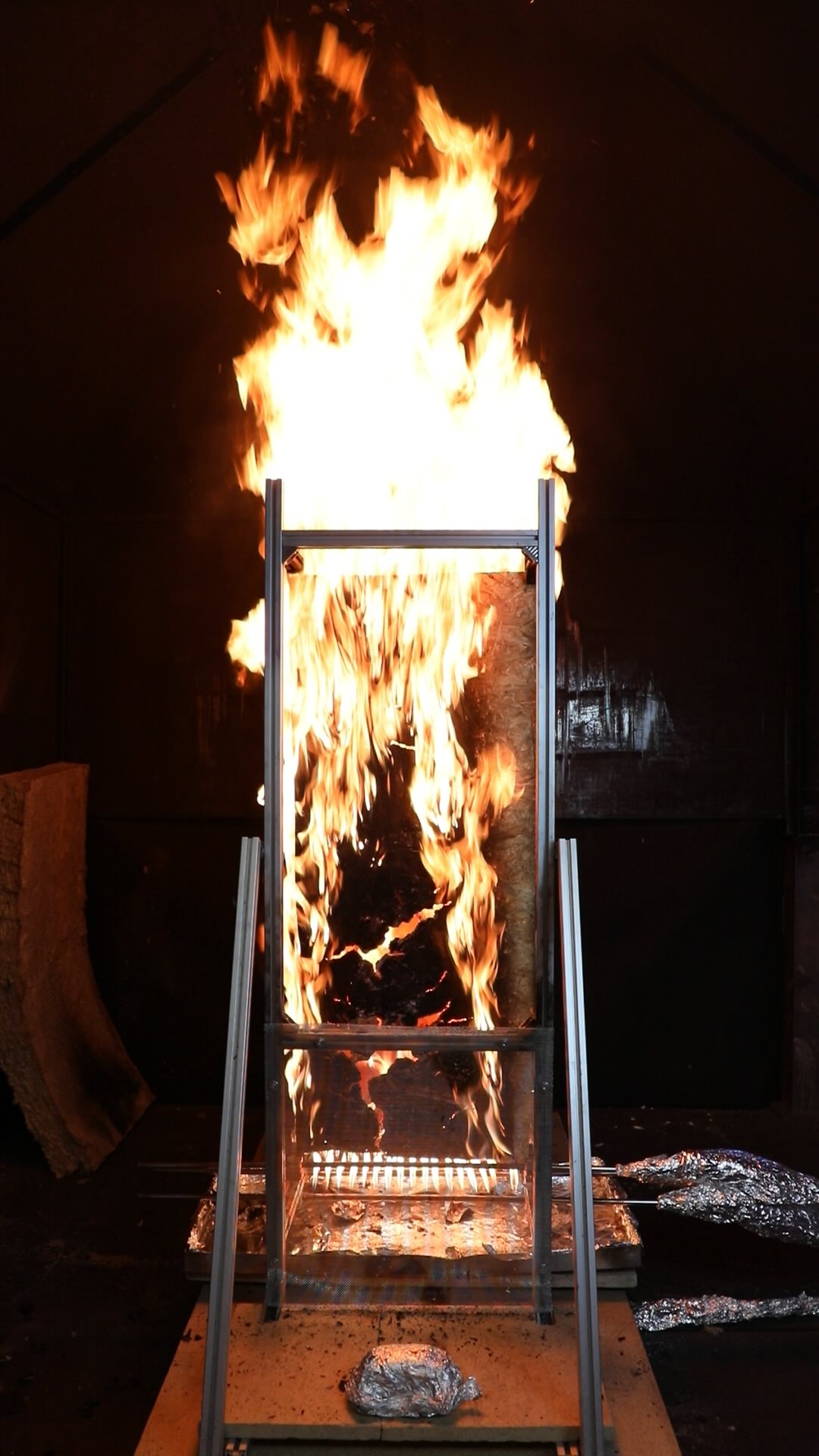

At approximately 6 minutes the OSB panel began to touch the insulation panel, affecting the mass measurements. At approximately 8 minutes the OSB panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly.
Test Details
| Cladding | Oriented Strand Board (OSB) |
| Cladding Thickness [mm] | 11 |
| Insulation | Polyisocyanurate (PIR) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 212 |
| Time to Peak HRR [mins] | 5.97 |
| Total HR [MJ] | 83.7 |
| Peak dQ/dt [kW/s] | 1.26 |
| Time to Peak dQ/dt [mins] | 3.02 |
| Residual HRR [kW] | 10.8 |
Video
HRR [kW] including burner baseline
Minutes
30
