Ply, MW, rep 3
Plywood
Description

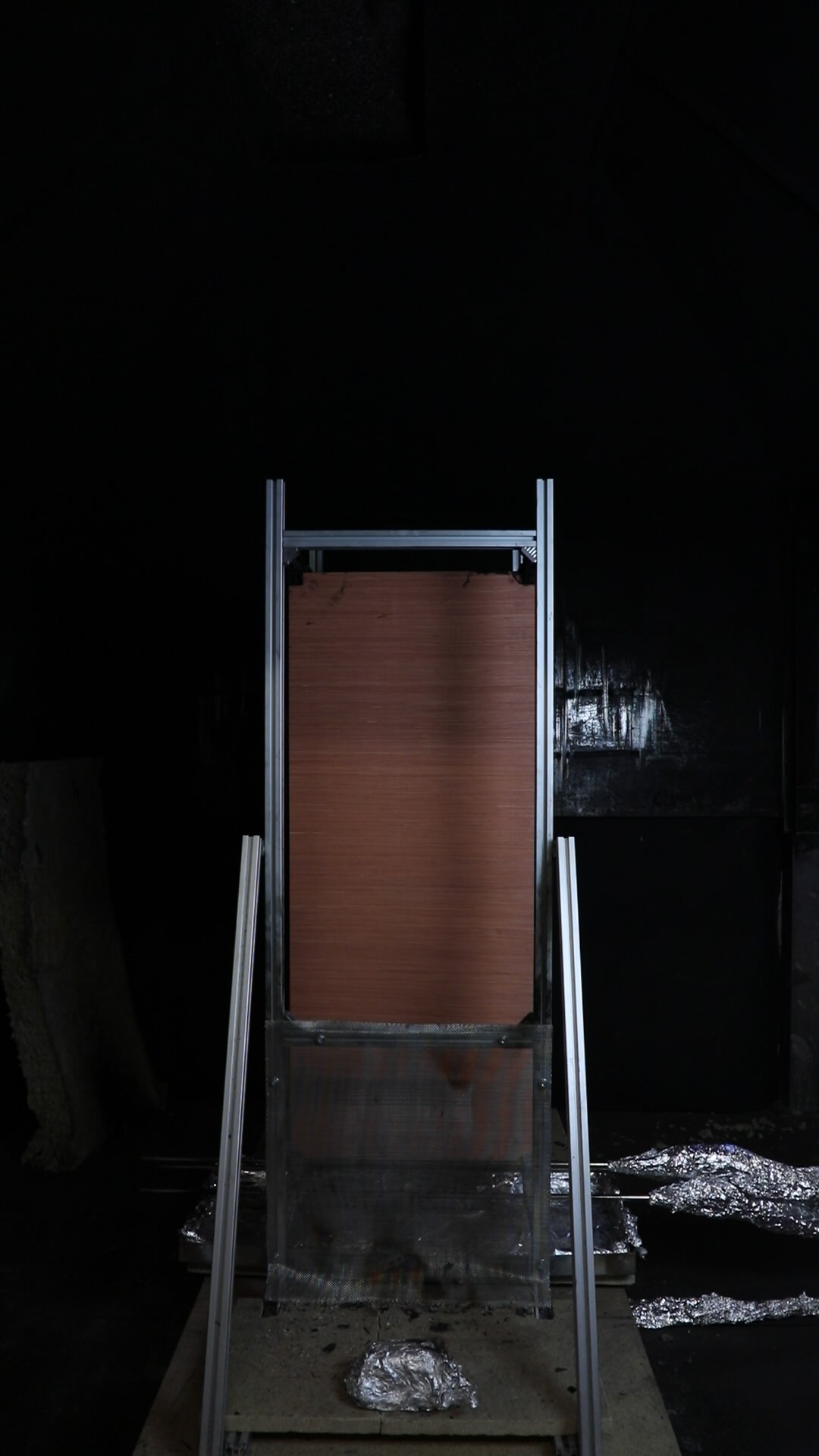

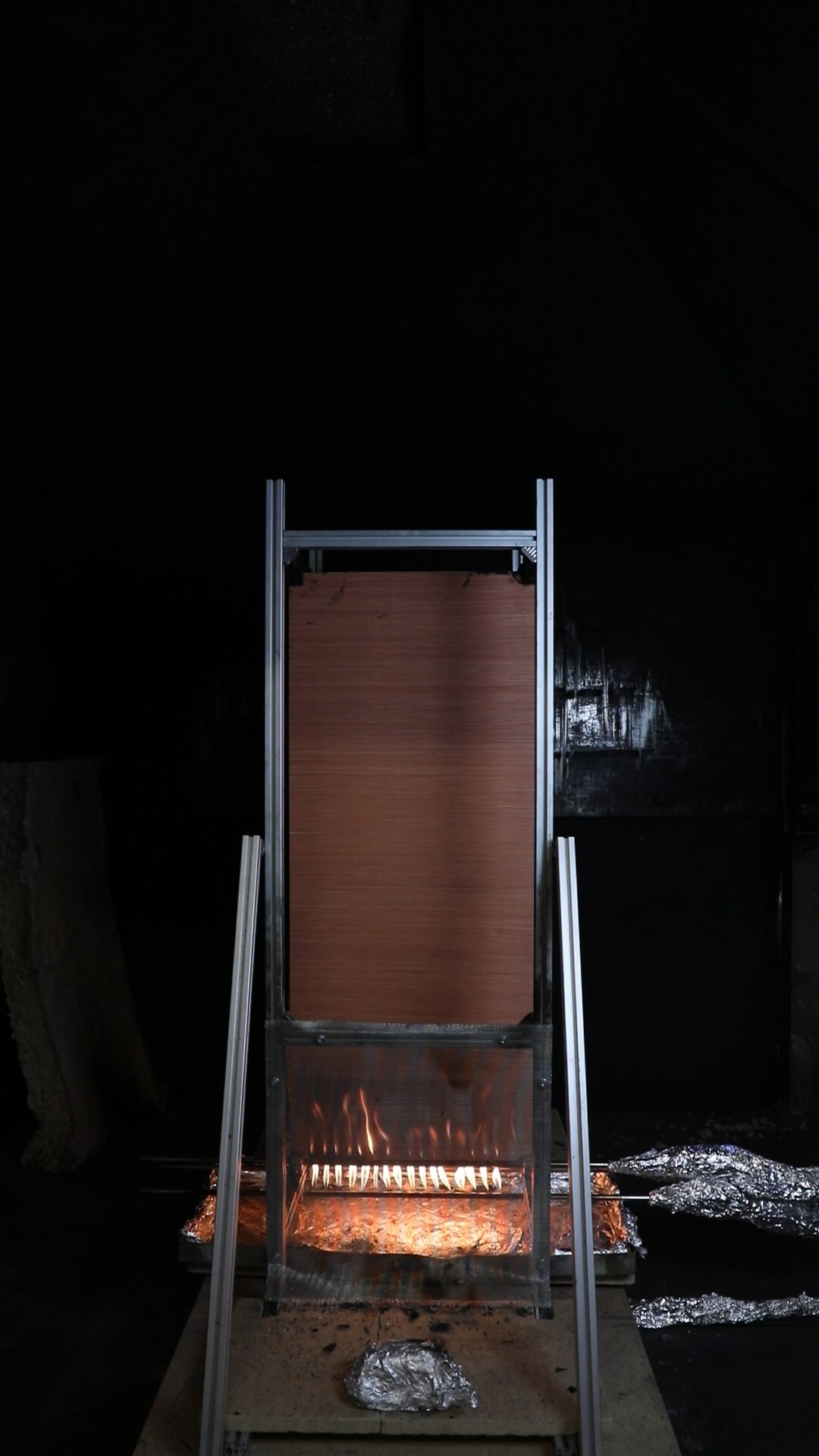

This experiment is on a system consisting of a Plywood cladding panel and a Mineral Wool (MW) insulation panel, separated with a cavity of 50 mm width. It is the third repetition of this system configuration.
Experiment Notes

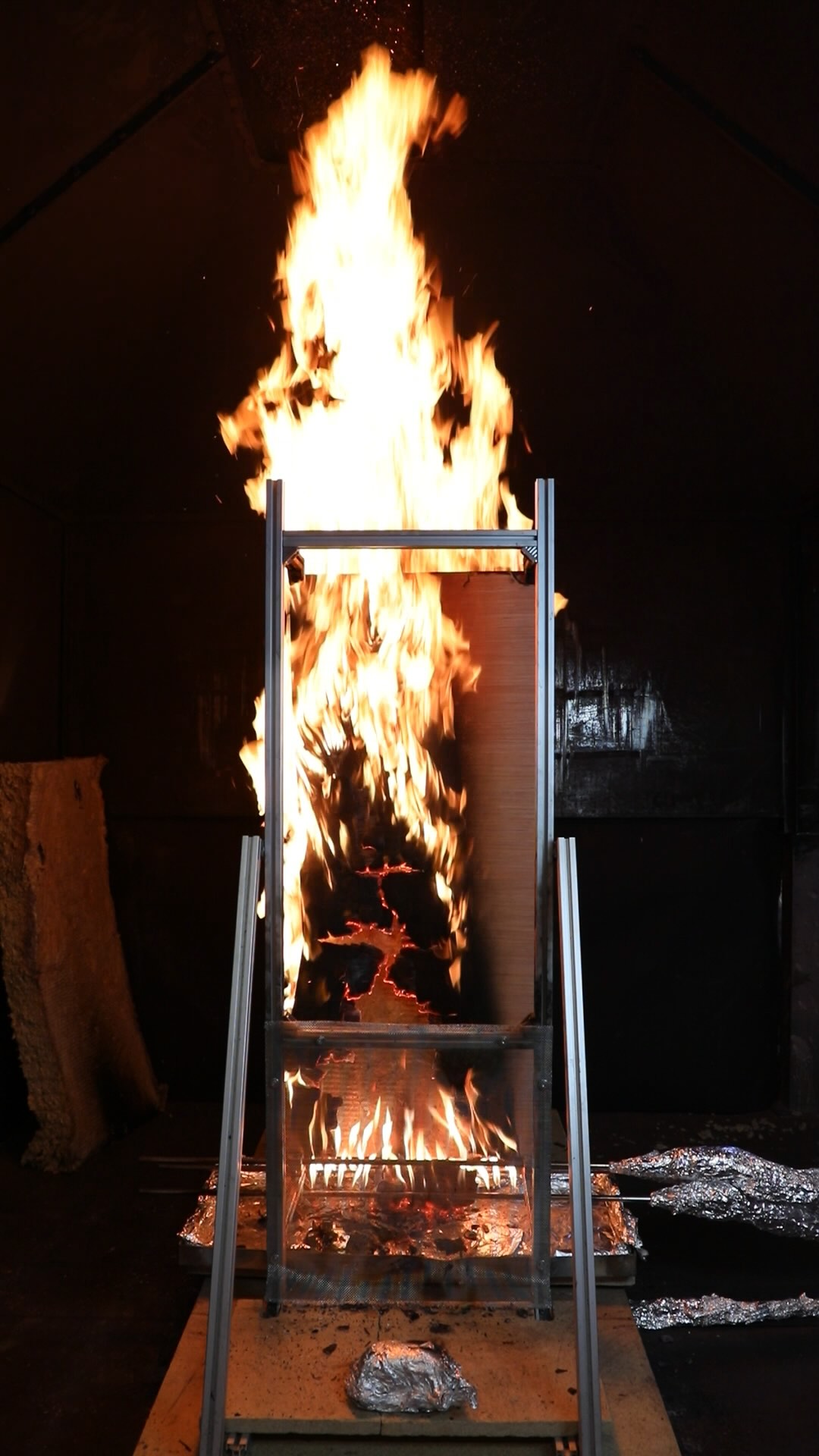

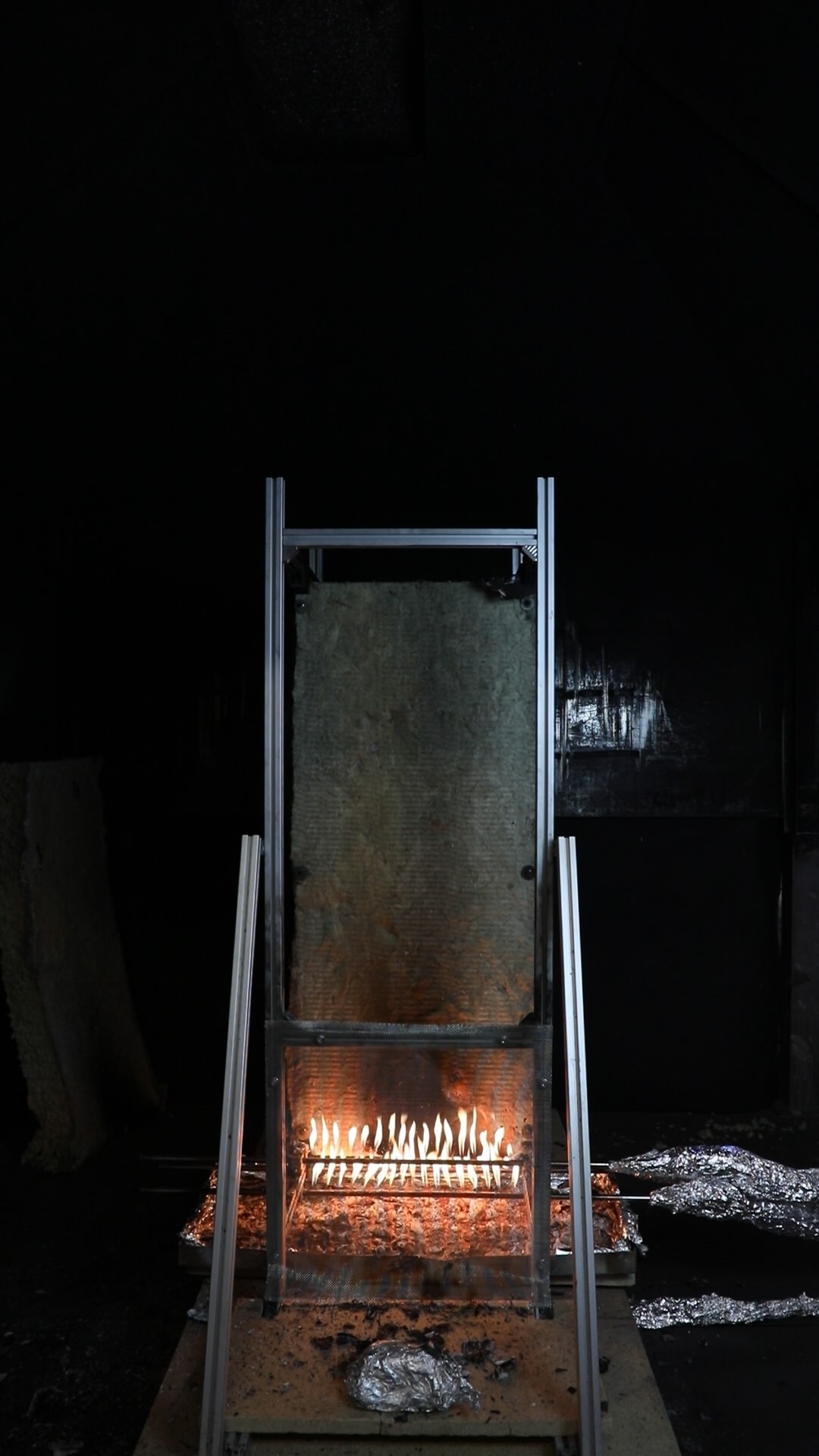

At approximately 6 minutes the plywood panel began to touch the insulation panel, affecting the mass measurements. At approximately 7 minutes the plywood panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly.
Test Details
| Cladding | Plywood |
| Cladding Thickness [mm] | 12 |
| Insulation | Mineral Wool (MW) |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 3 |
Metrics
| Peak HRR [kW] | 171 |
| Time to Peak HRR [mins] | 6.98 |
| Total HR [MJ] | 60.7 |
| Peak dQ/dt [kW/s] | 1.49 |
| Time to Peak dQ/dt [mins] | 5 |
| Residual HRR [kW] | 4.56 |
Video
HRR [kW] including burner baseline
Minutes
30
