AL, MW, rep 3
Aluminium
Description

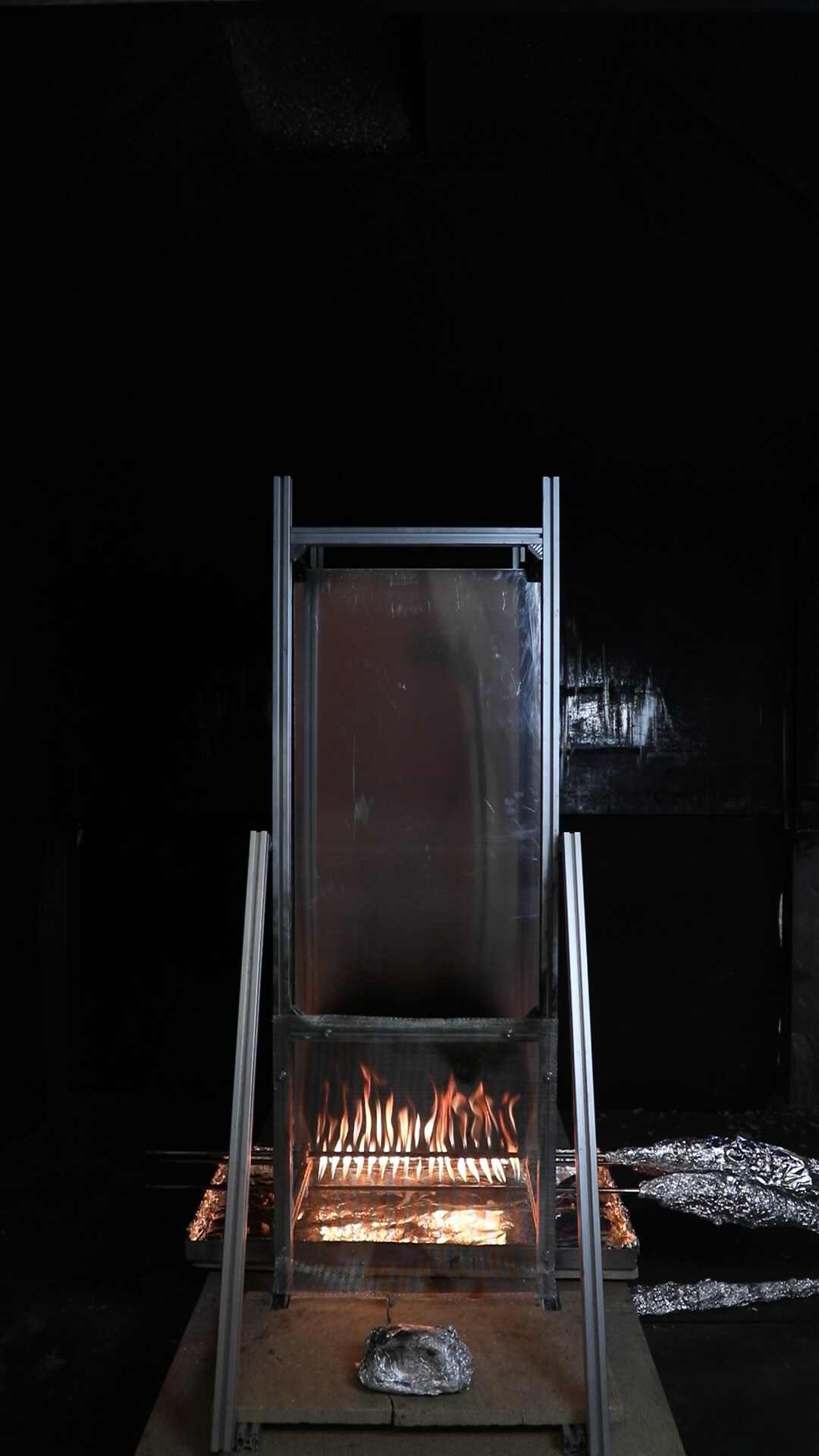

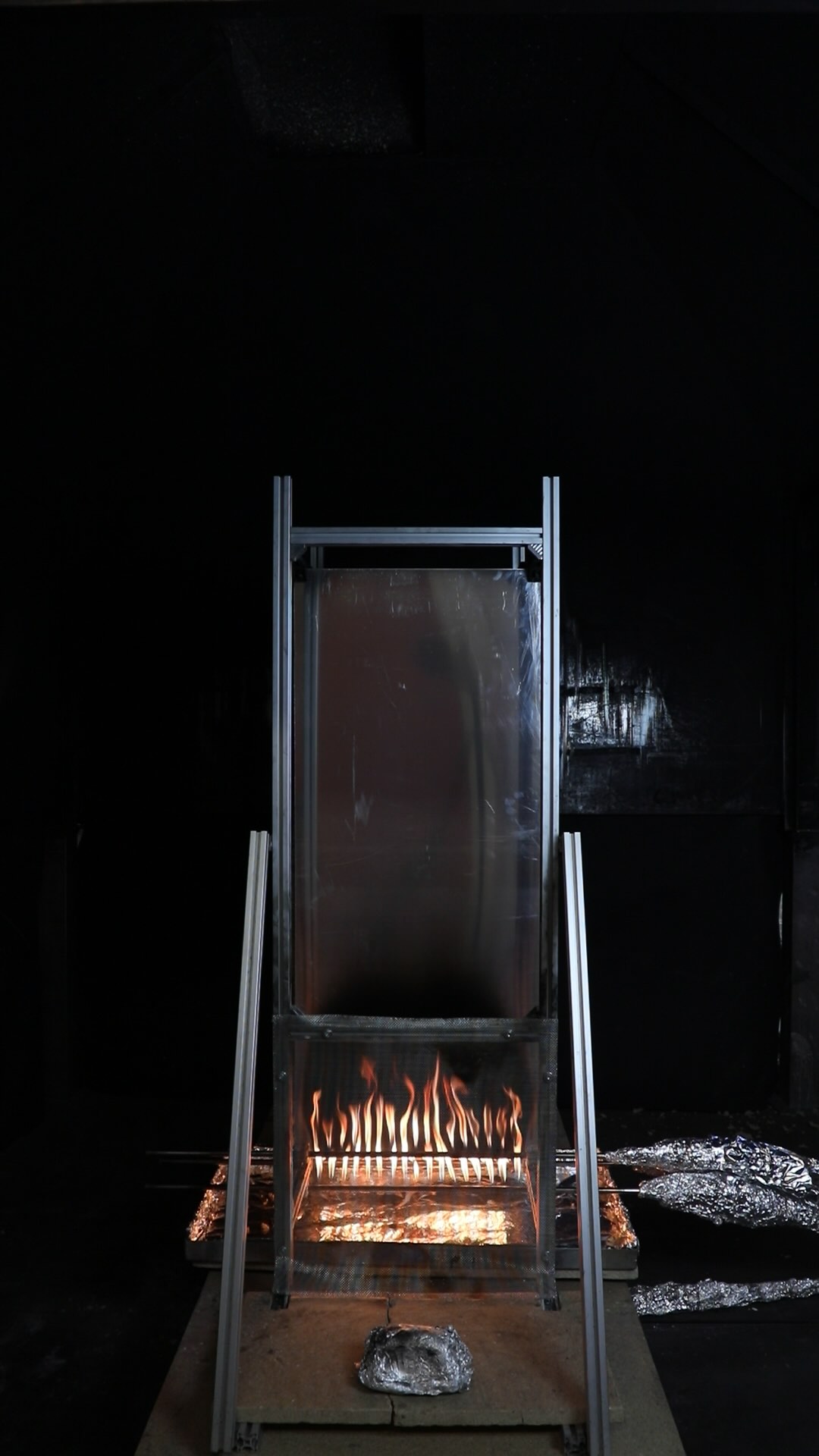

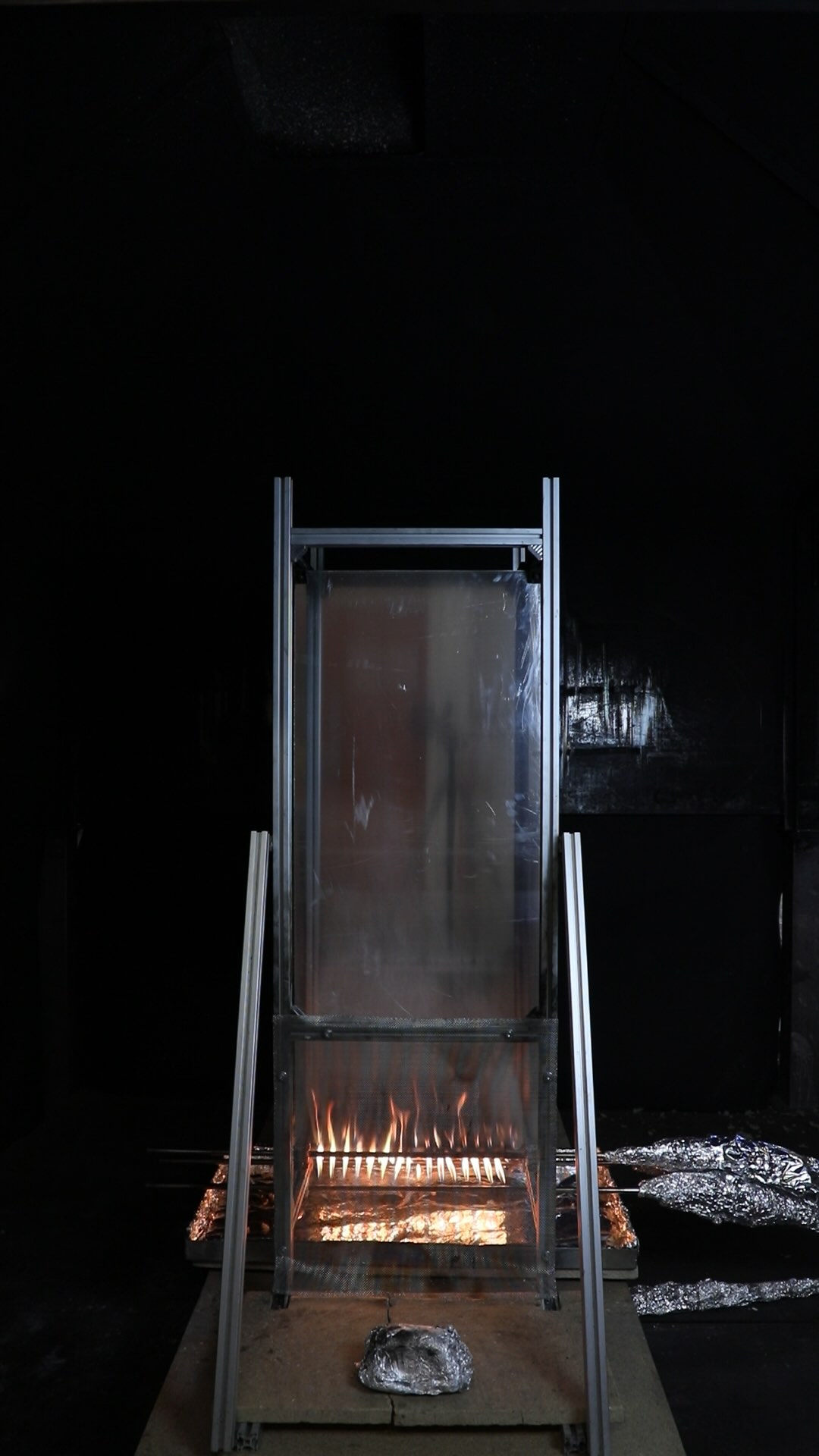

This experiment is on a system consisting of an Aluminium cladding panel and a Mineral Wool (MW) insulation panel, separated with a cavity of 50 mm width. It is the third repetition of this system configuration.
Experiment Notes
There were no noticable observations for this test.
Test Details
| Cladding | Aluminium |
| Cladding Thickness [mm] | 2 |
| Insulation | Mineral Wool (MW) |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 3 |
Metrics
| Peak HRR [kW] | 0 |
| Time to Peak HRR [mins] | |
| Total HR [MJ] | 0 |
| Peak dQ/dt [kW/s] | 0 |
| Time to Peak dQ/dt [mins] | |
| Residual HRR [kW] | 1.88 |
Video
HRR [kW] including burner baseline
Minutes
30
