AL, PIR, rep 1
Aluminium
Description

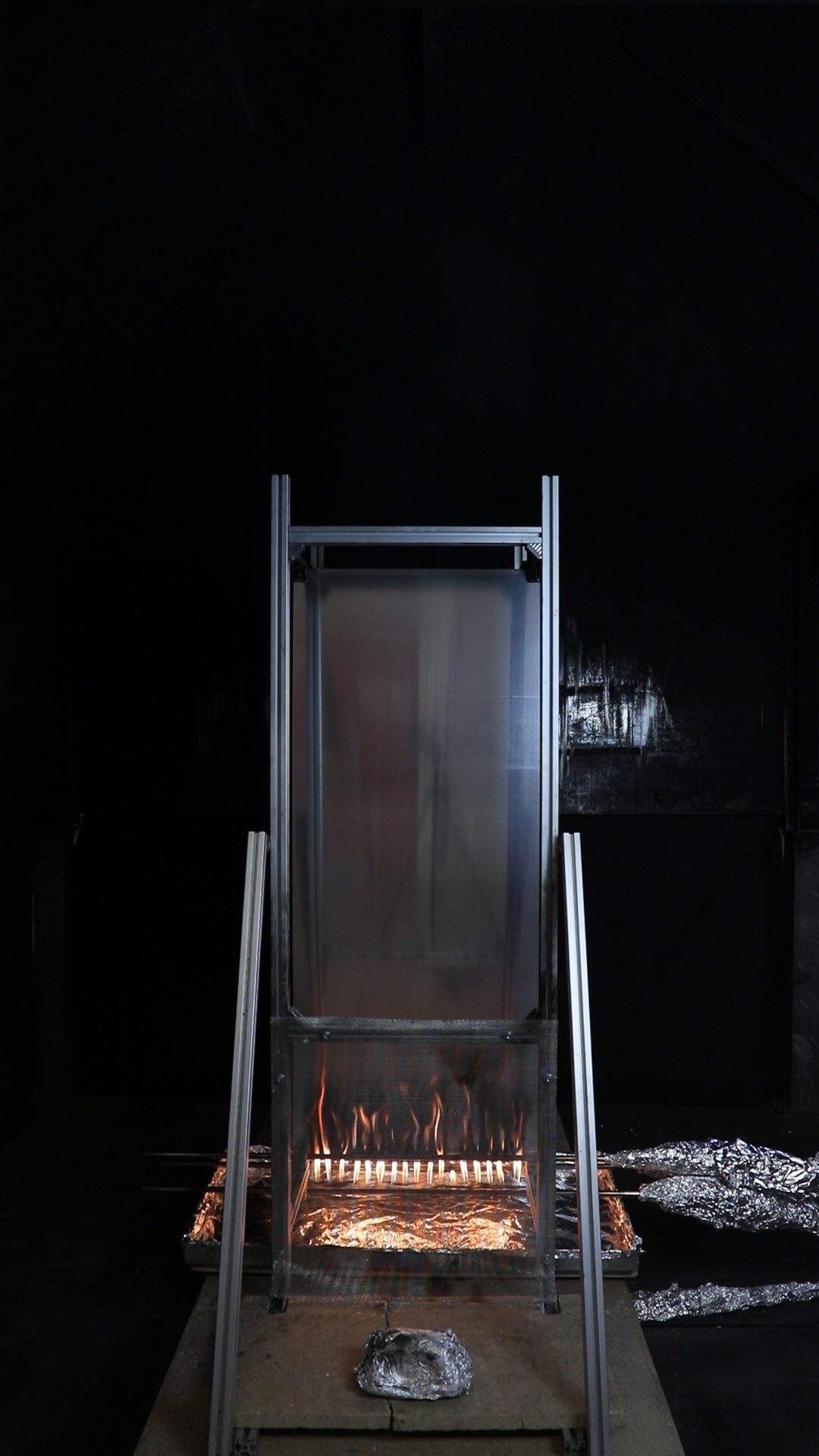

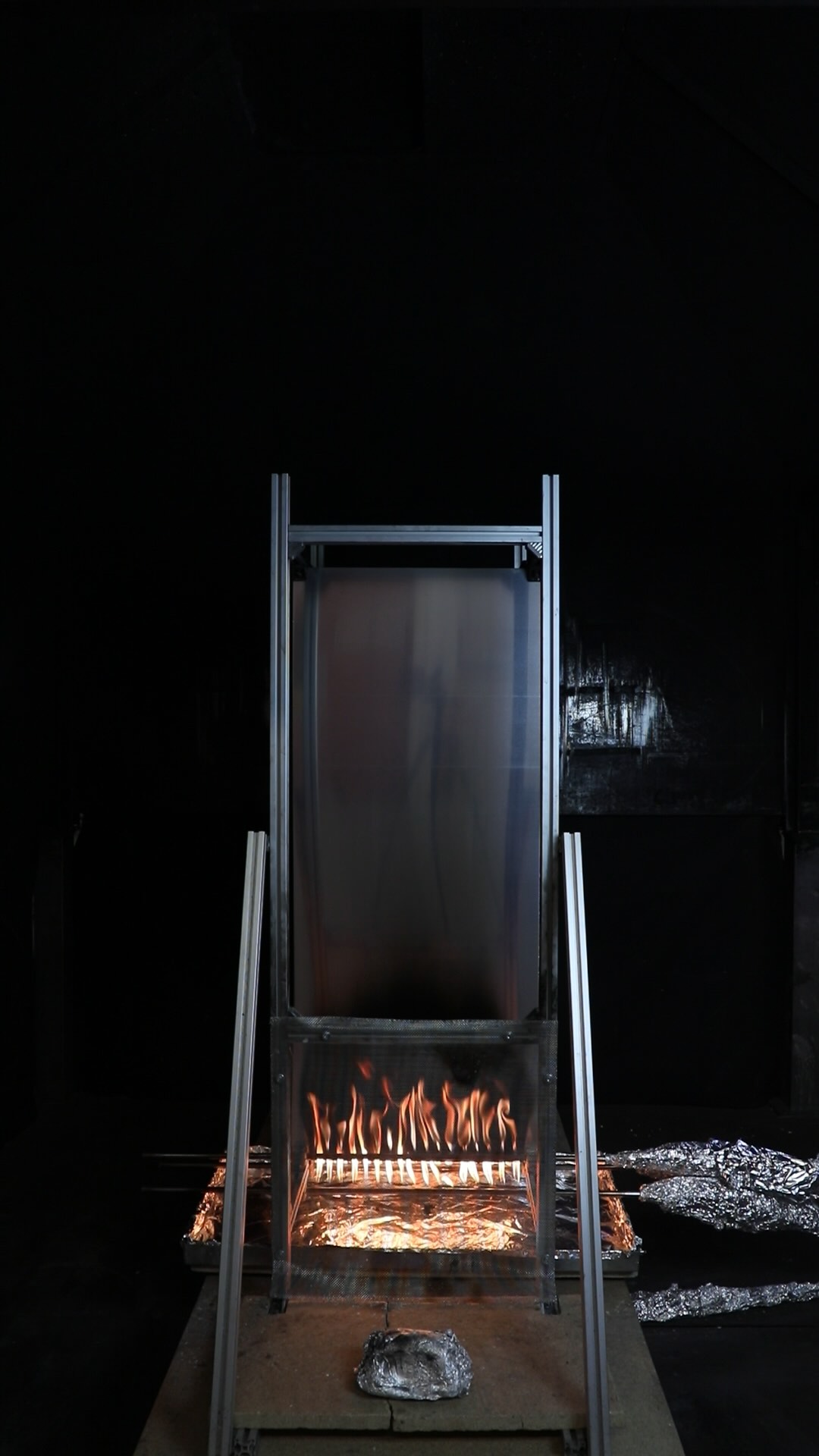

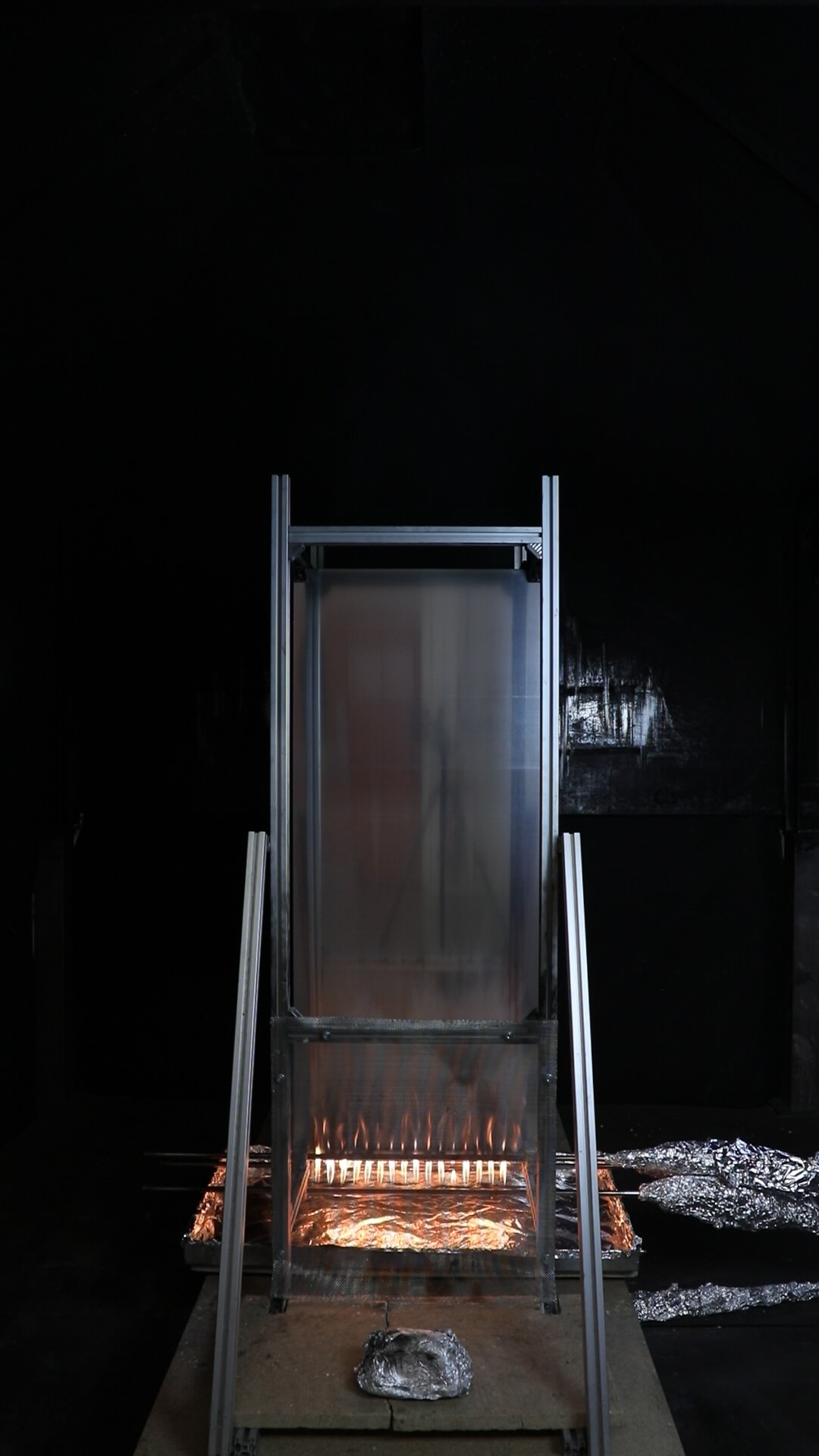

This experiment is on a system consisting of an Aluminium cladding panel and a Polyisocyanurate (PIR) foam insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes
At approximately 11 minutes the aluminium panel began to touch the insulation panel, affecting the mass measurements.
Test Details
| Cladding | Aluminium |
| Cladding Thickness [mm] | 2 |
| Insulation | Polyisocyanurate (PIR) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 5.35 |
| Time to Peak HRR [mins] | 0.55 |
| Total HR [MJ] | 0.504 |
| Peak dQ/dt [kW/s] | 0.172 |
| Time to Peak dQ/dt [mins] | 1.05 |
| Residual HRR [kW] | 2.7 |
Video
HRR [kW] including burner baseline
Minutes
30
