ACM A2, MW, rep 1
Aluminium Composite Material (ACM) A2
Description

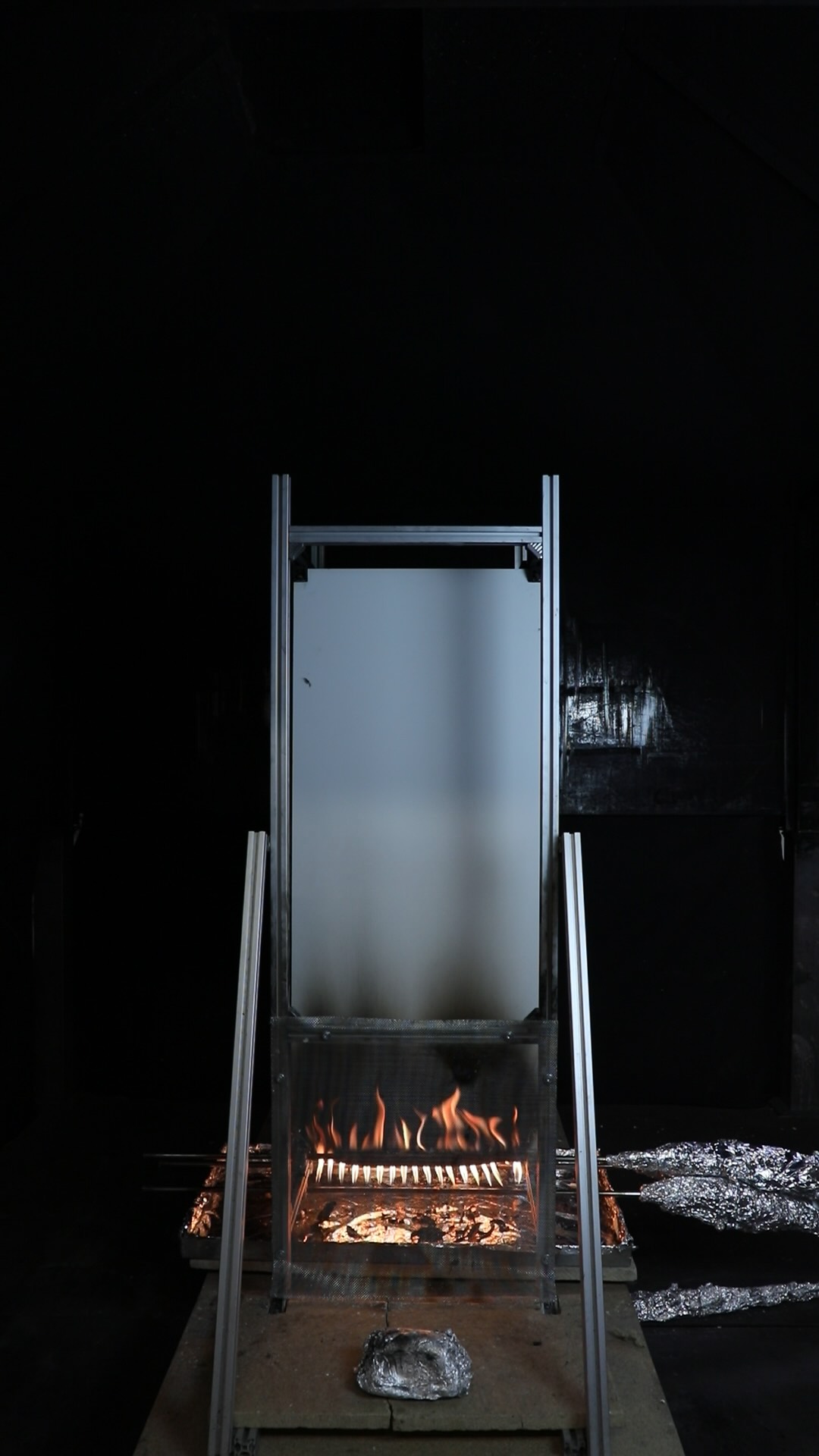

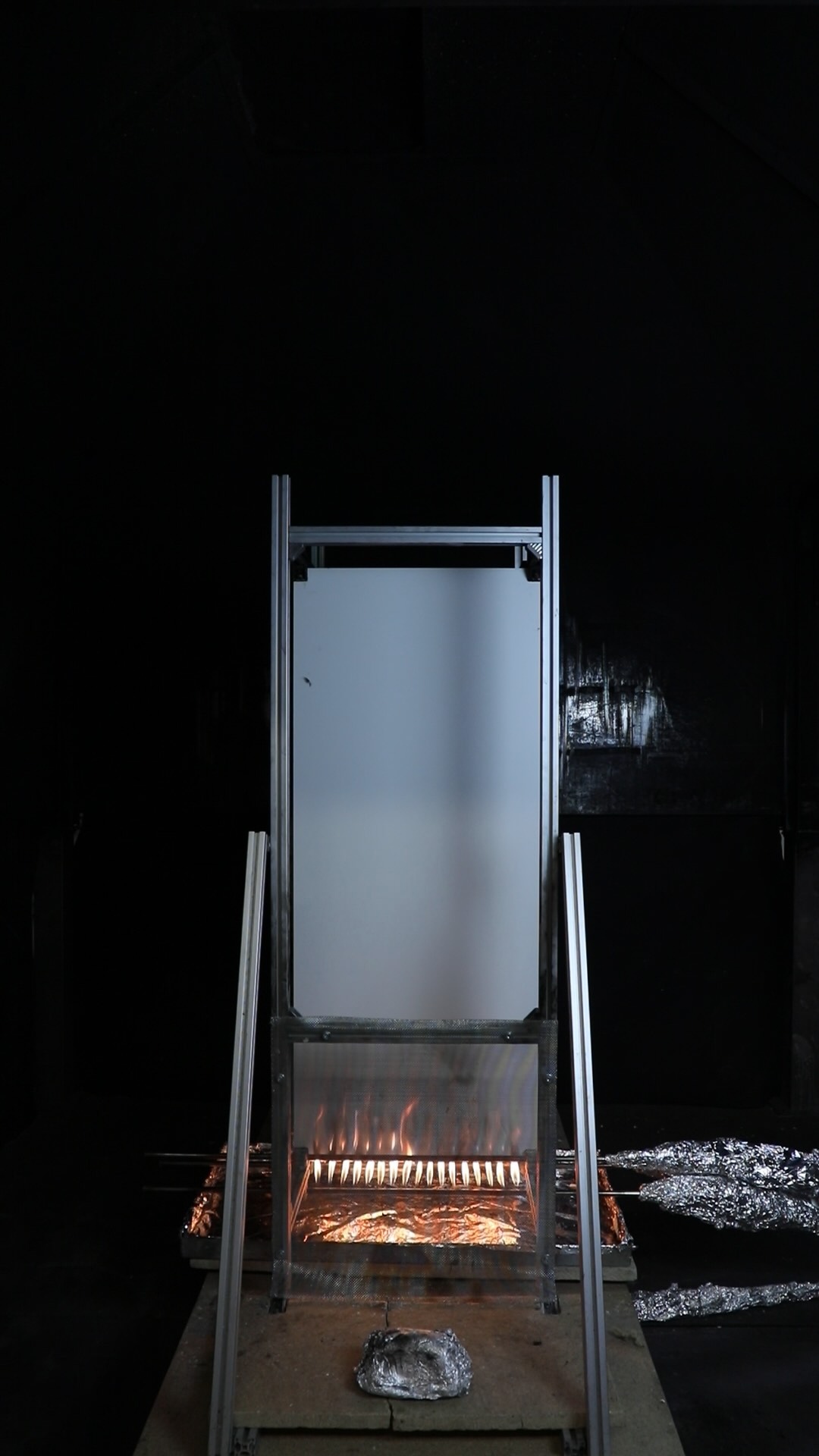

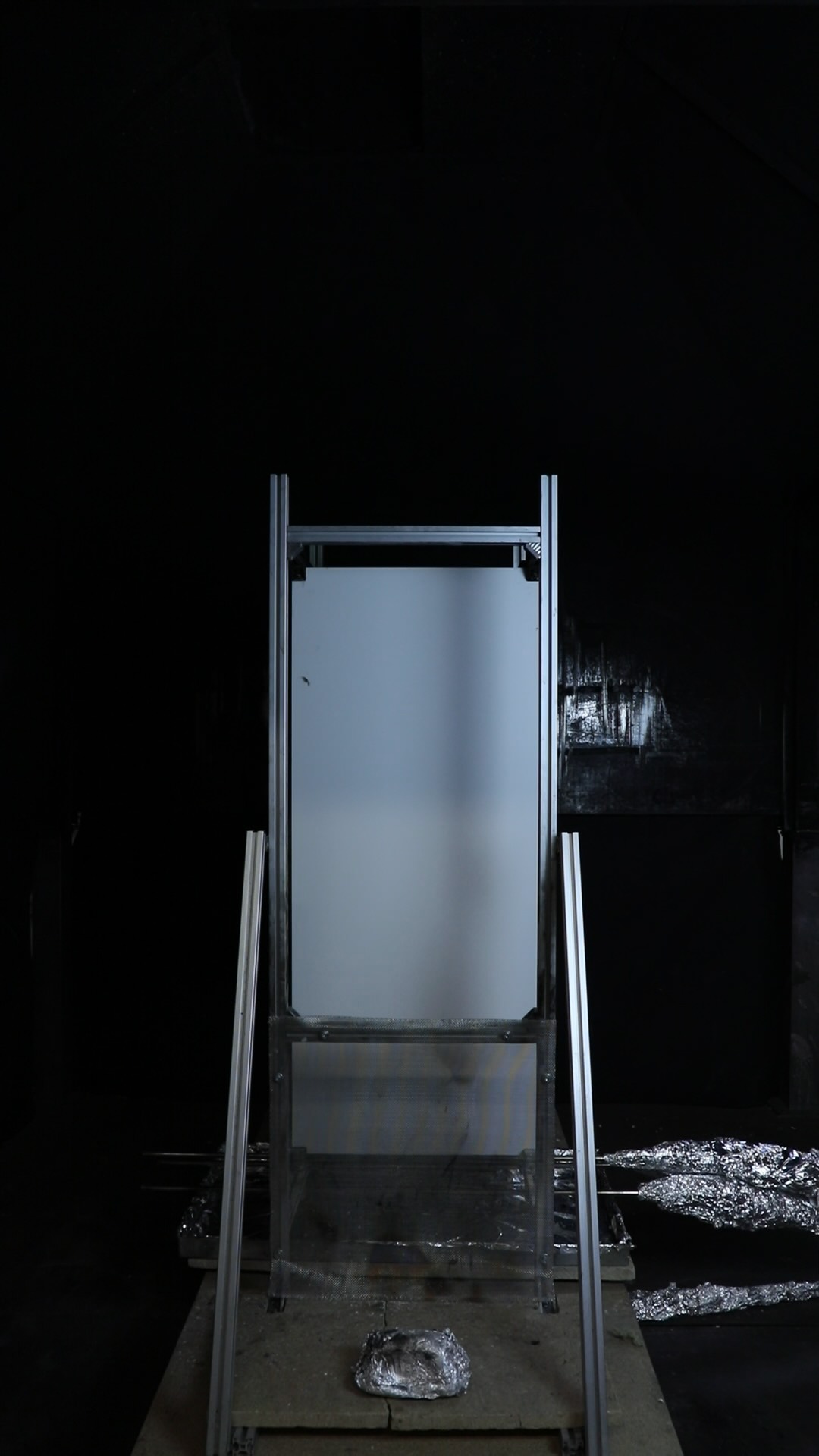

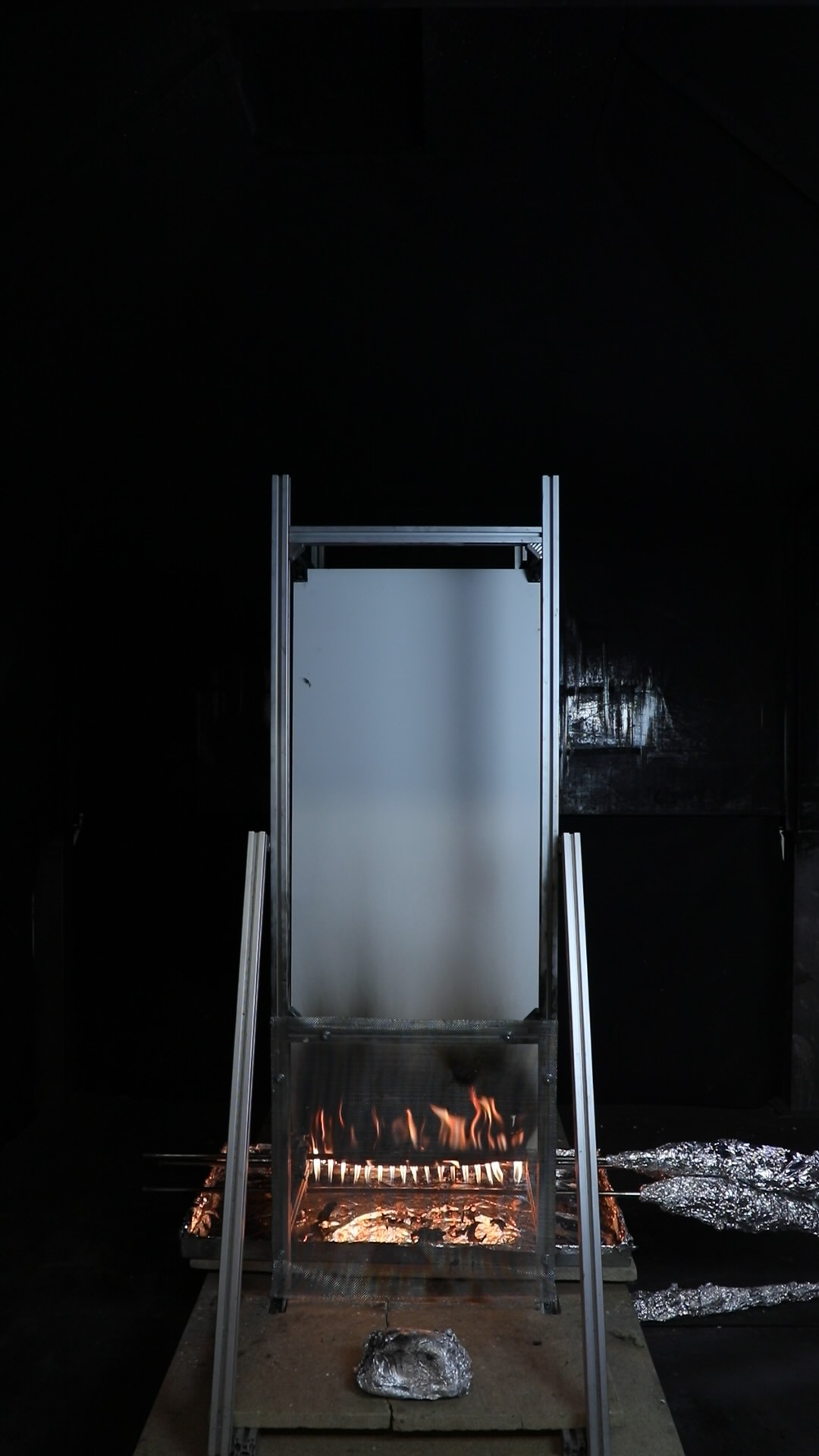

This experiment is on a system consisting of an Aluminium Composite Material (ACM) A2 cladding panel and a Mineral Wool (MW) insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes
There were no noticable observations for this test.
Test Details
| Cladding | Aluminium Composite Material (ACM) A2 |
| Cladding Thickness [mm] | 4 |
| Insulation | Mineral Wool (MW) |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 3.48 |
| Time to Peak HRR [mins] | 9.52 |
| Total HR [MJ] | 0.0845 |
| Peak dQ/dt [kW/s] | 0.0682 |
| Time to Peak dQ/dt [mins] | 10.1 |
| Residual HRR [kW] | 0.237 |
Video
HRR [kW] including burner baseline
Minutes
30
