HPL, PIR, rep 1
High Pressure Laminate (HPL)
Description

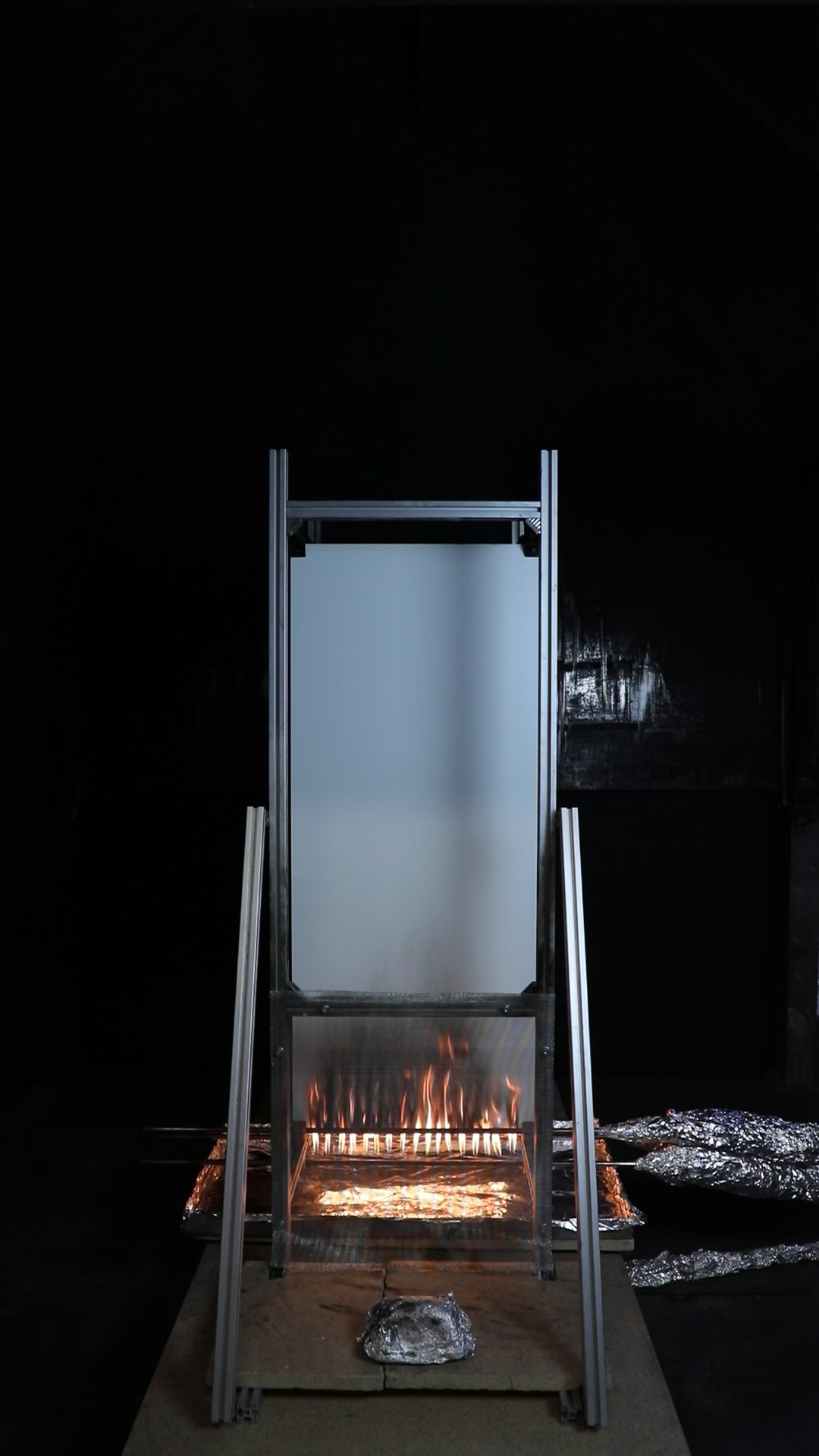

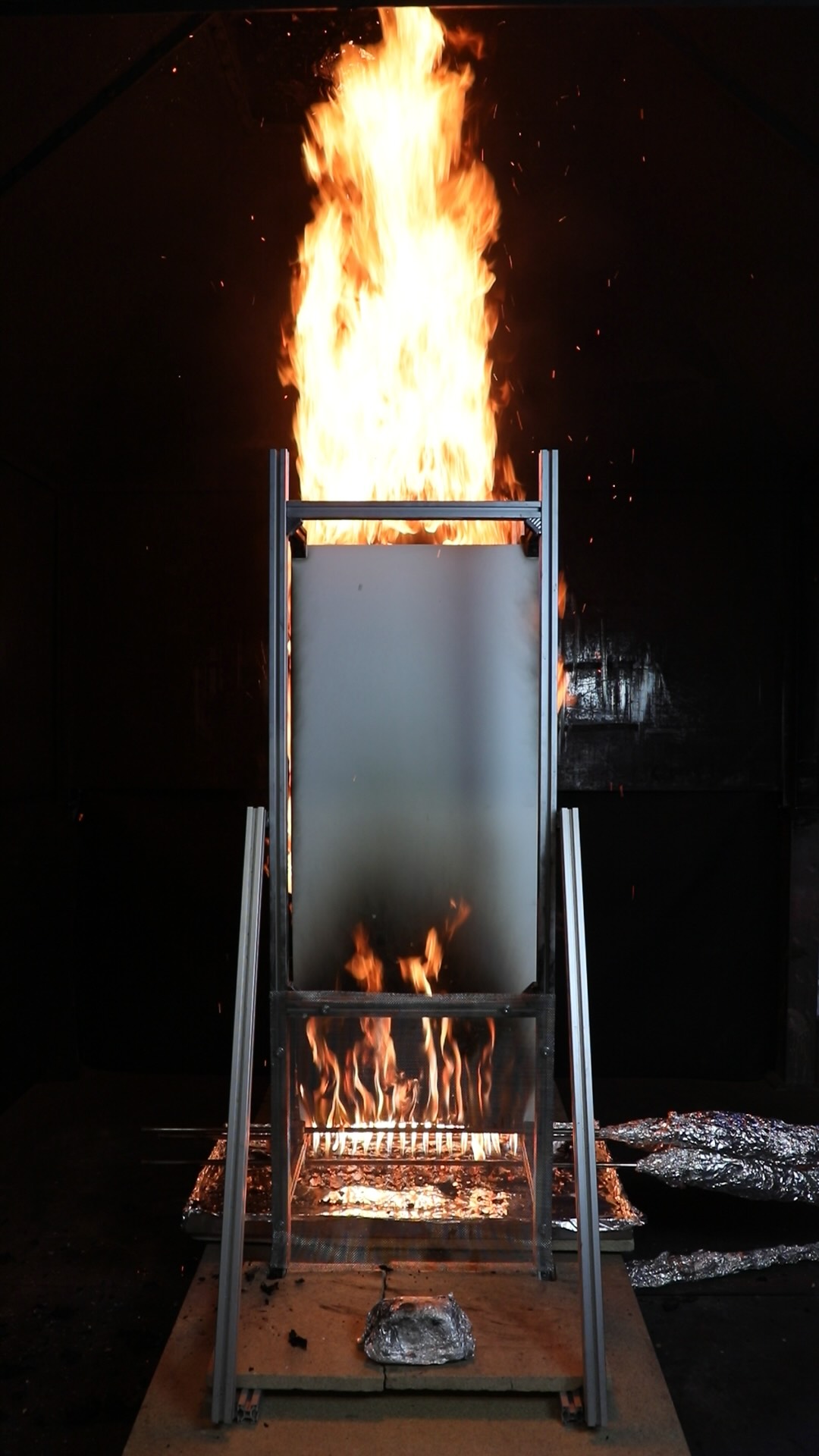

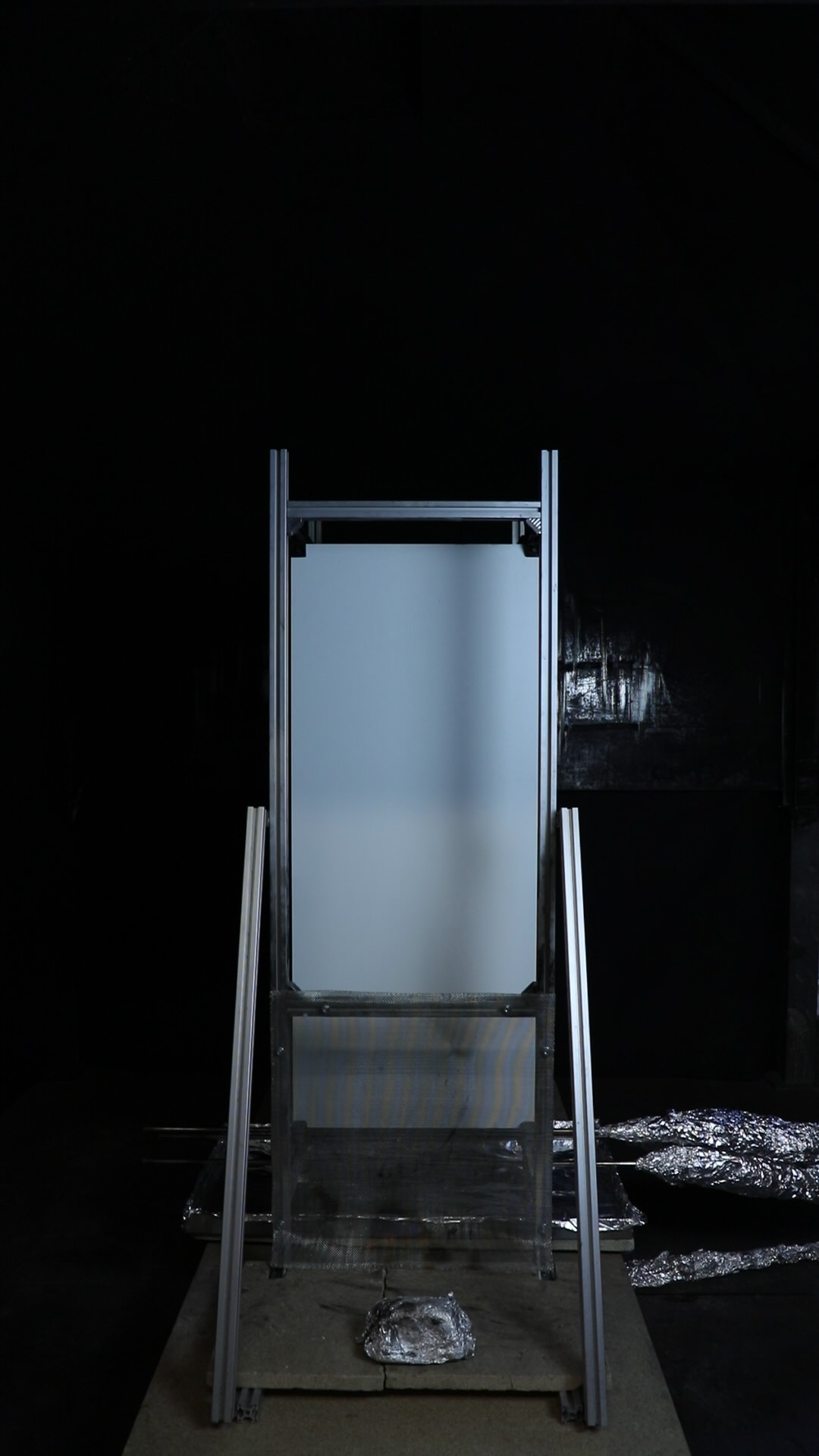

This experiment is on a system consisting of a High Pressure Laminate (HPL) cladding panel and a Polyisocyanurate (PIR) foam insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes

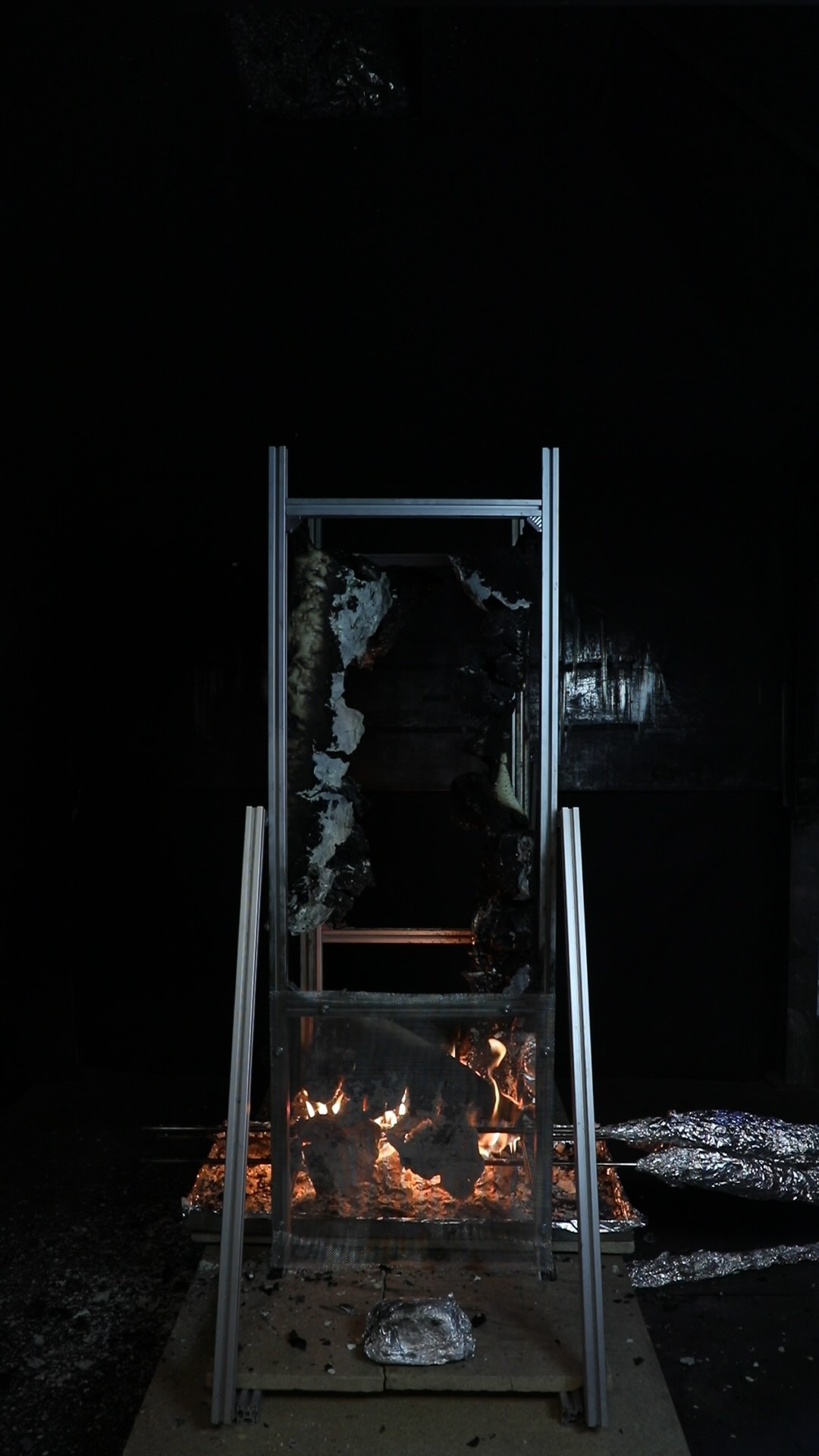

At approximately 7 minutes the HPL panel began to touch the insulation panel, affecting the mass measurements. At approximately 13 mins the cladding panel frame is seen to shift as the panel breaks.
Test Details
| Cladding | High Pressure Laminate (HPL) |
| Cladding Thickness [mm] | 8 |
| Insulation | Polyisocyanurate (PIR) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 147 |
| Time to Peak HRR [mins] | 6.68 |
| Total HR [MJ] | 119 |
| Peak dQ/dt [kW/s] | 1.13 |
| Time to Peak dQ/dt [mins] | 7.07 |
| Residual HRR [kW] | 19.3 |
Video
HRR [kW] including burner baseline
Minutes
30
