AL, PIR, rep 2

Aluminium

Description

This experiment is on a system consisting of an Aluminium cladding panel and a Polyisocyanurate (PIR) foam insulation panel, separated with a cavity of 50 mm width. It is the second repetition of this system configuration.

Experiment Notes

At approximately 20 minutes the aluminium panel began to touch the insulation panel, affecting the mass measurements.

Test Details
Cladding Aluminium
Cladding Thickness [mm] 2
Insulation Polyisocyanurate (PIR) foam
Insulation thickness [mm] 100
Cavity width [mm] 50
Repetition number 2
Metrics
Peak HRR [kW] 6.5
Time to Peak HRR [mins] 5.45
Total HR [MJ] 0.271
Peak dQ/dt [kW/s] 0.174
Time to Peak dQ/dt [mins] 0.98
Residual HRR [kW] 1.81
Test Pictures (click to zoom)

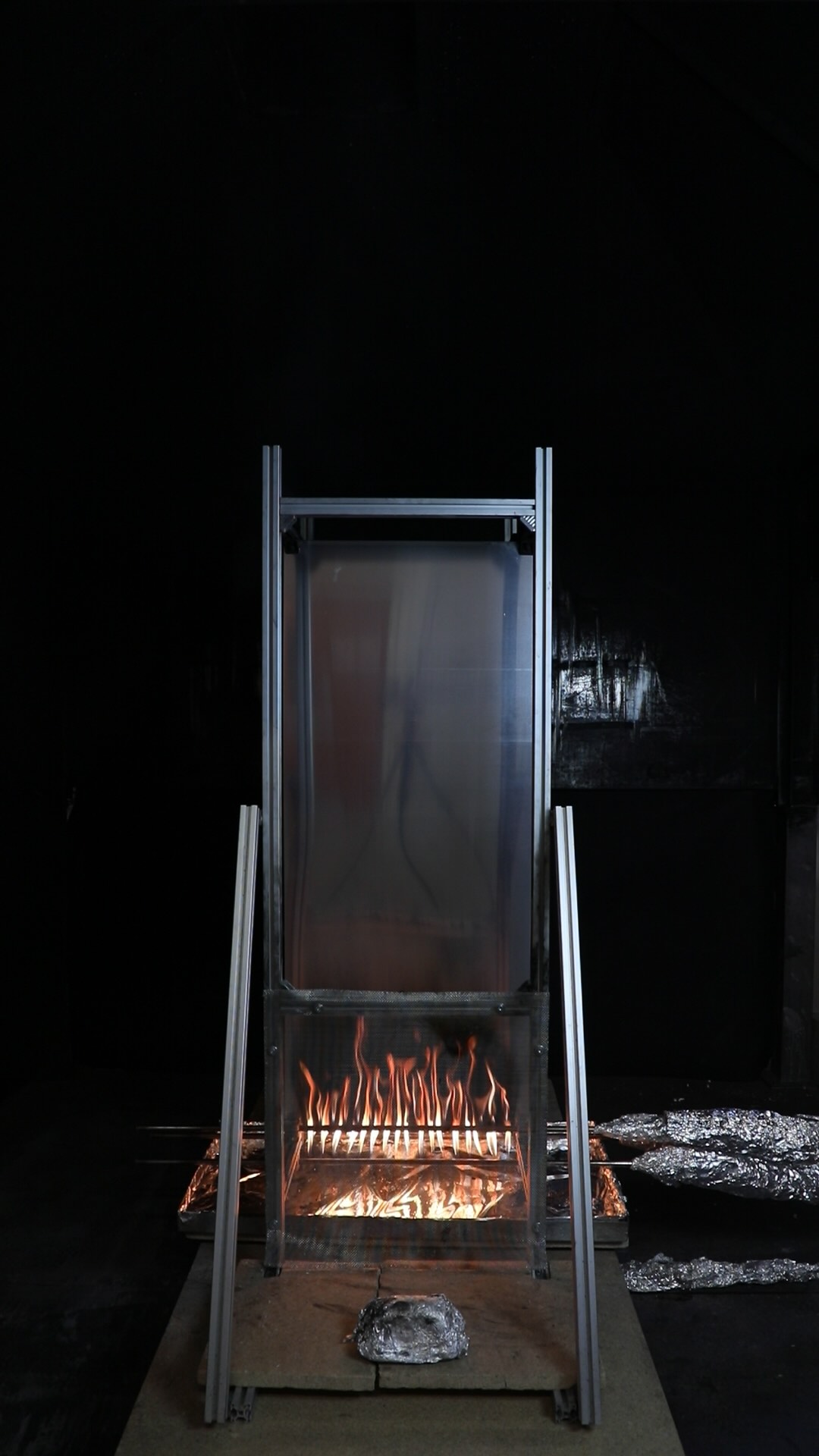

System Test Result

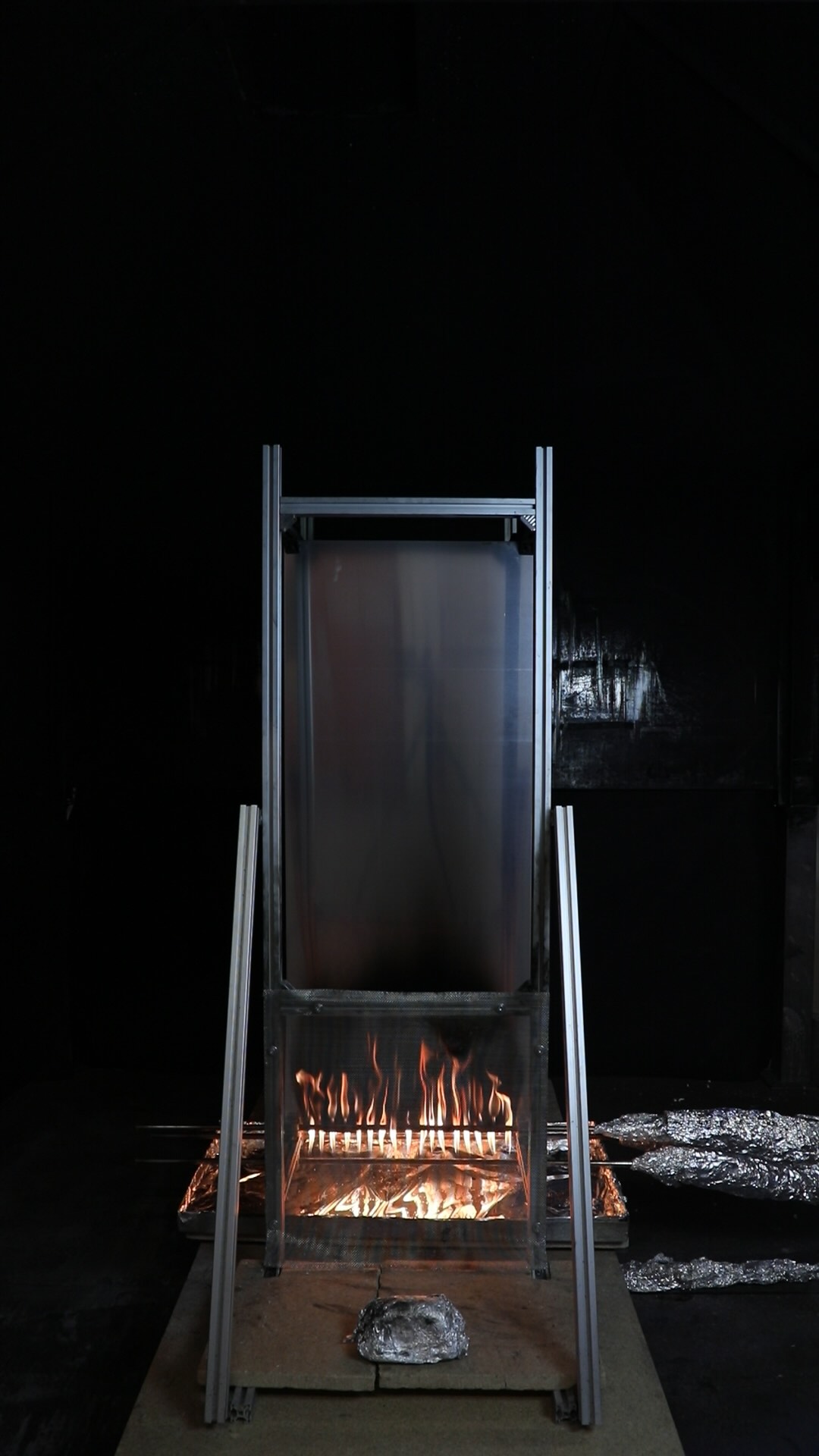

System Test Result

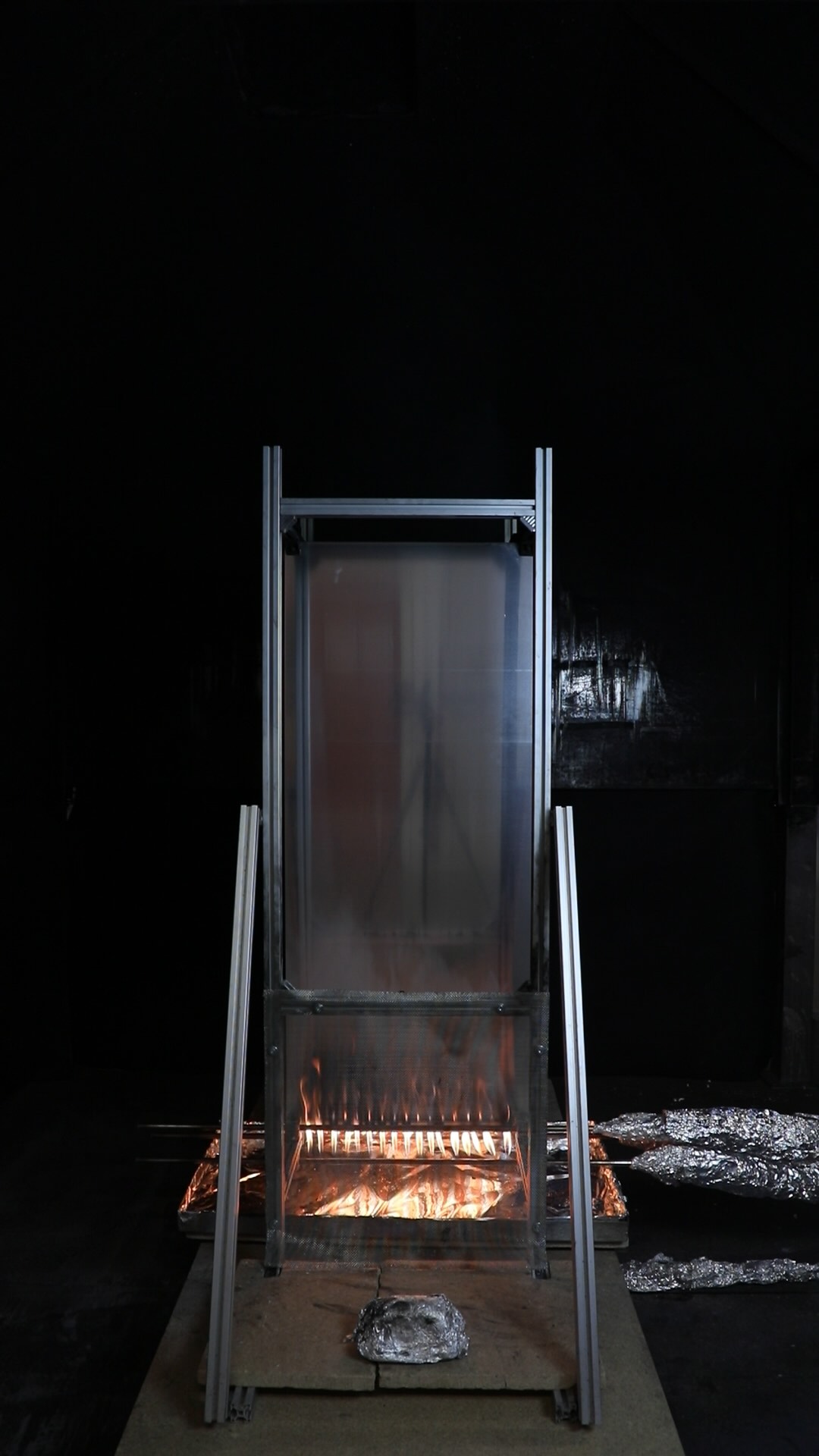

System Test Result

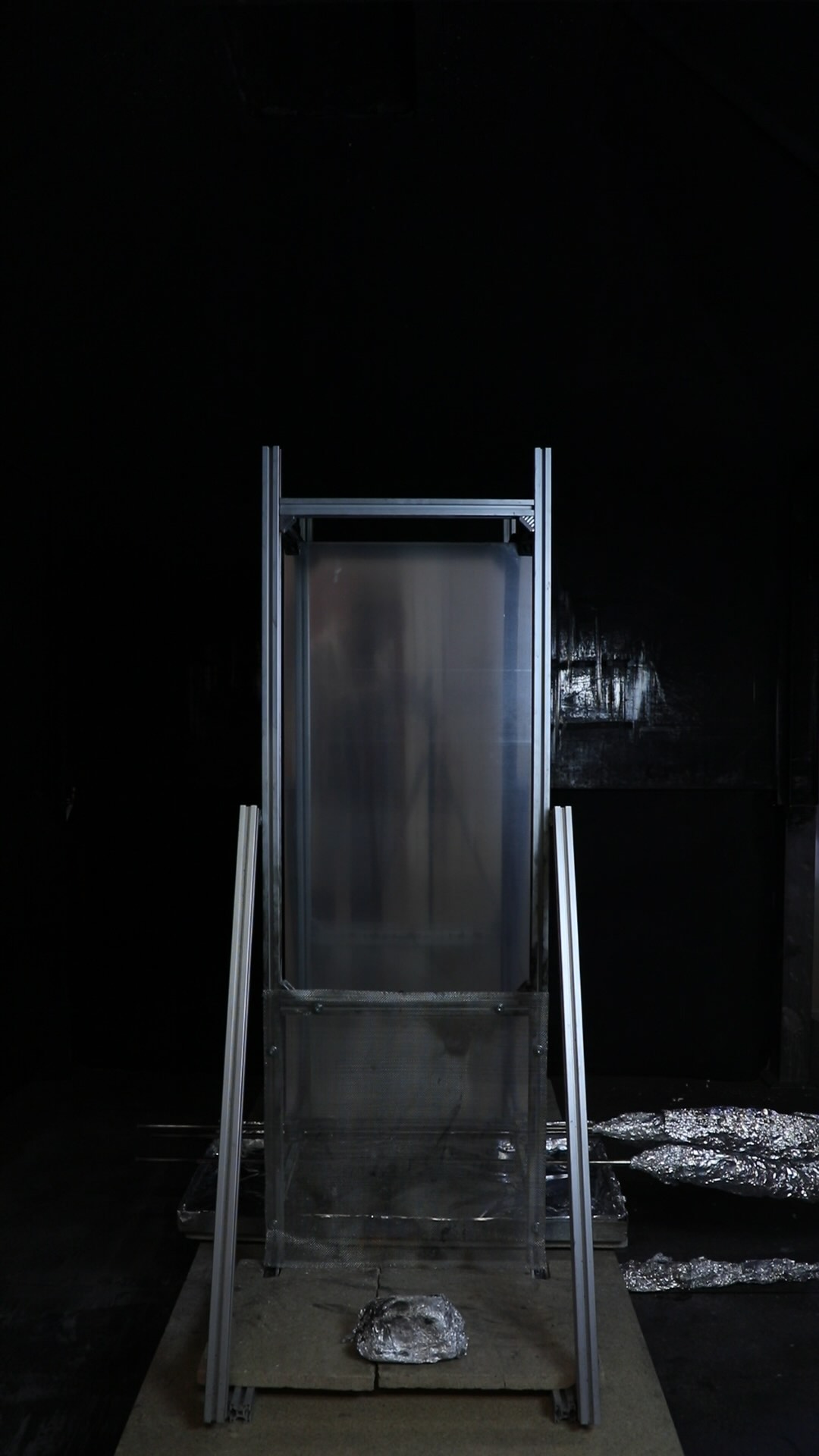

System Test Result
Download Data (CSV) Download Data (PDF)
Video
HRR [kW] including burner baseline
Minutes
