HPL, PIR, rep 3
High Pressure Laminate (HPL)
Description

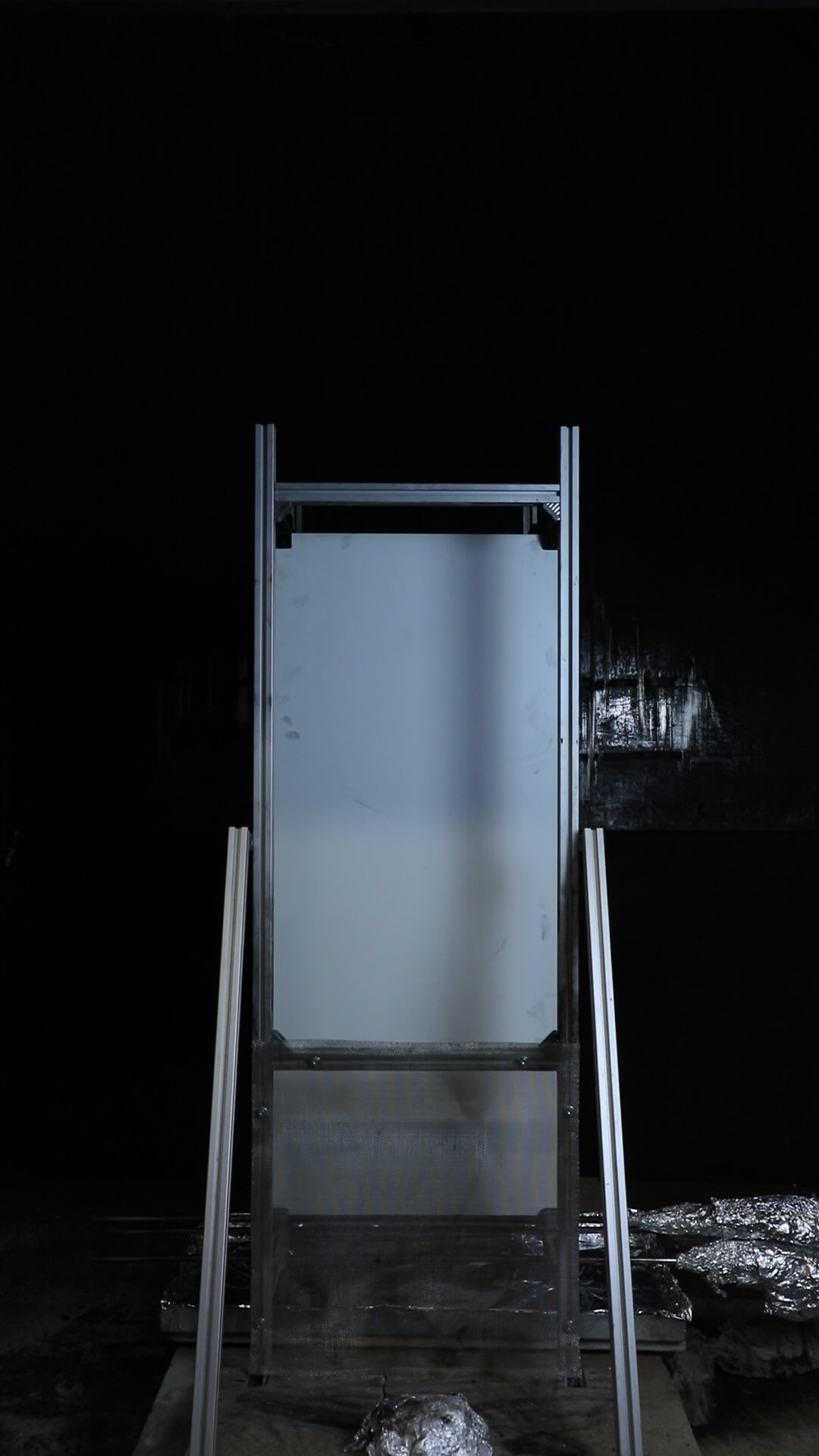

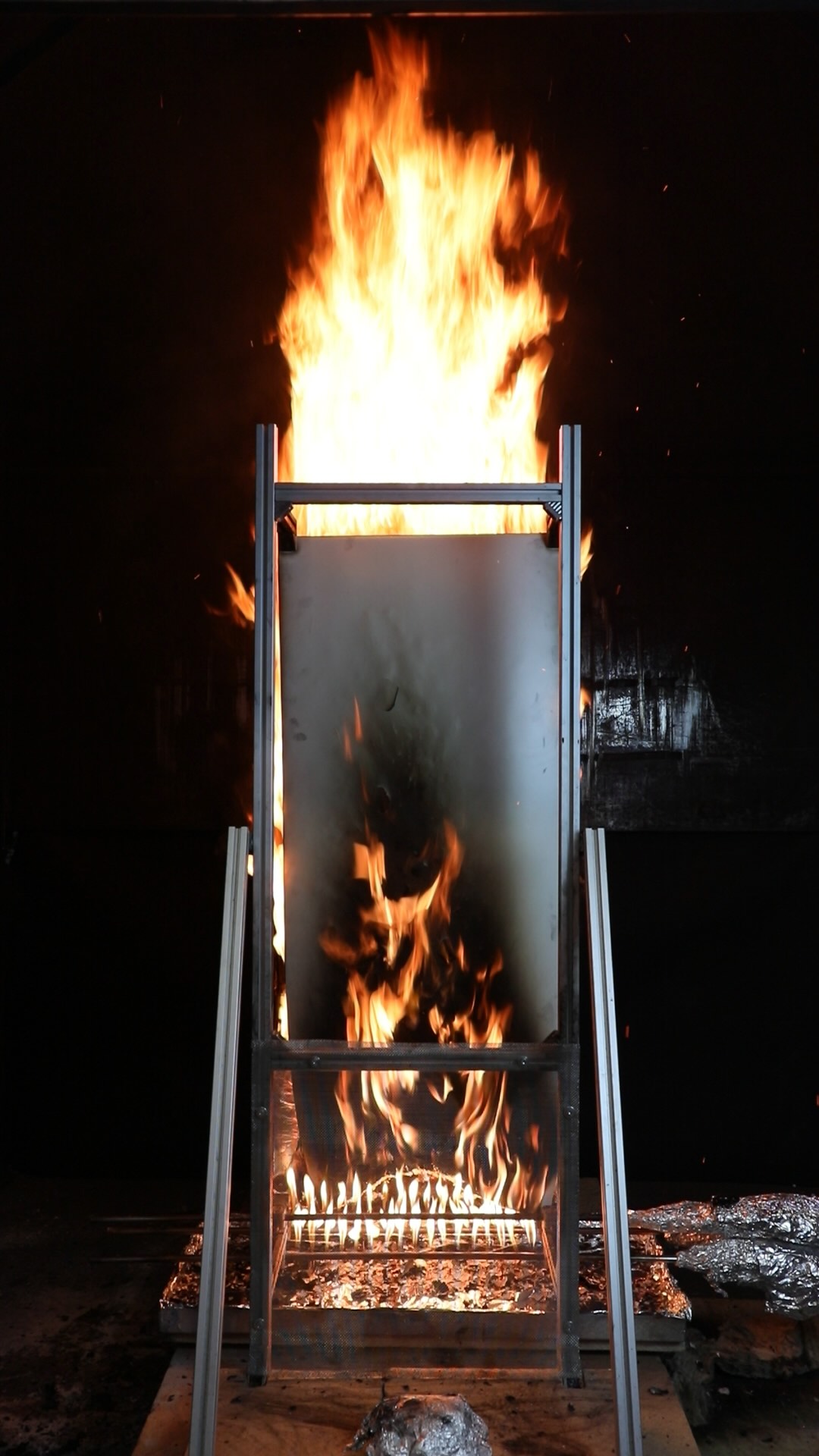

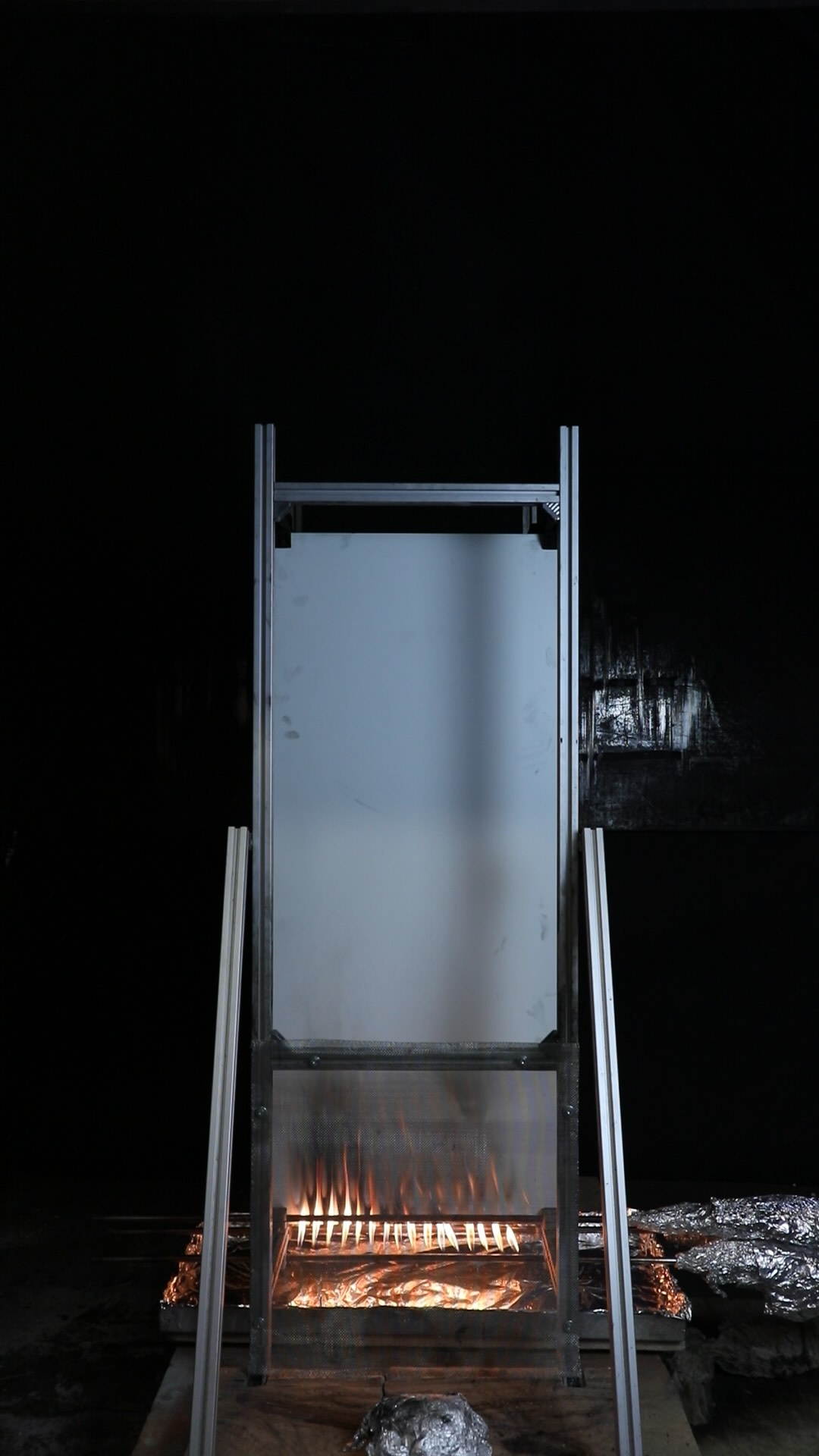

This experiment is on a system consisting of a High Pressure Laminate (HPL) cladding panel and a Polyisocyanurate (PIR) foam insulation panel, separated with a cavity of 50 mm width. It is the third repetition of this system configuration.
Experiment Notes

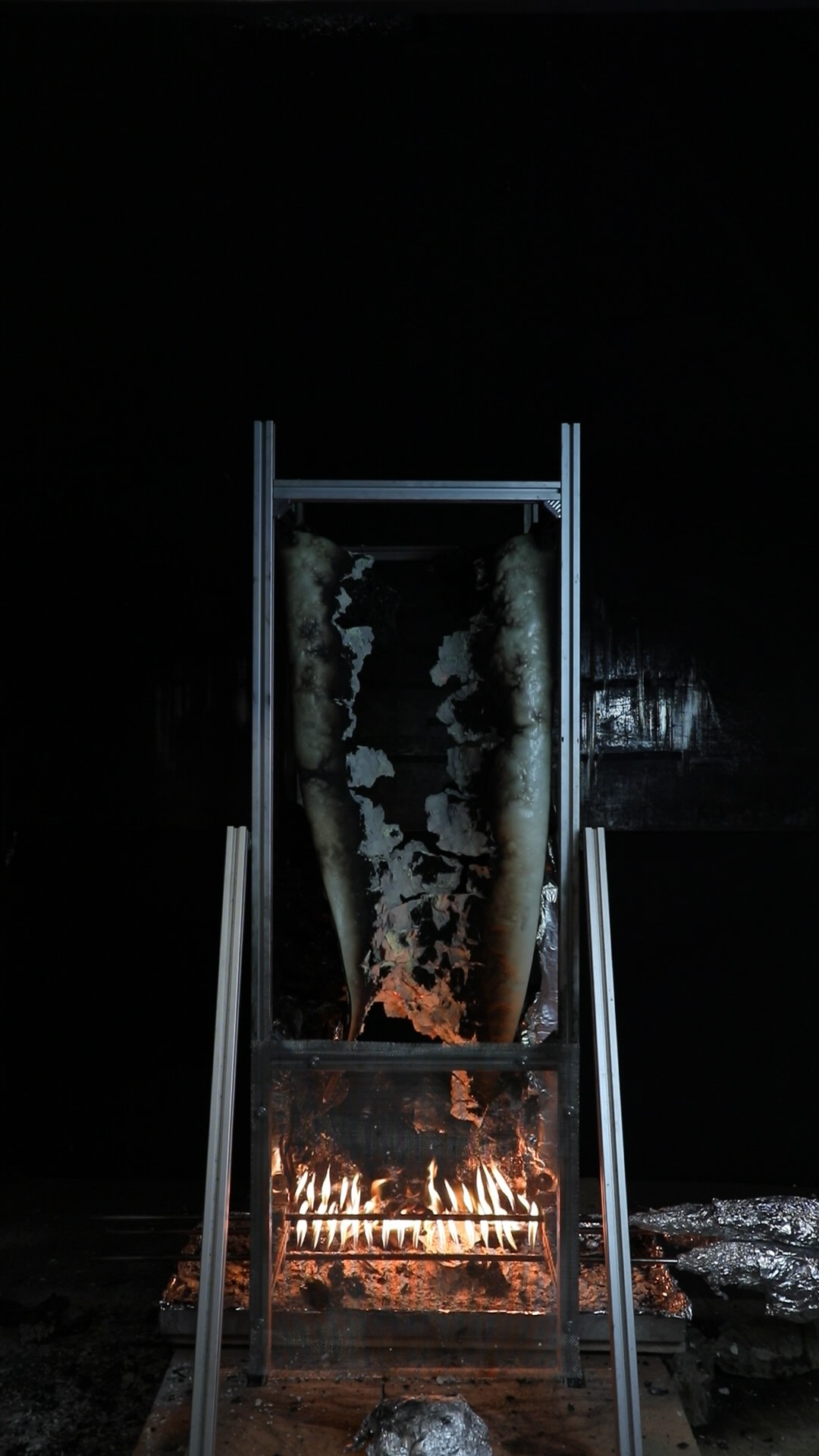

At approximately 7 minutes the HPL panel began to touch the insulation panel, affecting the mass measurements.
Test Details
| Cladding | High Pressure Laminate (HPL) |
| Cladding Thickness [mm] | 8 |
| Insulation | Polyisocyanurate (PIR) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 3 |
Metrics
| Peak HRR [kW] | 150 |
| Time to Peak HRR [mins] | 7.28 |
| Total HR [MJ] | 111 |
| Peak dQ/dt [kW/s] | 0.889 |
| Time to Peak dQ/dt [mins] | 6.28 |
| Residual HRR [kW] | 24.2 |
Video
HRR [kW] including burner baseline
Minutes
30
