OSB, PF, rep 1
Oriented Strand Board (OSB)
Description

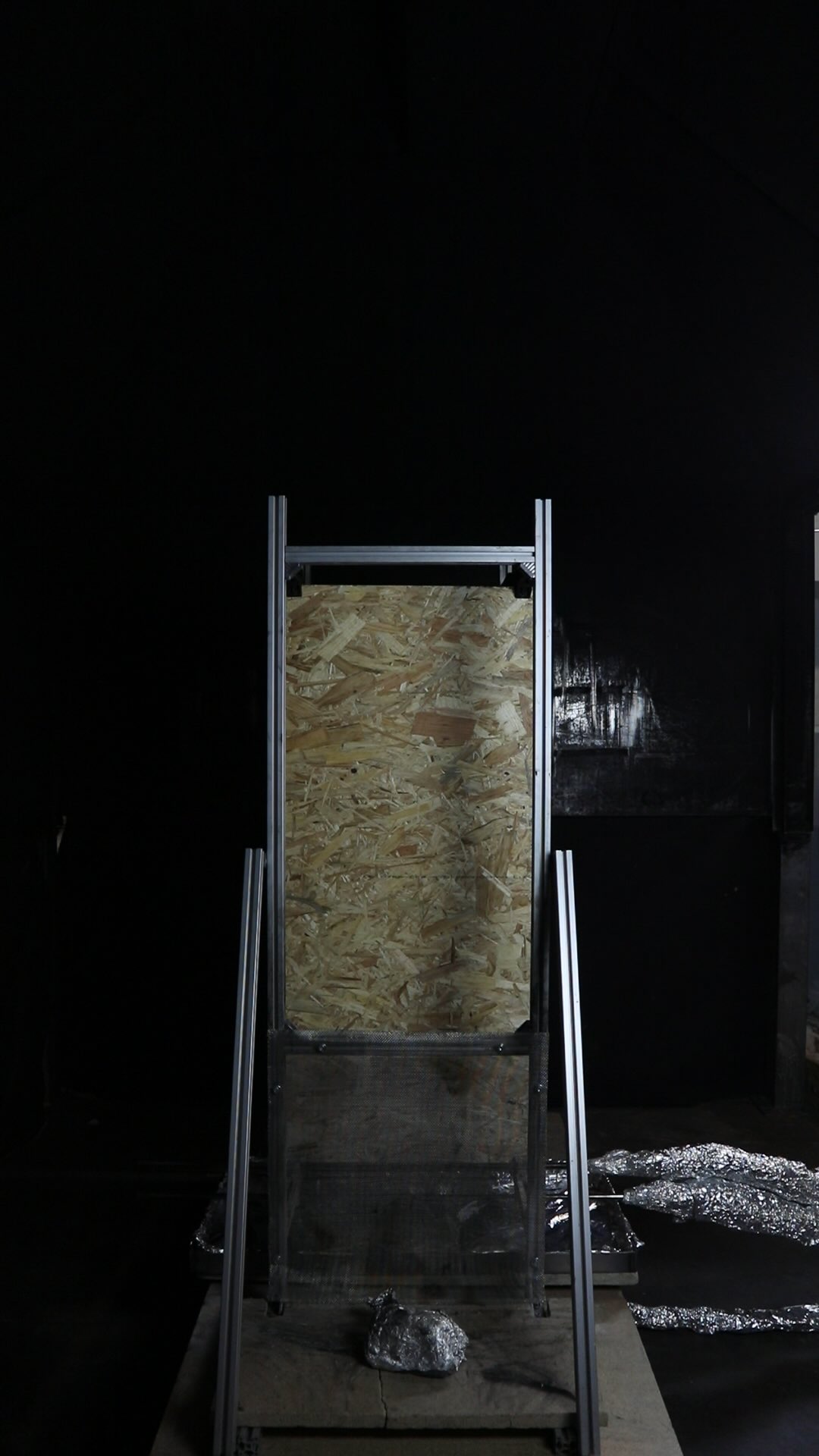

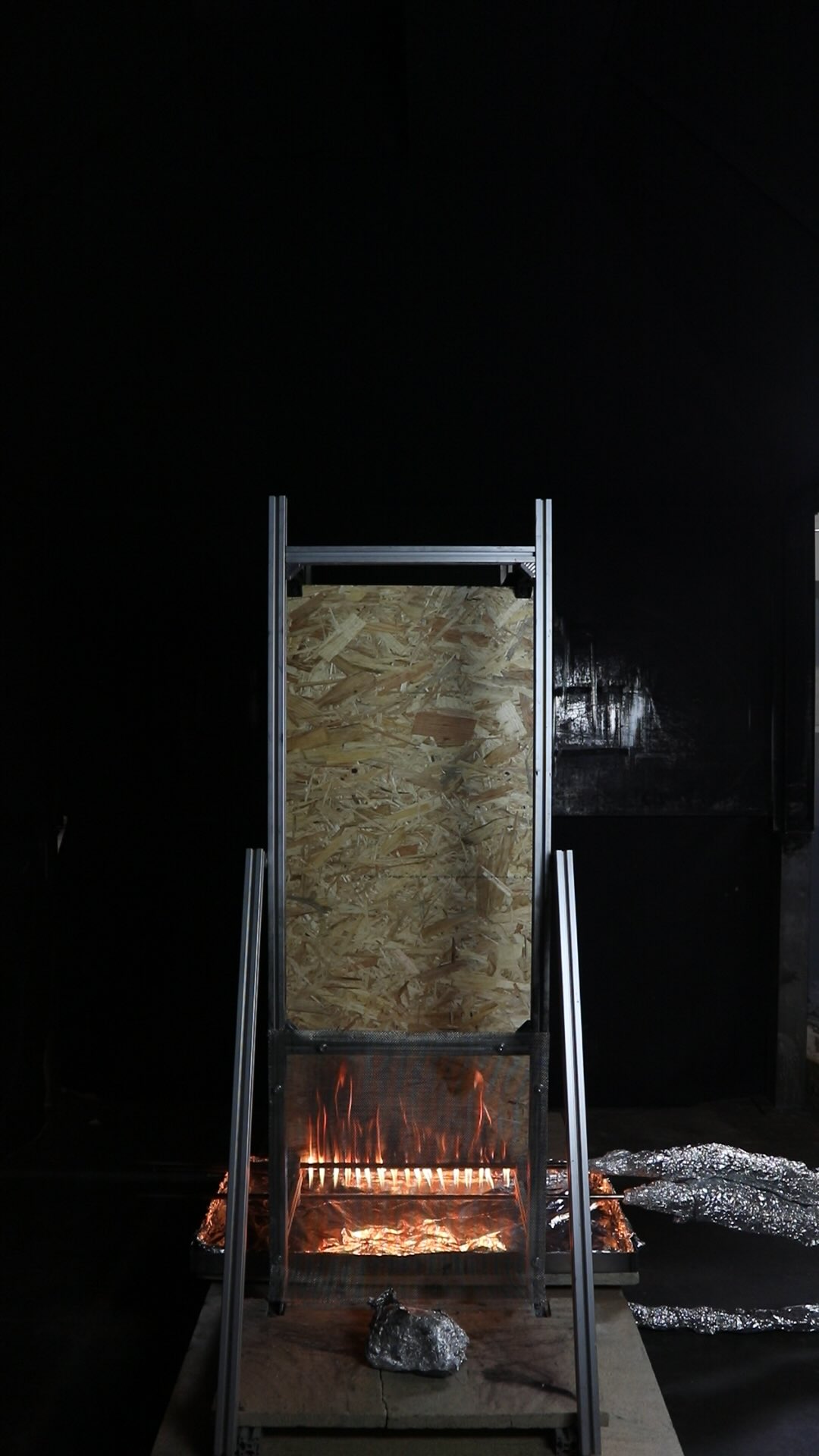

This experiment is on a system consisting of an Oriented Strand Board (OSB) cladding panel and a Phenolic (PF) foam insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes

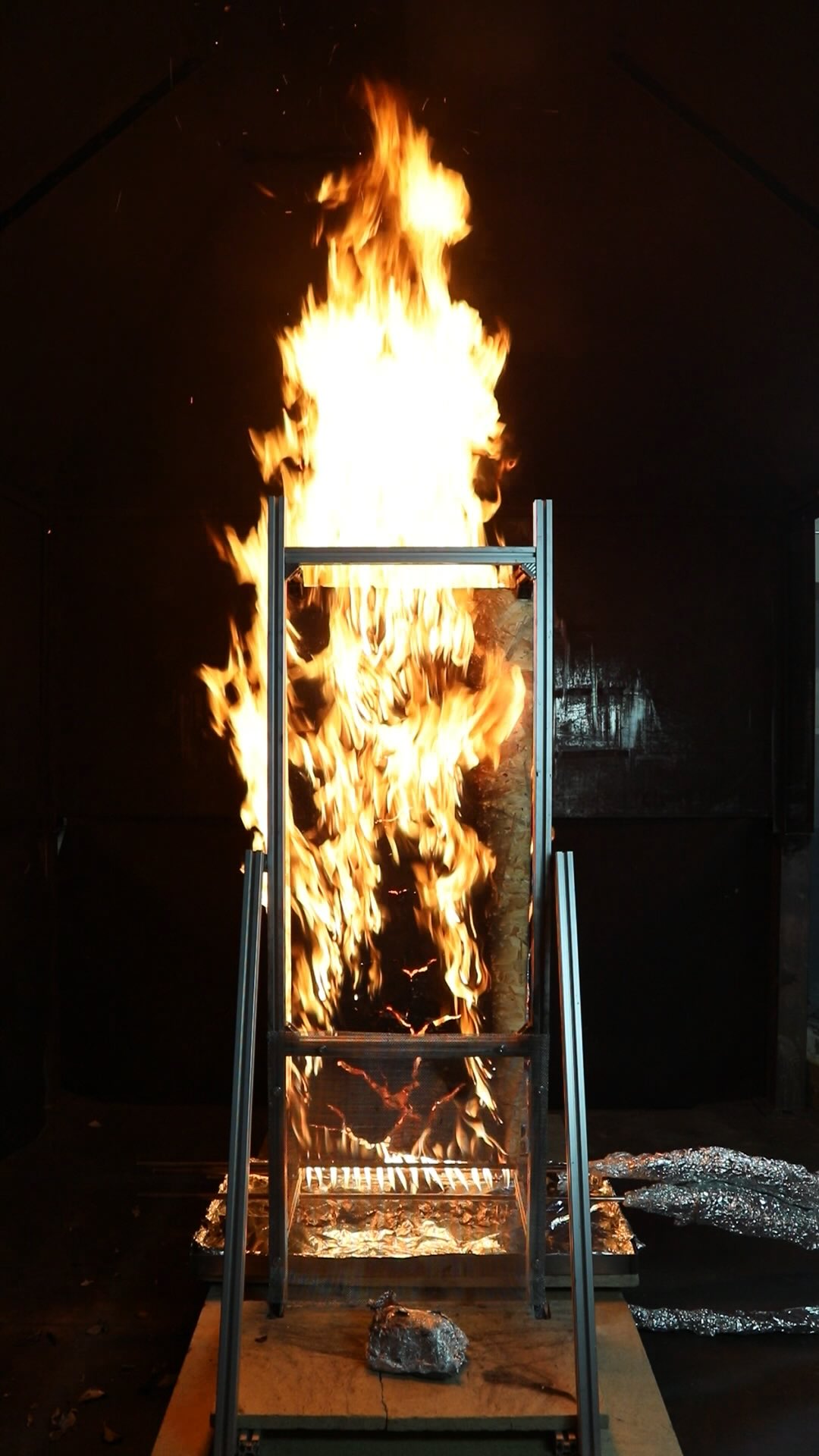

At approximately 8 minutes the OSB panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly. The Phenolic foam insulation was seen to continue smouldering after the experiment was terminated, requiring extinguishment.
Test Details
| Cladding | Oriented Strand Board (OSB) |
| Cladding Thickness [mm] | 11 |
| Insulation | Phenolic (PF) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 191 |
| Time to Peak HRR [mins] | 6.02 |
| Total HR [MJ] | 77.4 |
| Peak dQ/dt [kW/s] | 1.26 |
| Time to Peak dQ/dt [mins] | 4.52 |
| Residual HRR [kW] | 19.9 |
Video
HRR [kW] including burner baseline
Minutes
30
