HPL, PF, rep 2
High Pressure Laminate (HPL)
Description

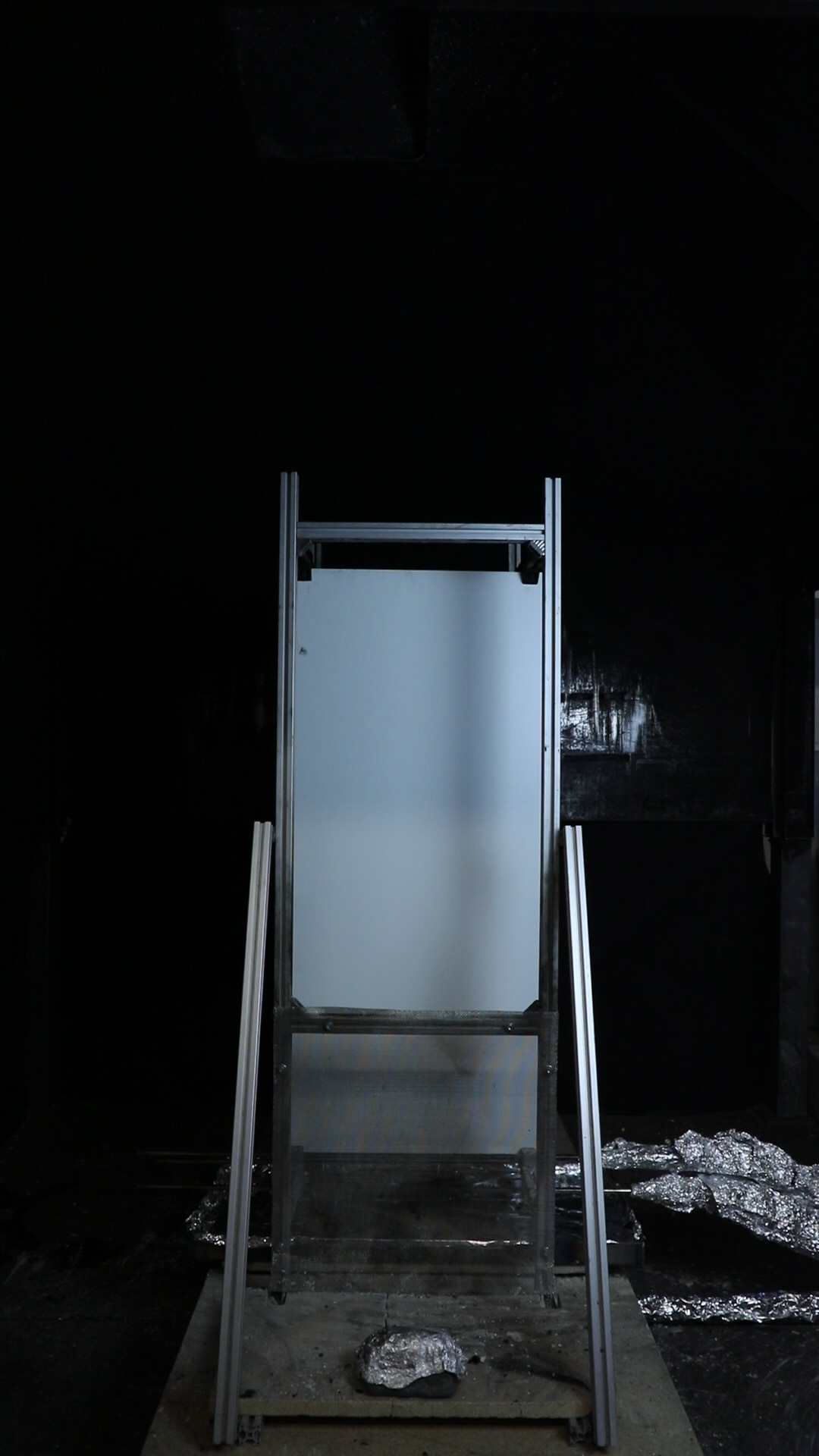

This experiment is on a system consisting of a High Pressure Laminate (HPL) cladding panel and a Phenolic (PF) foam insulation panel, separated with a cavity of 50 mm width. It is the second repetition of this system configuration.
Experiment Notes

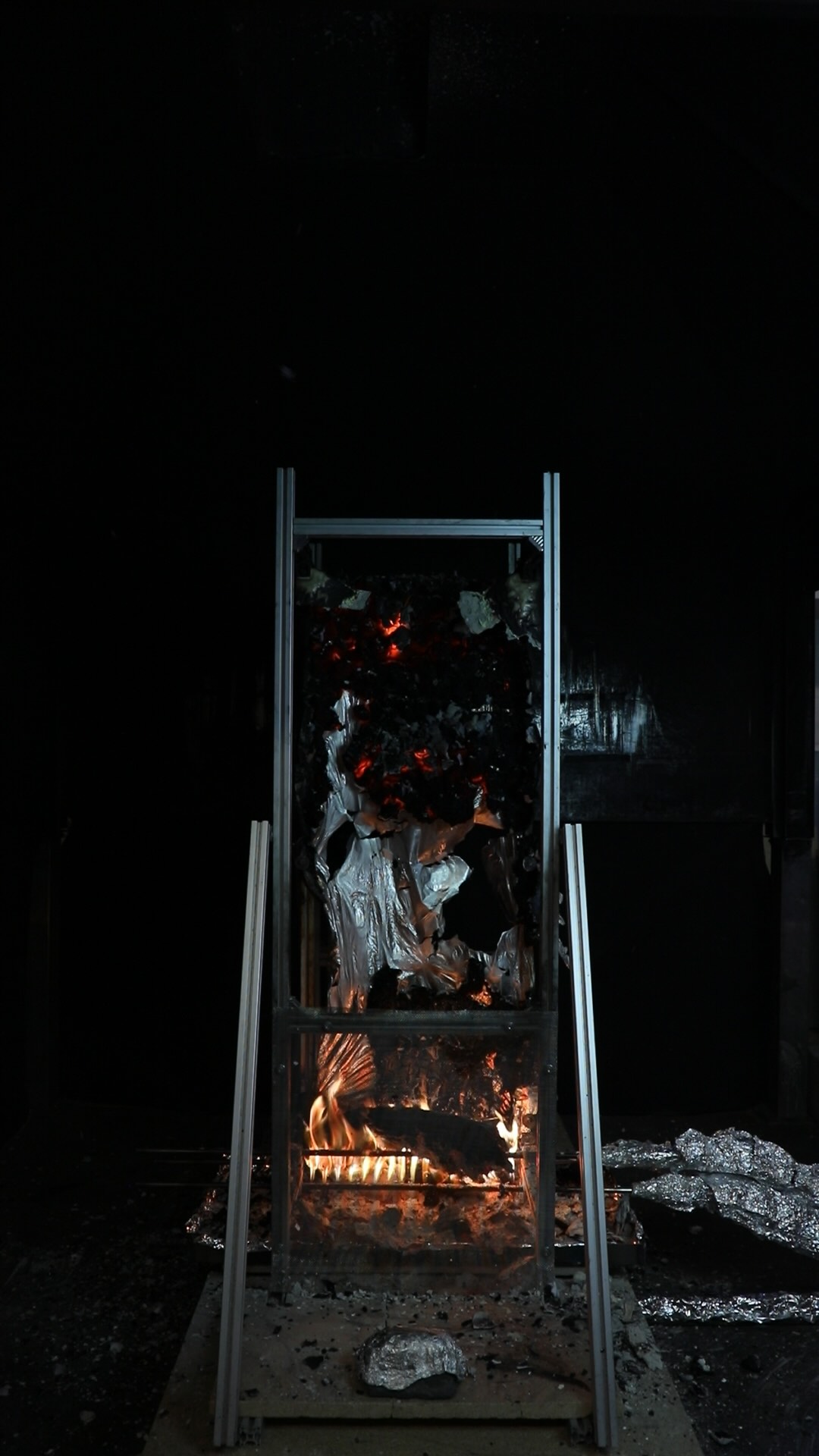

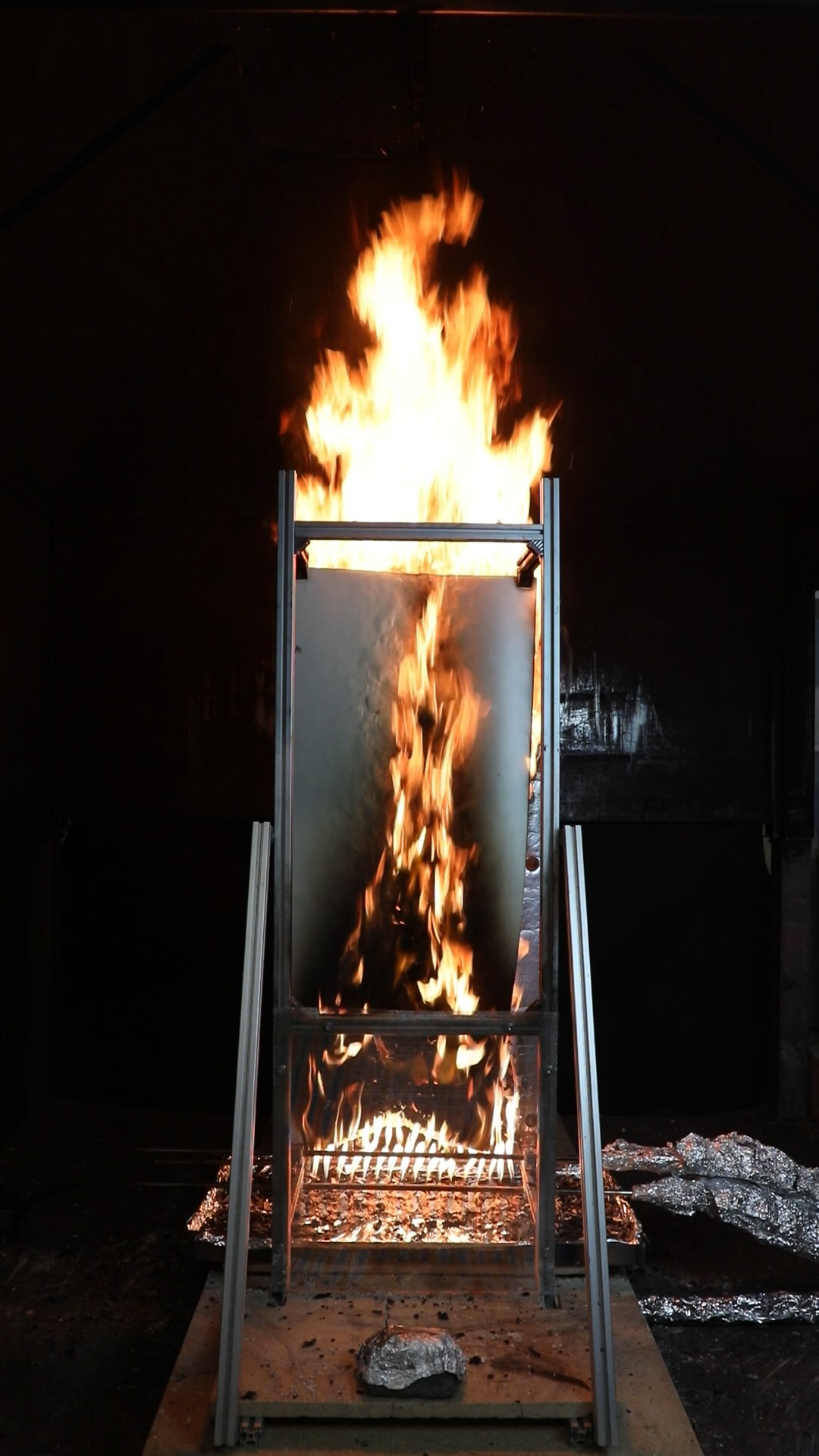

At approximately 7 minutes the HPL panel began to touch the insulation panel, affecting the mass measurements. At approximately 12 minutes the HPL panel began to collapse, causing a sudden change in the mass measurements as debris fell into the debris tray, onto both load cells, or off the entire assembly. The Phenolic foam insulation was seen to continue smouldering after the experiment was terminated, requiring extinguishment.
Test Details
| Cladding | High Pressure Laminate (HPL) |
| Cladding Thickness [mm] | 8 |
| Insulation | Phenolic (PF) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 2 |
Metrics
| Peak HRR [kW] | 136 |
| Time to Peak HRR [mins] | 11.2 |
| Total HR [MJ] | 132 |
| Peak dQ/dt [kW/s] | 0.462 |
| Time to Peak dQ/dt [mins] | 8.18 |
| Residual HRR [kW] | 40.6 |
Video
HRR [kW] including burner baseline
Minutes
30
