Aluminium Composite Material (ACM) PE
Description

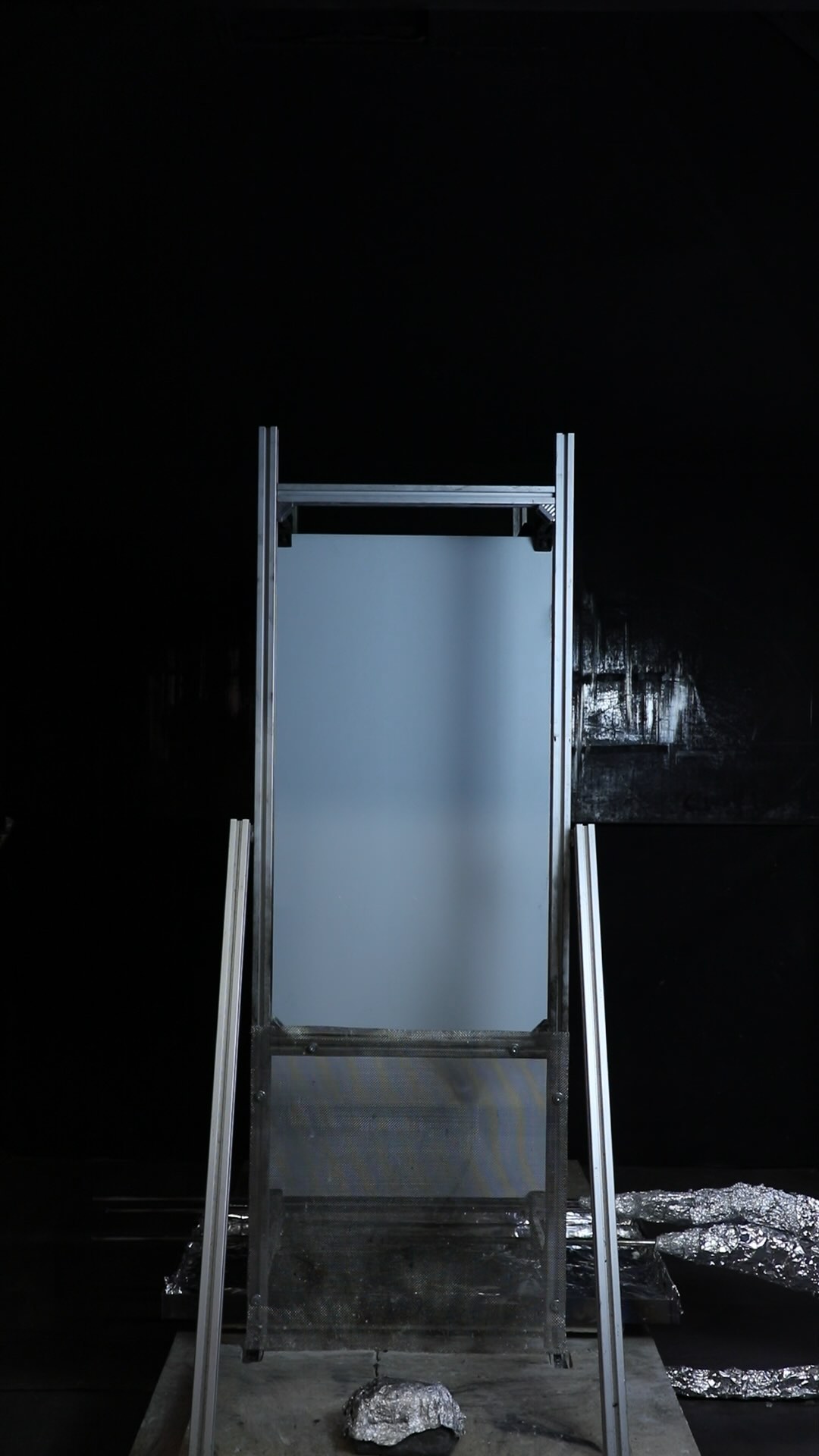

This experiment is on a system consisting of an Aluminium Composite Material (ACM) PE cladding panel and a Polyisocyanurate (PIR) foam insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes

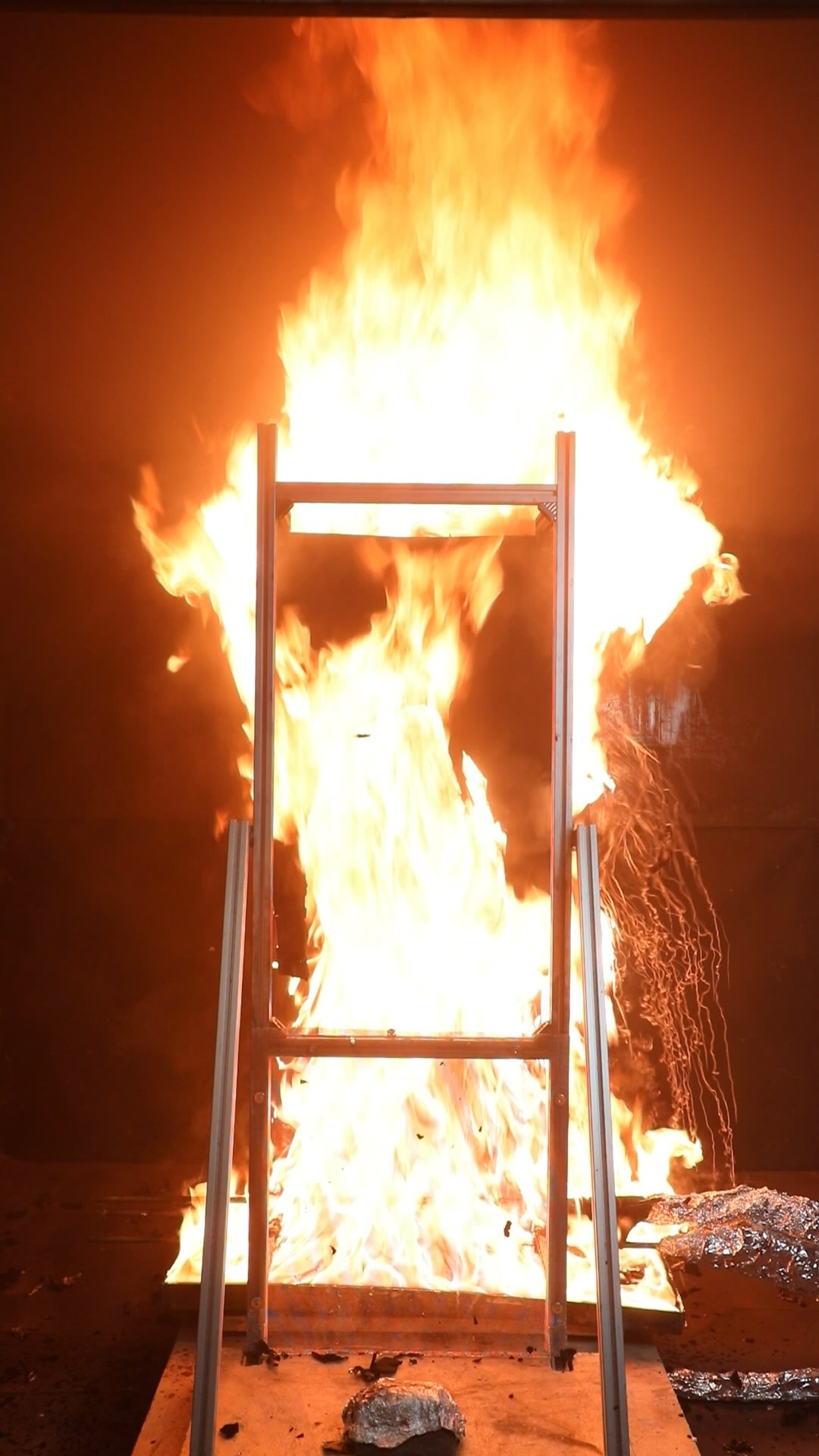

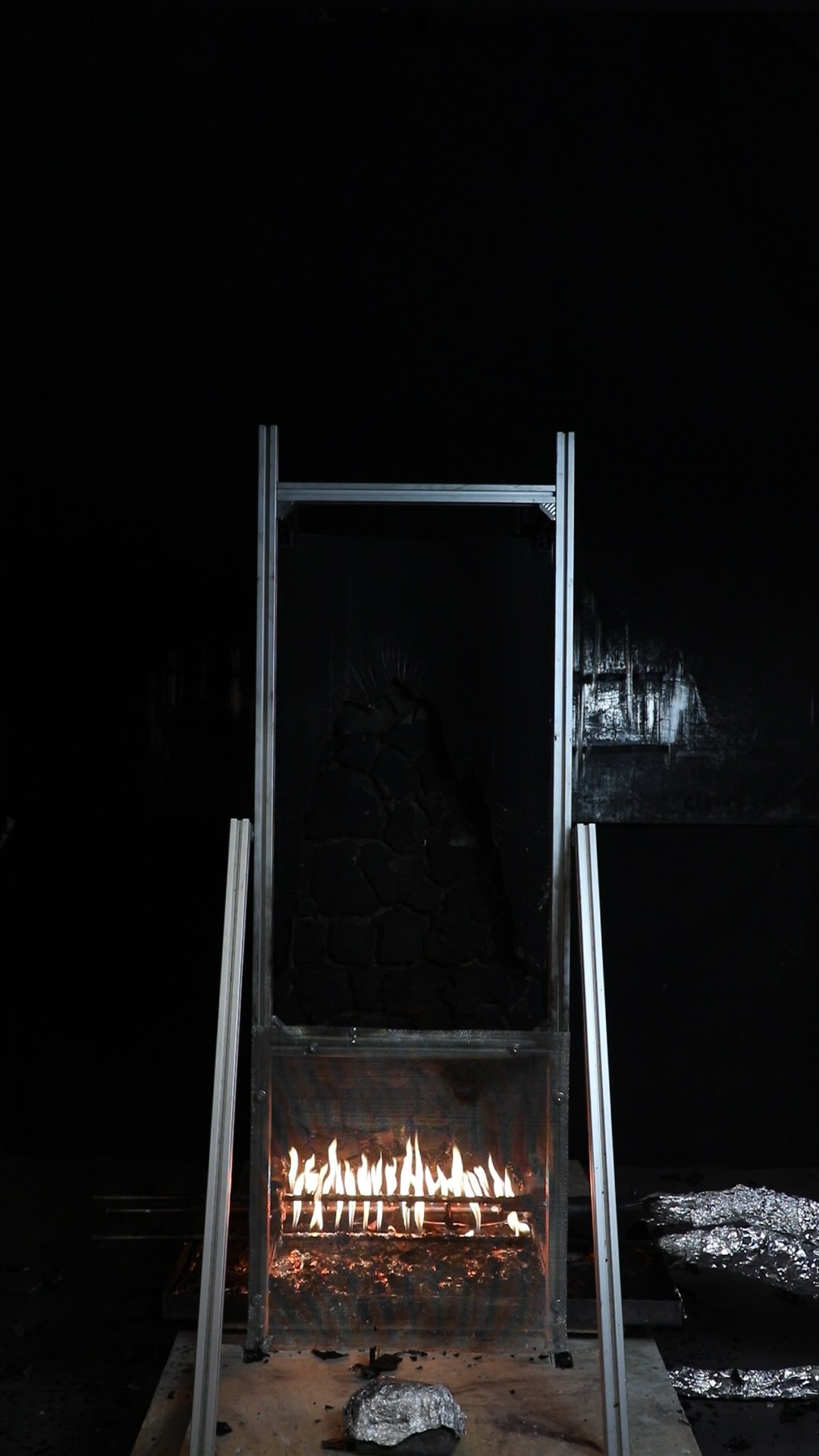

At approximately 1 minute the PE core began to drip from the ACM panel, and continued to burn within the debris tray. At approximately 3 minutes, smoking droplets were observed coming out from the sides of the ACM PE panel. During the experiment, significant volumes of smoke were not captured by the extraction system, therefore potentially not capturing the full extent of the gas measurements and thus heat release rate.
Test Details
| Cladding | Aluminium Composite Material (ACM) PE |
| Cladding Thickness [mm] | 4 |
| Insulation | Polyisocyanurate (PIR) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 430 |
| Time to Peak HRR [mins] | 4.33 |
| Total HR [MJ] | 58.1 |
| Peak dQ/dt [kW/s] | 3.71 |
| Time to Peak dQ/dt [mins] | 3.47 |
| Residual HRR [kW] | 1.46 |
Video
HRR [kW] including burner baseline
Minutes
