AL, PF, rep 2

Aluminium

Description

This experiment is on a system consisting of an Aluminium cladding panel and a Phenolic (PF) foam insulation panel, separated with a cavity of 50 mm width. It is the second repetition of this system configuration.

Experiment Notes

The Phenolic foam insulation was seen to continue smouldering after the experiment was terminated, requiring extinguishment.

Test Details
Cladding Aluminium
Cladding Thickness [mm] 2
Insulation Phenolic (PF) foam
Insulation thickness [mm] 100
Cavity width [mm] 50
Repetition number 2
Metrics
Peak HRR [kW] 0
Time to Peak HRR [mins]
Total HR [MJ] 0
Peak dQ/dt [kW/s] 0
Time to Peak dQ/dt [mins]
Residual HRR [kW] 2.46

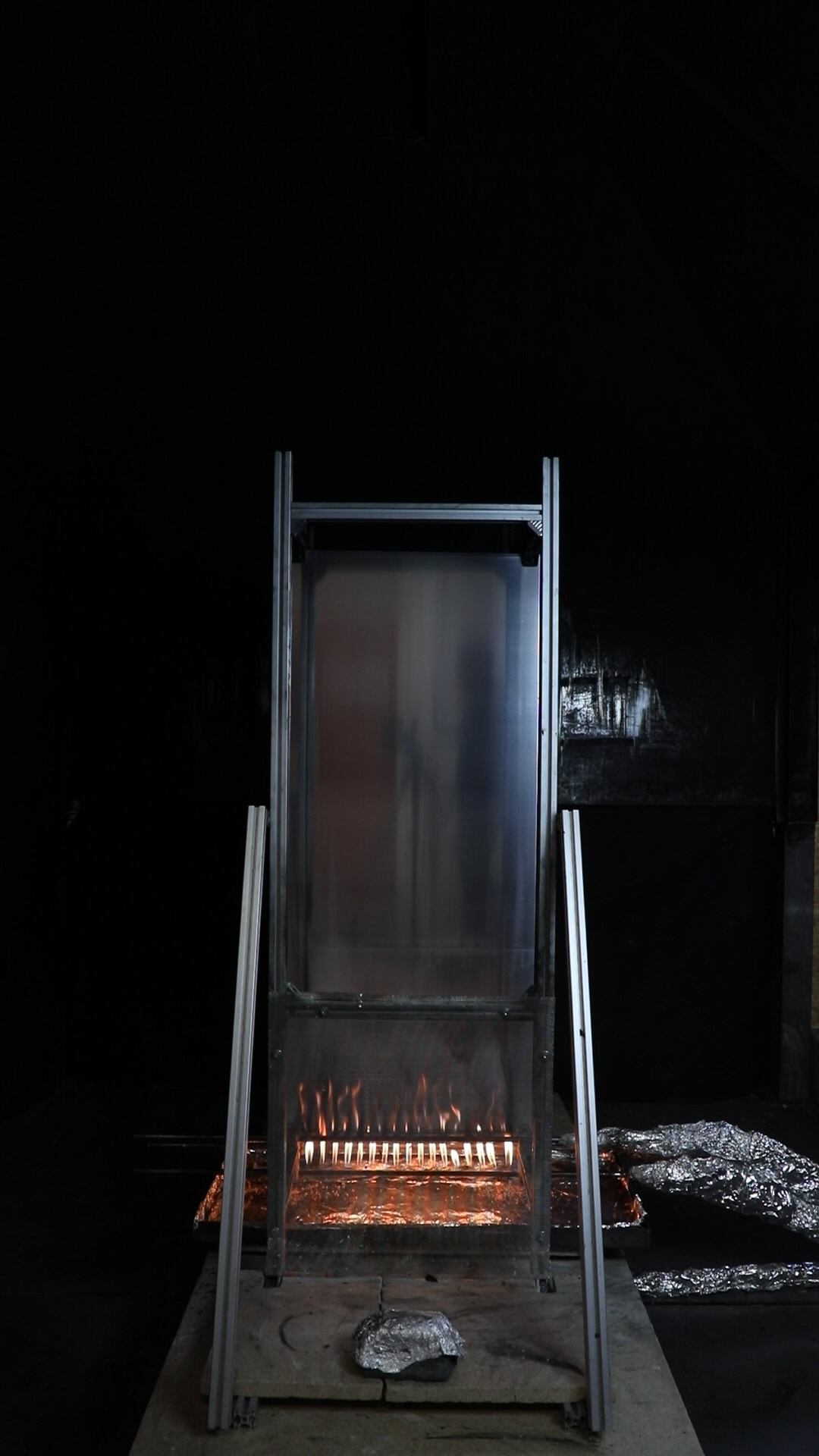

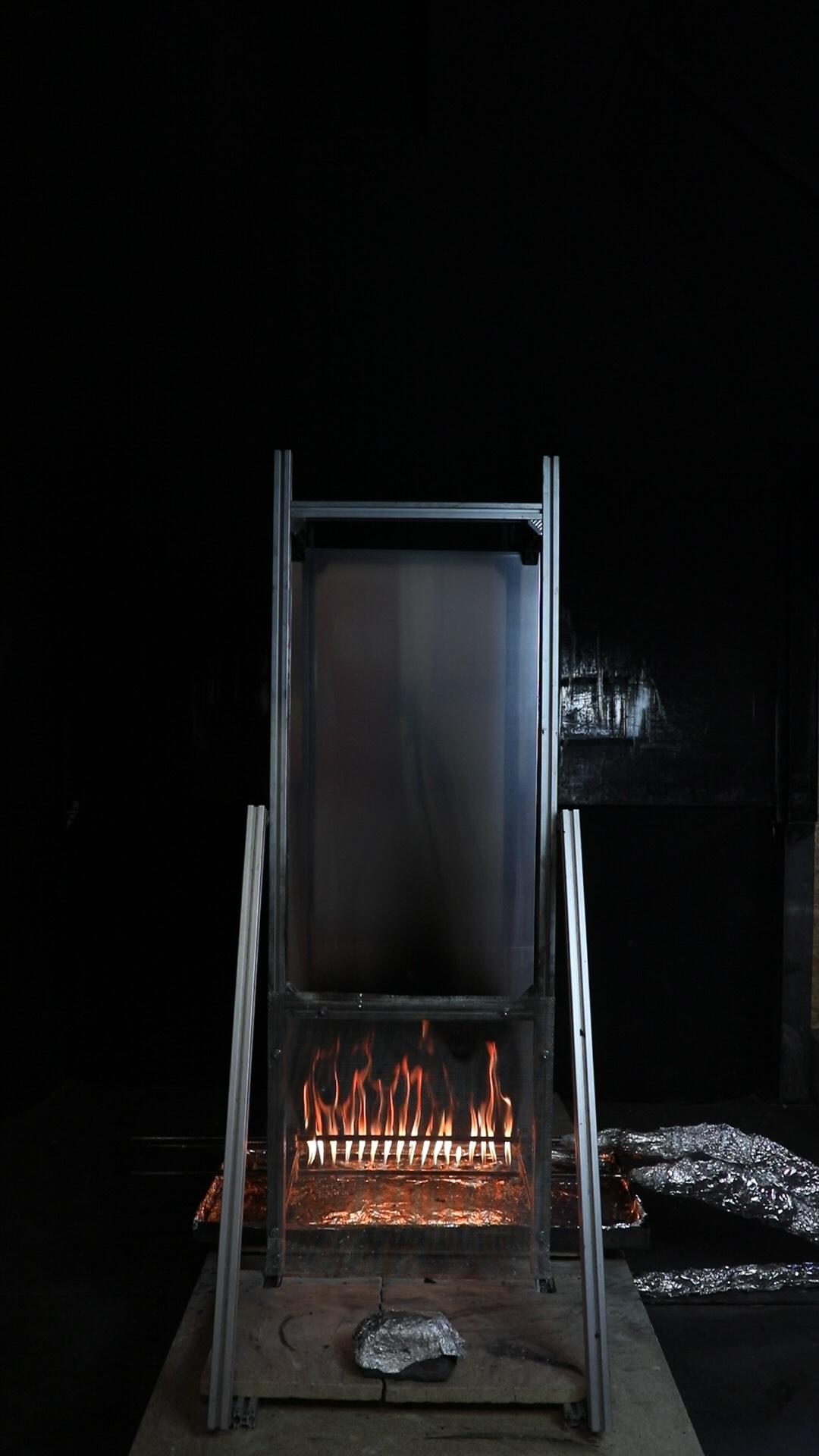

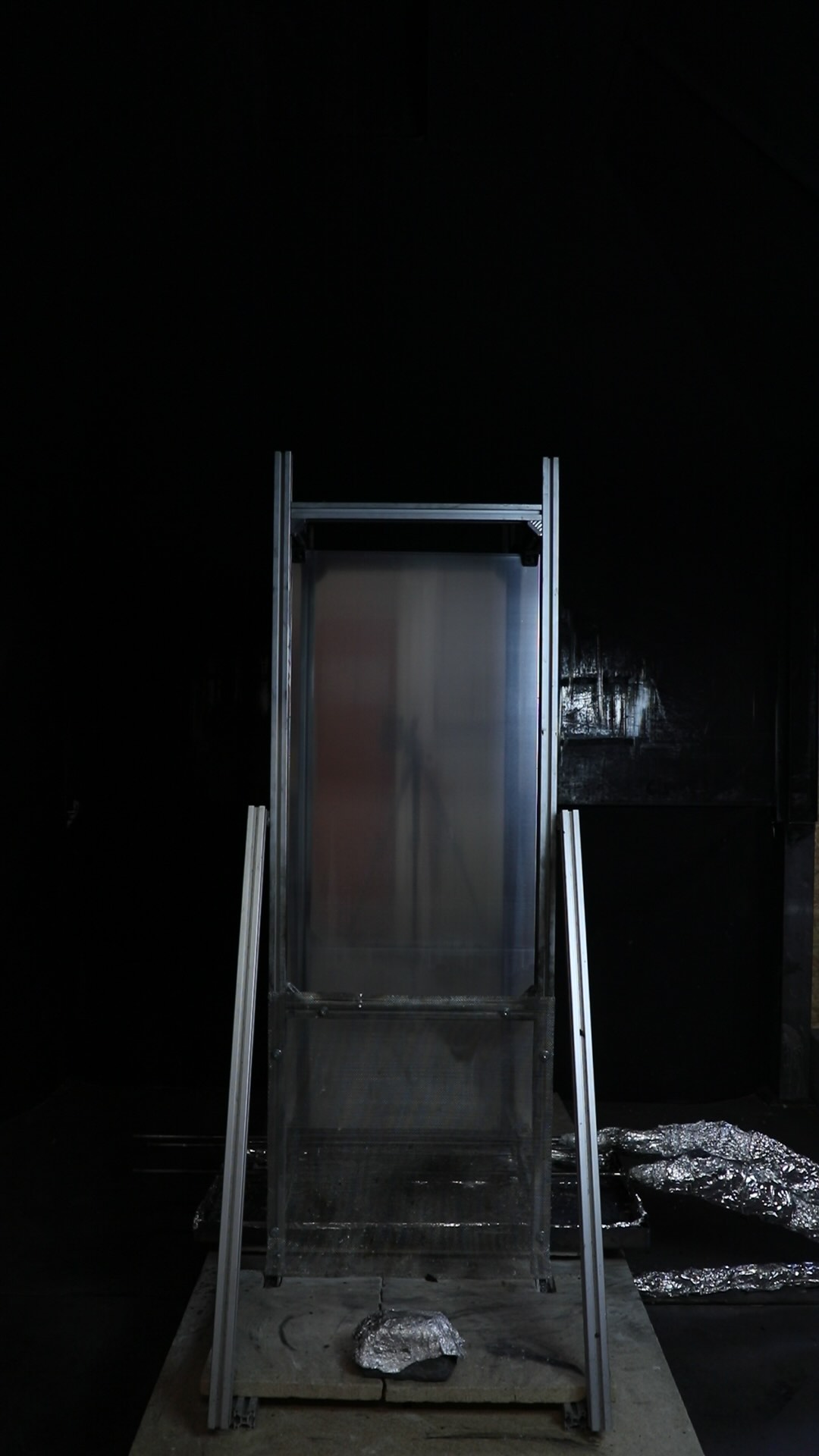

Test Pictures (click to zoom)
System Test Result
System Test Result
System Test Result
System Test Result
Download Data (CSV) Download Data (PDF)
Video
HRR [kW] including burner baseline
Minutes
30
