HPL, WC, rep 1
High Pressure Laminate (HPL)
Description

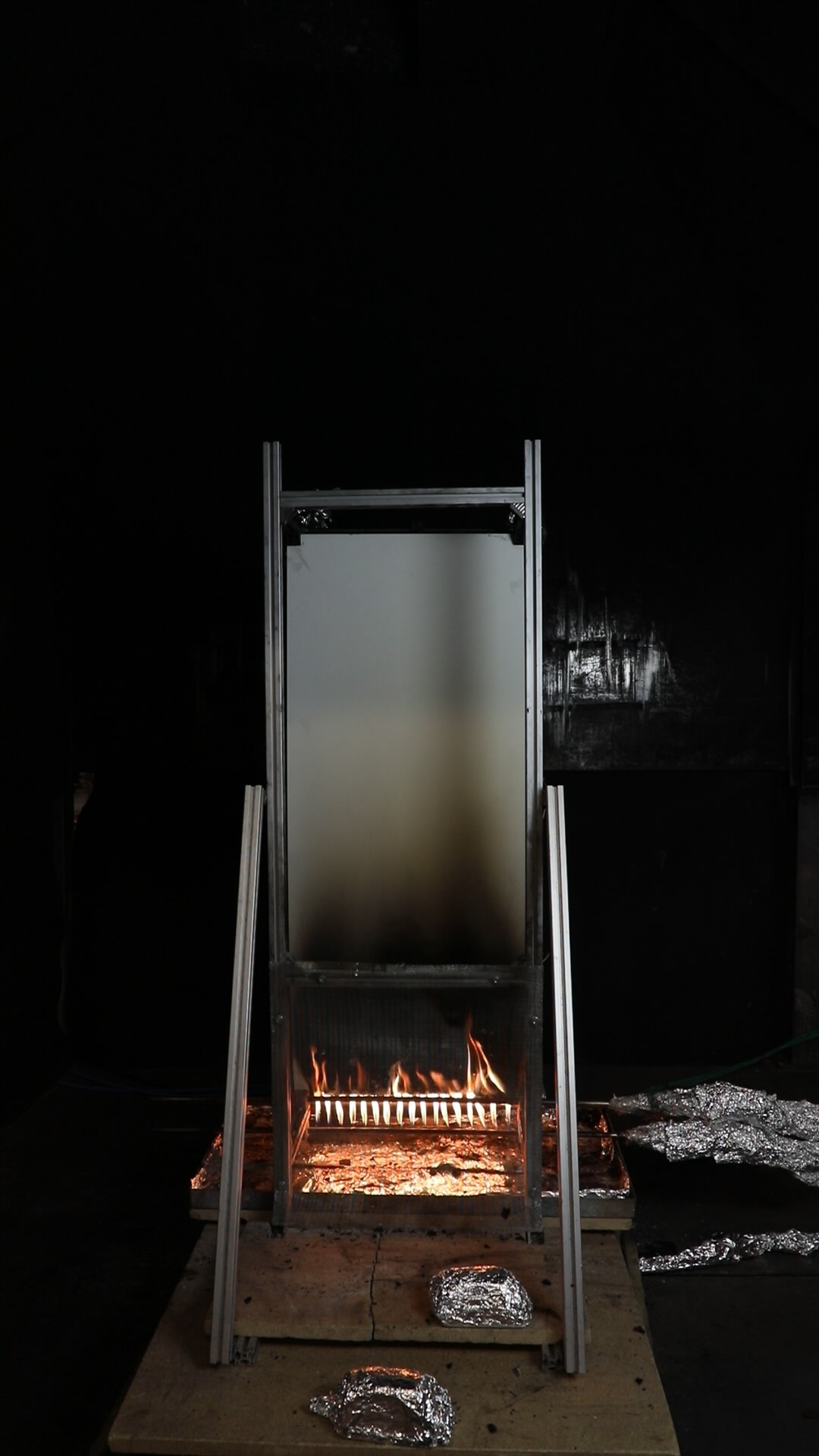

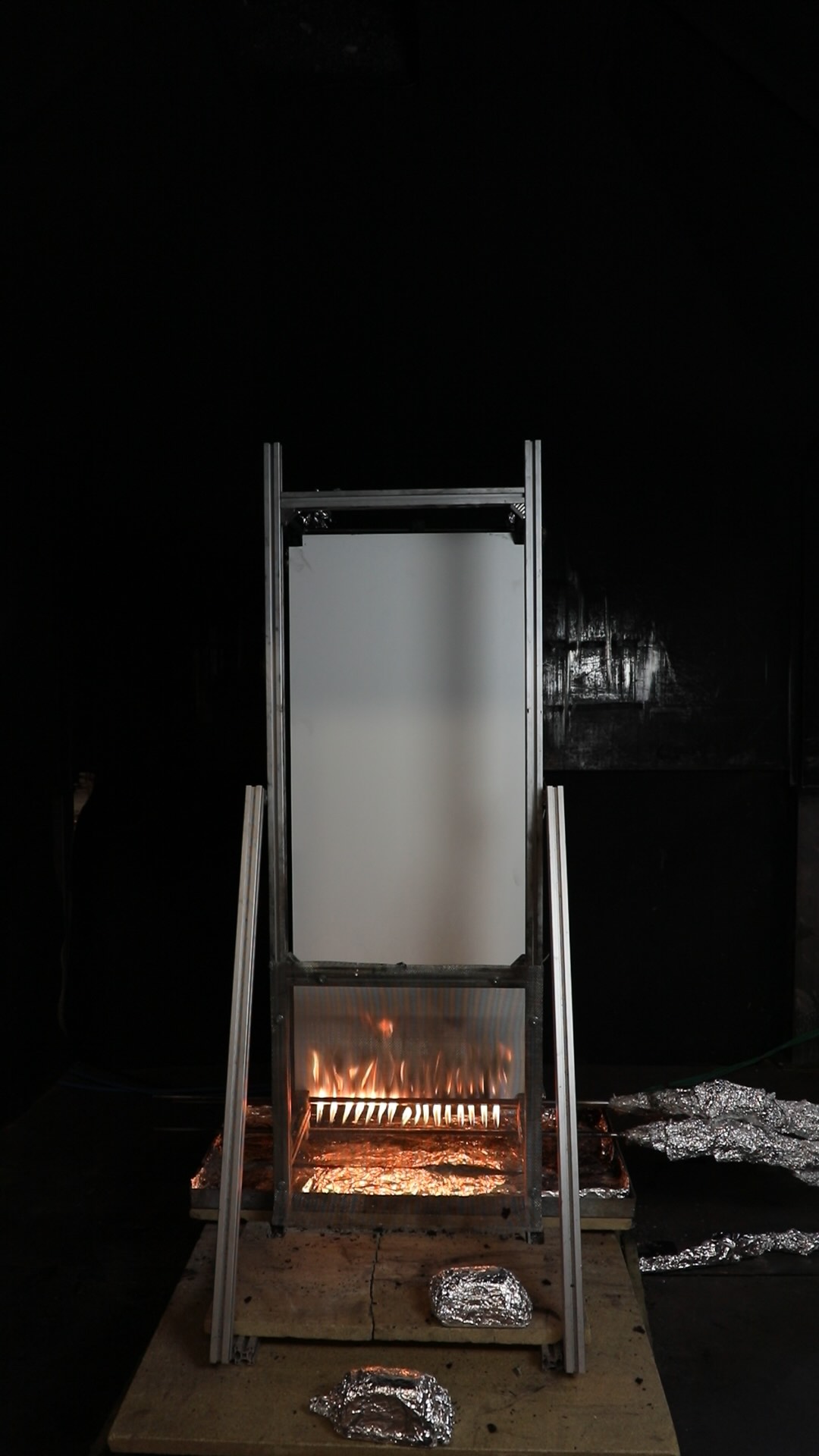

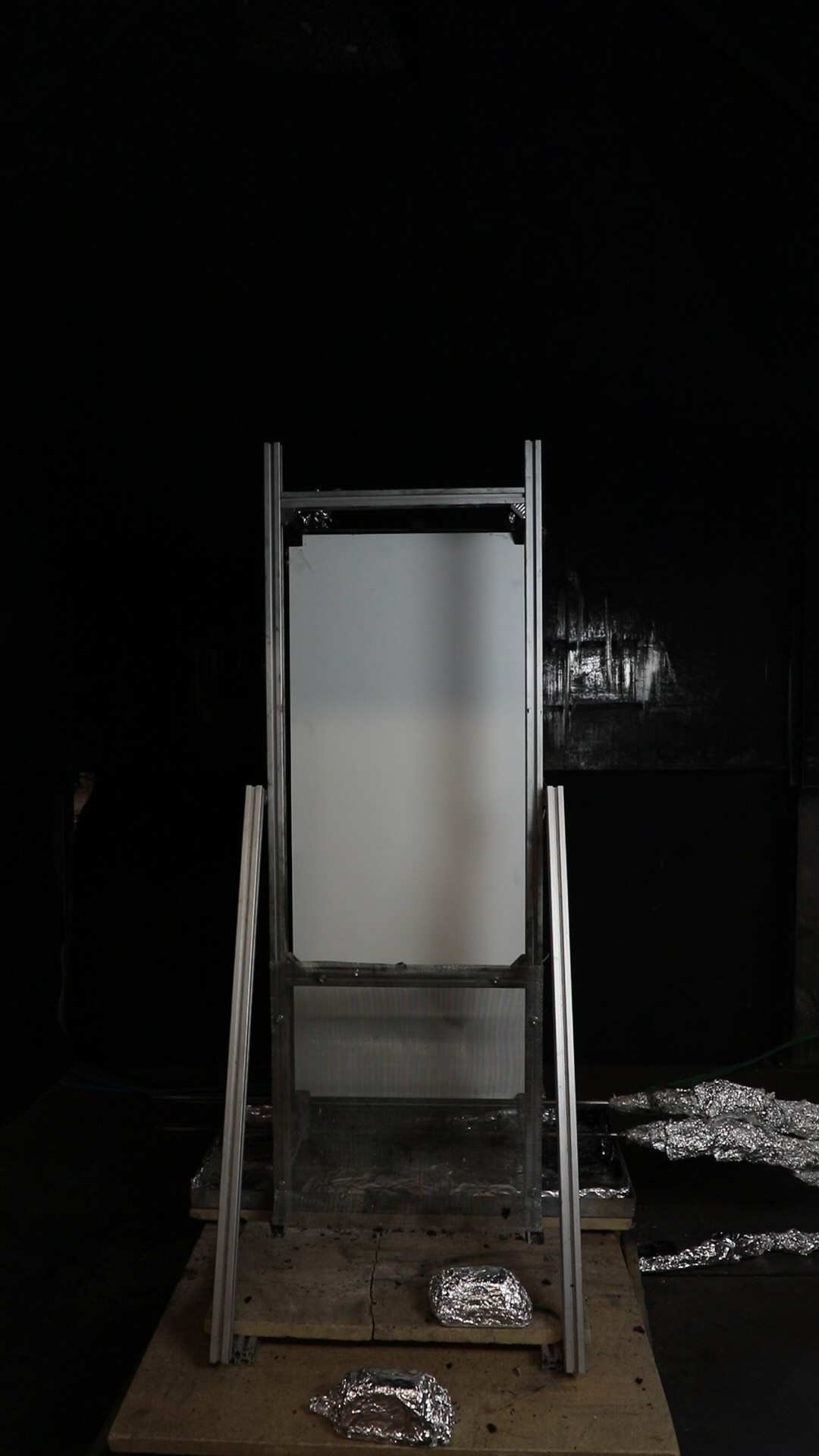

This experiment is on a system consisting of a High Pressure Laminate (HPL) cladding panel and a Water-cooled steel plate insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes
The HPL panel was seen to continue smouldering after the experiment was terminated, requiring extinguishment
Test Details
| Cladding | High Pressure Laminate (HPL) |
| Cladding Thickness [mm] | 8 |
| Insulation | Water-cooled steel plate |
| Insulation thickness [mm] | |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 6.29 |
| Time to Peak HRR [mins] | 12.98 |
| Total HR [MJ] | 3.58 |
| Peak dQ/dt [kW/s] | 0.0493 |
| Time to Peak dQ/dt [mins] | 15.72 |
| Residual HRR [kW] | 1.5 |
Video
HRR [kW] including burner baseline
Minutes
30
