PLY, WC, rep 1
Plywood
Description

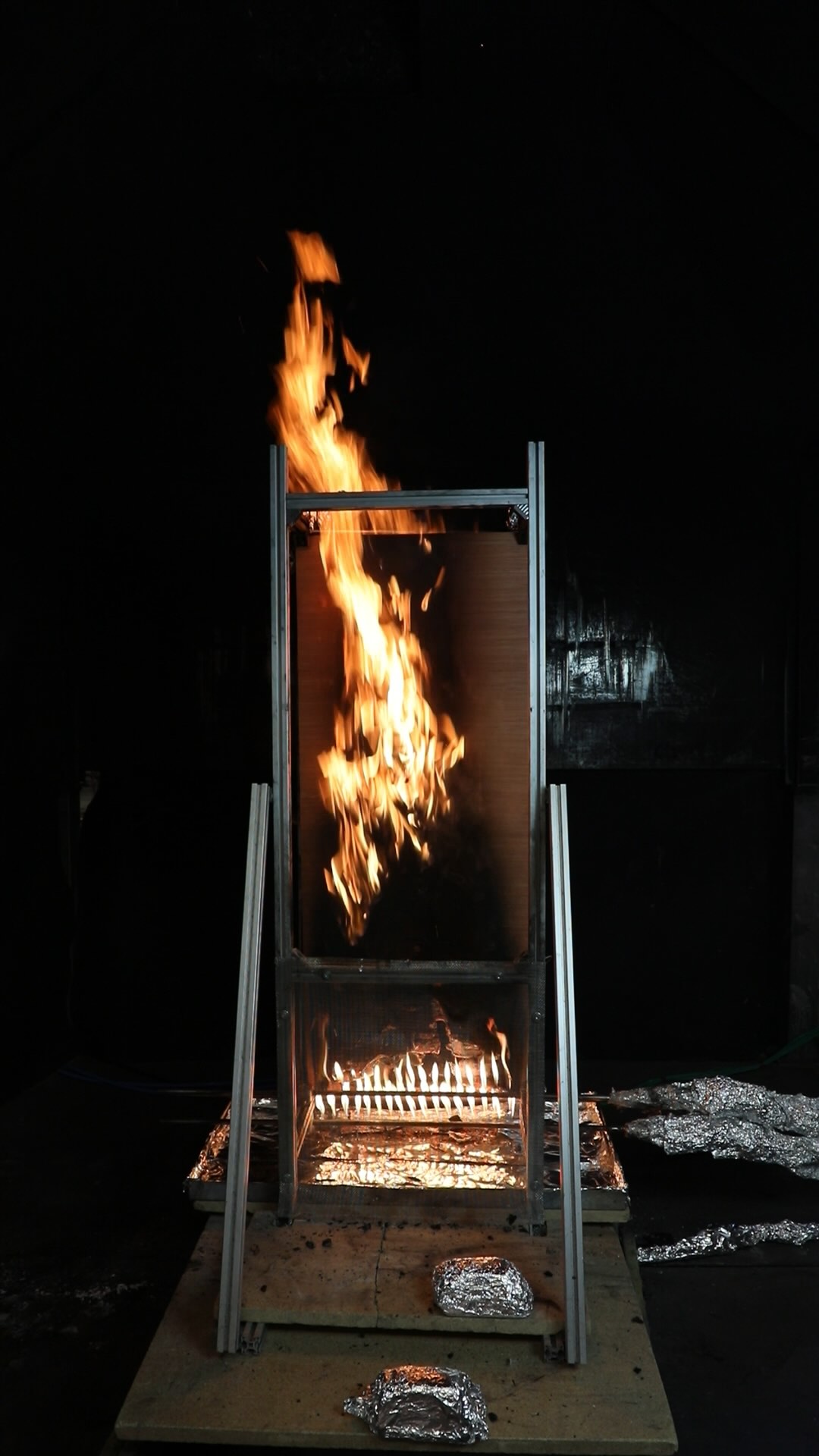

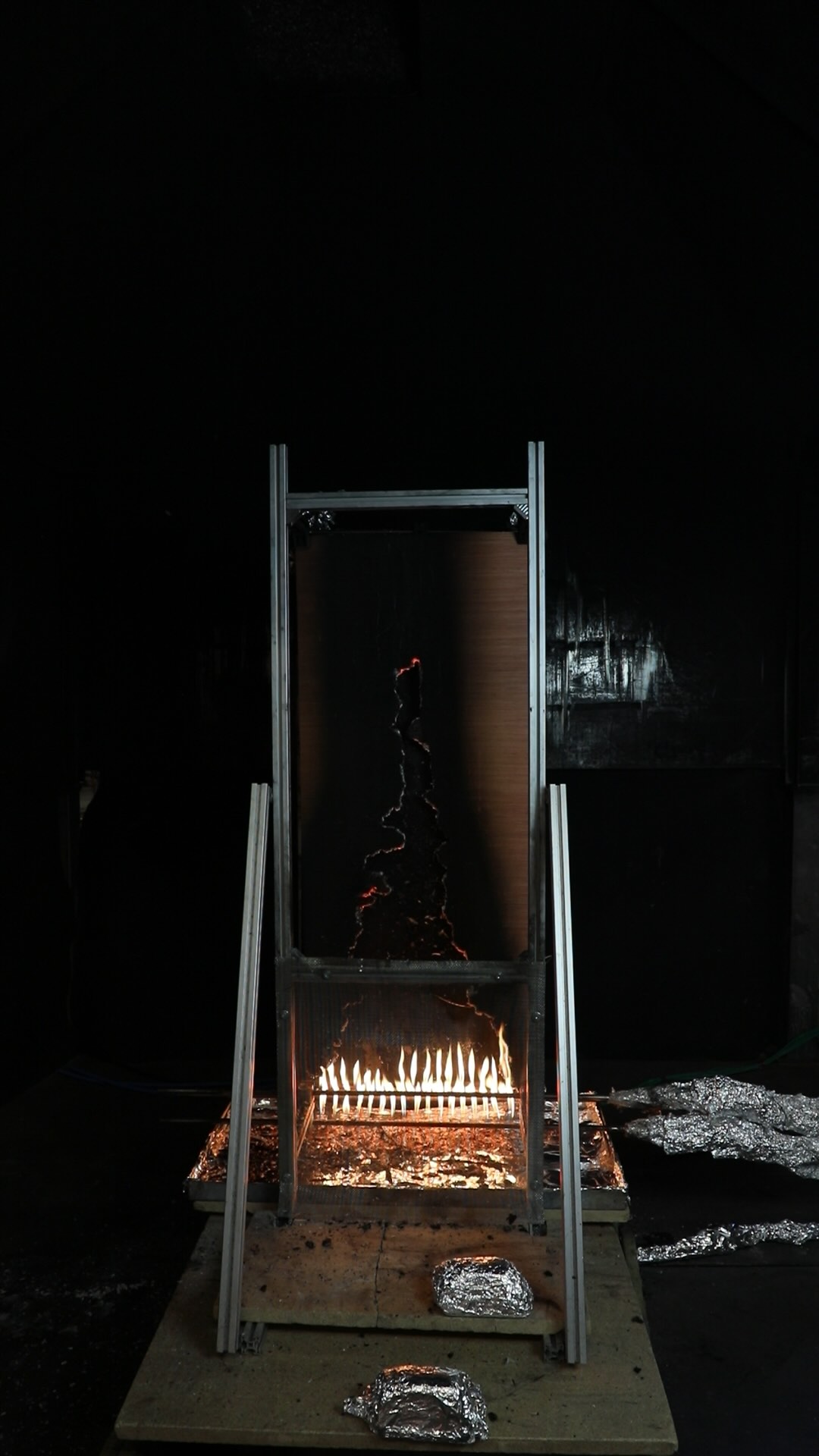

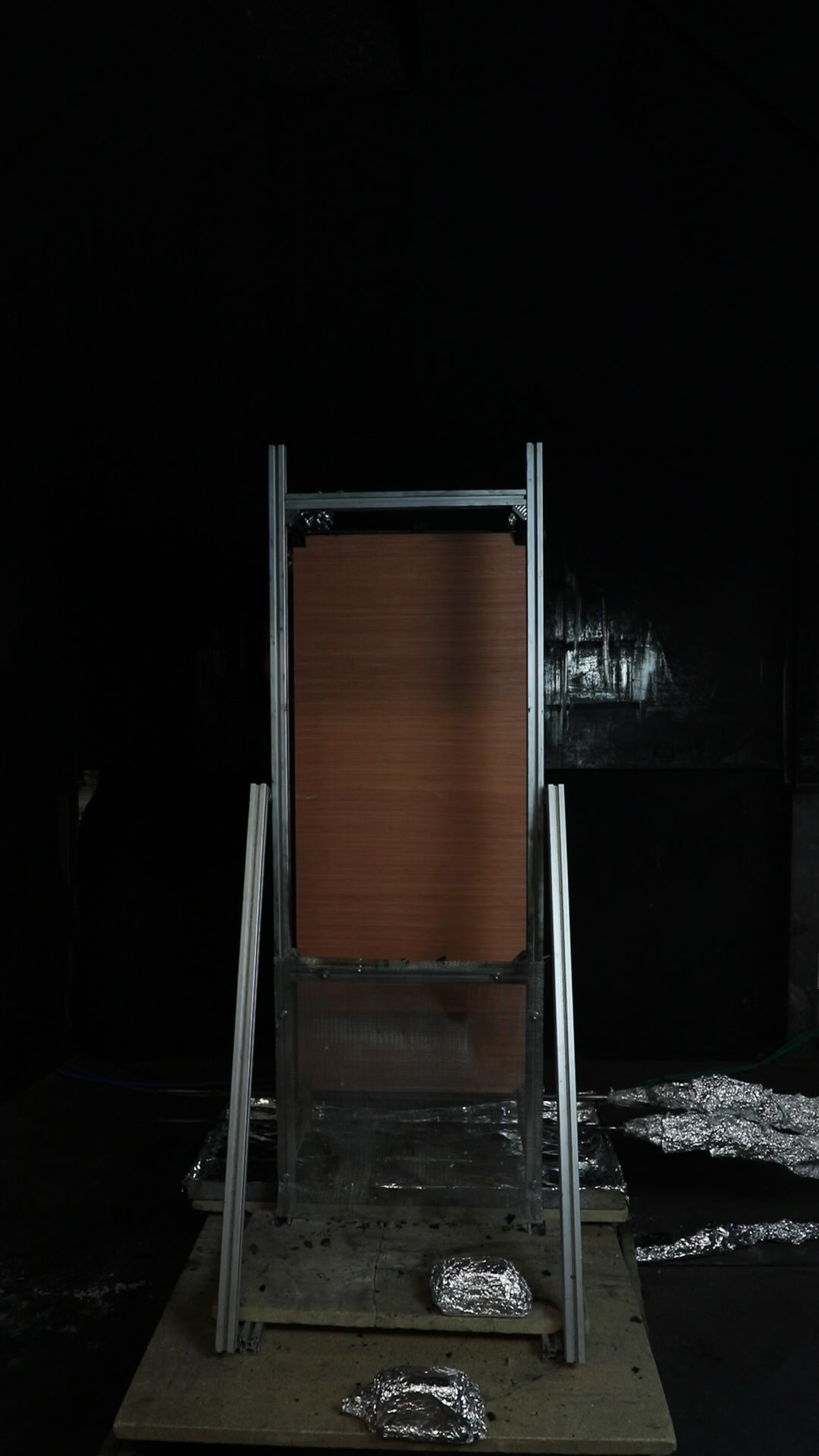

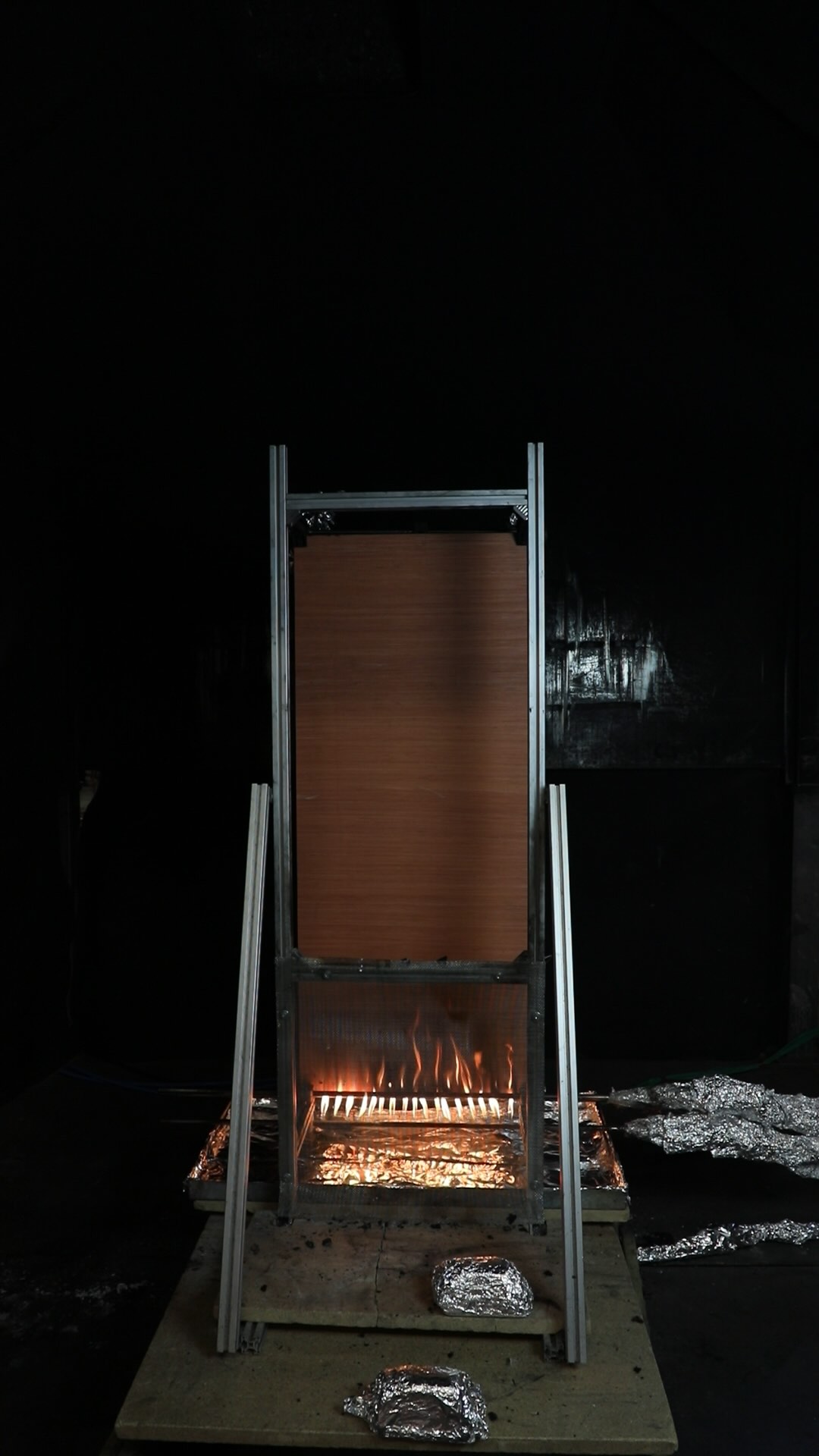

This experiment is on a system consisting of a Plywood cladding panel and a Water-cooled steel plate insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes
At approximately 6 minutes the plywood panel began to touch the insulation panel, affecting the mass measurements.
Test Details
| Cladding | Plywood |
| Cladding Thickness [mm] | 12 |
| Insulation | Water-cooled steel plate |
| Insulation thickness [mm] | |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 54.6 |
| Time to Peak HRR [mins] | 9.15 |
| Total HR [MJ] | 20.3 |
| Peak dQ/dt [kW/s] | 0.23 |
| Time to Peak dQ/dt [mins] | 8.82 |
| Residual HRR [kW] | 2.29 |
Video
HRR [kW] including burner baseline
Minutes
30
