CDR, WC, rep 1

Cedar Wood

Description

This experiment is on a system consisting of a Cedar Wood cladding panel and a Water-cooled steel plate insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.

Experiment Notes

There were no noticeable observations for this test.

Test Details
Cladding Cedar Wood
Cladding Thickness [mm] 12
Insulation Water-cooled steel plate
Insulation thickness [mm]
Cavity width [mm] 50
Repetition number 1
Metrics
Peak HRR [kW] 27.5
Time to Peak HRR [mins] 7.38
Total HR [MJ] 10.6
Peak dQ/dt [kW/s] 0.138
Time to Peak dQ/dt [mins] 5.58
Residual HRR [kW] 1.89

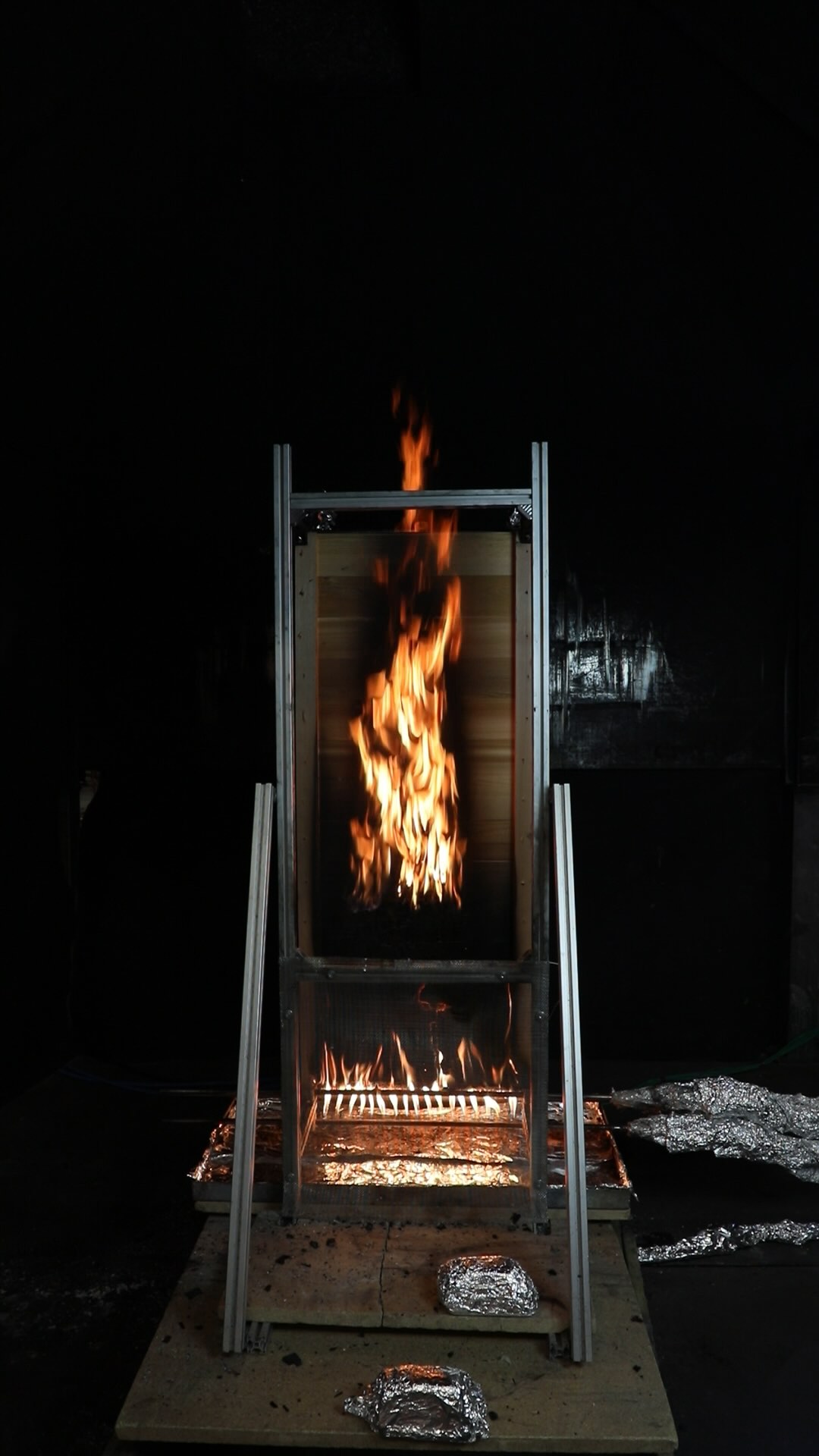

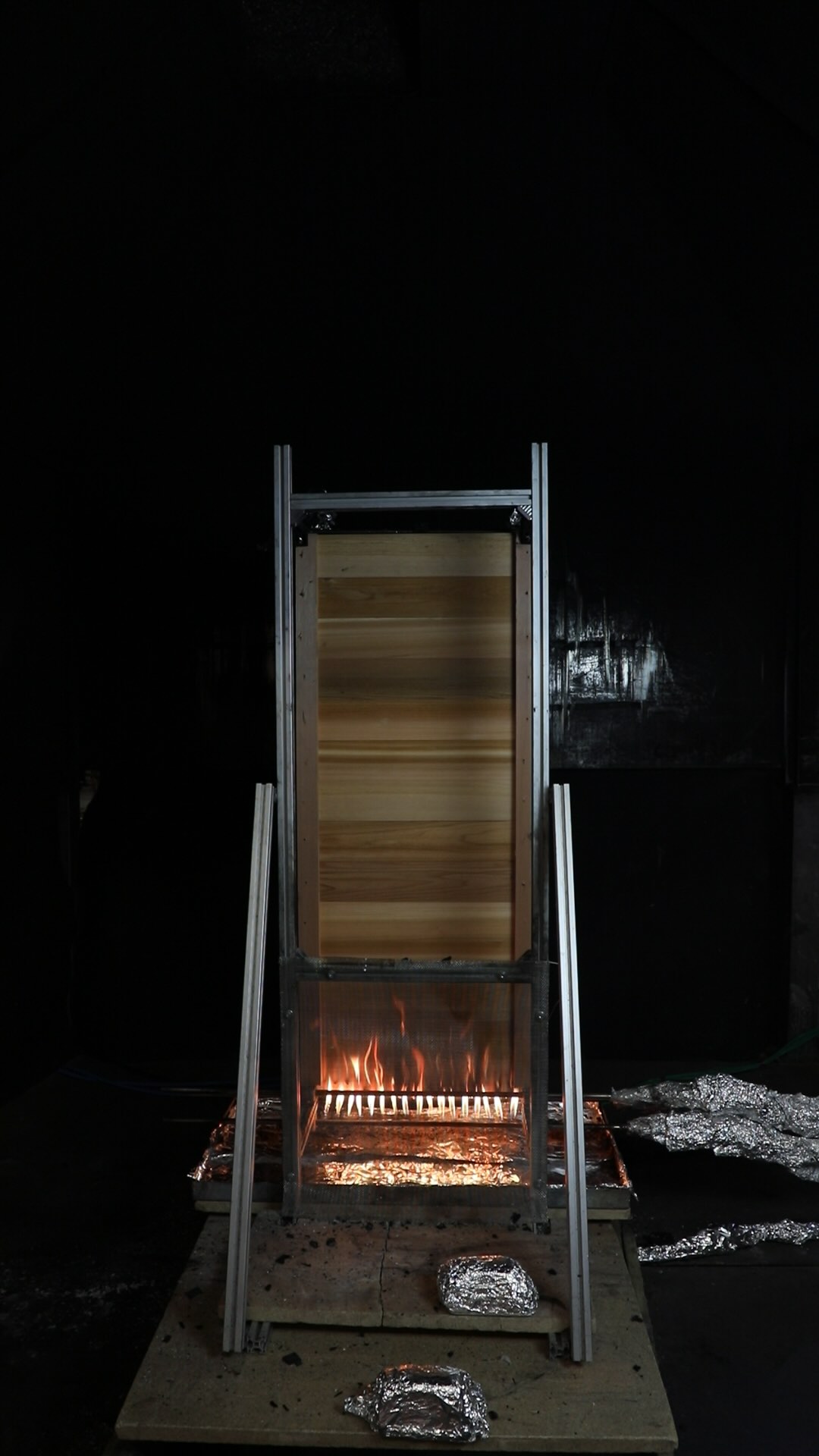

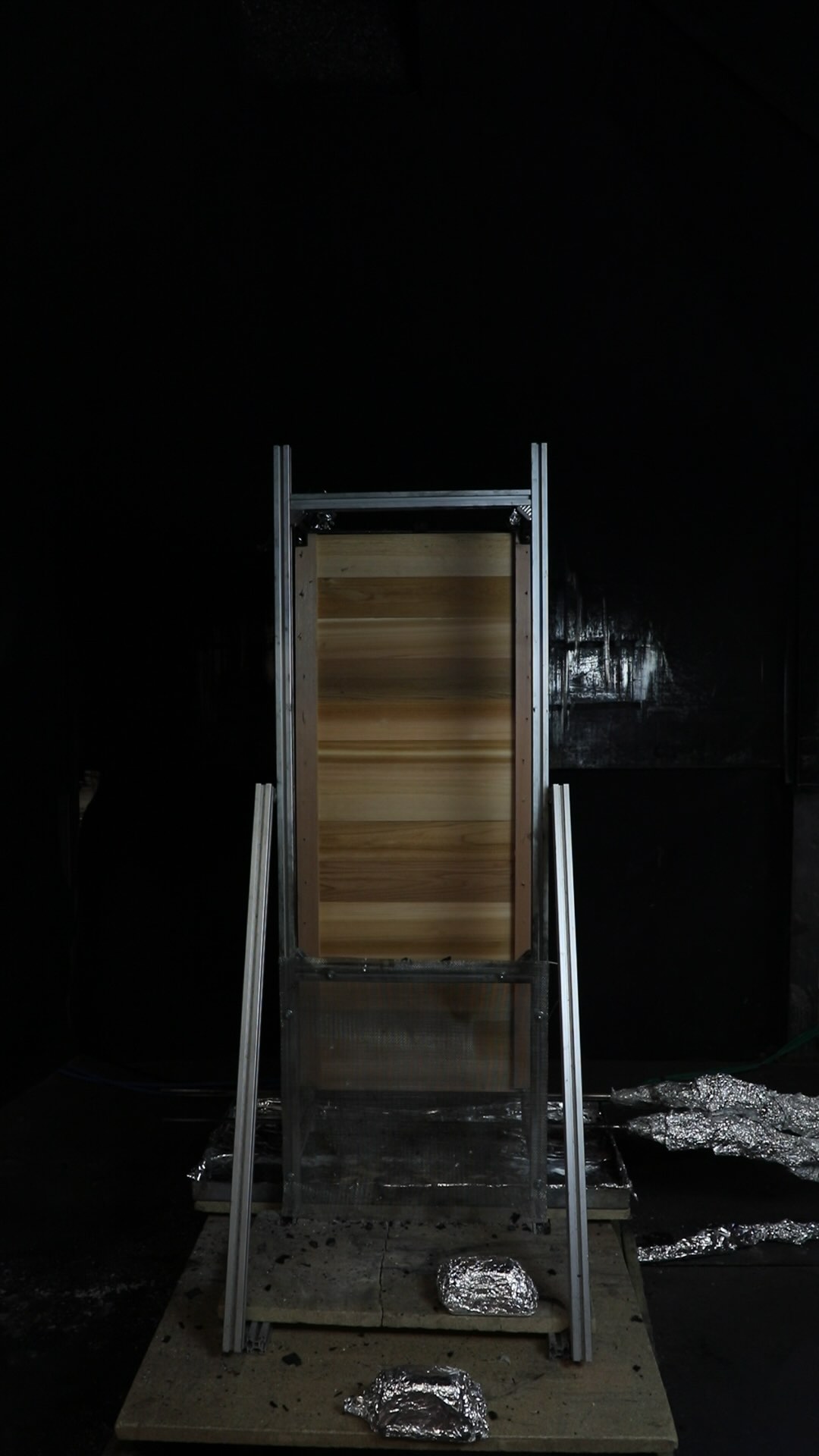

Test Pictures (click to zoom)
System Test Result
System Test Result
System Test Result
System Test Result
Download Data (CSV) Download Data (PDF)
Video
HRR [kW] including burner baseline
Minutes
30
