CDR, WC, rep 2
Cedar Wood
Description

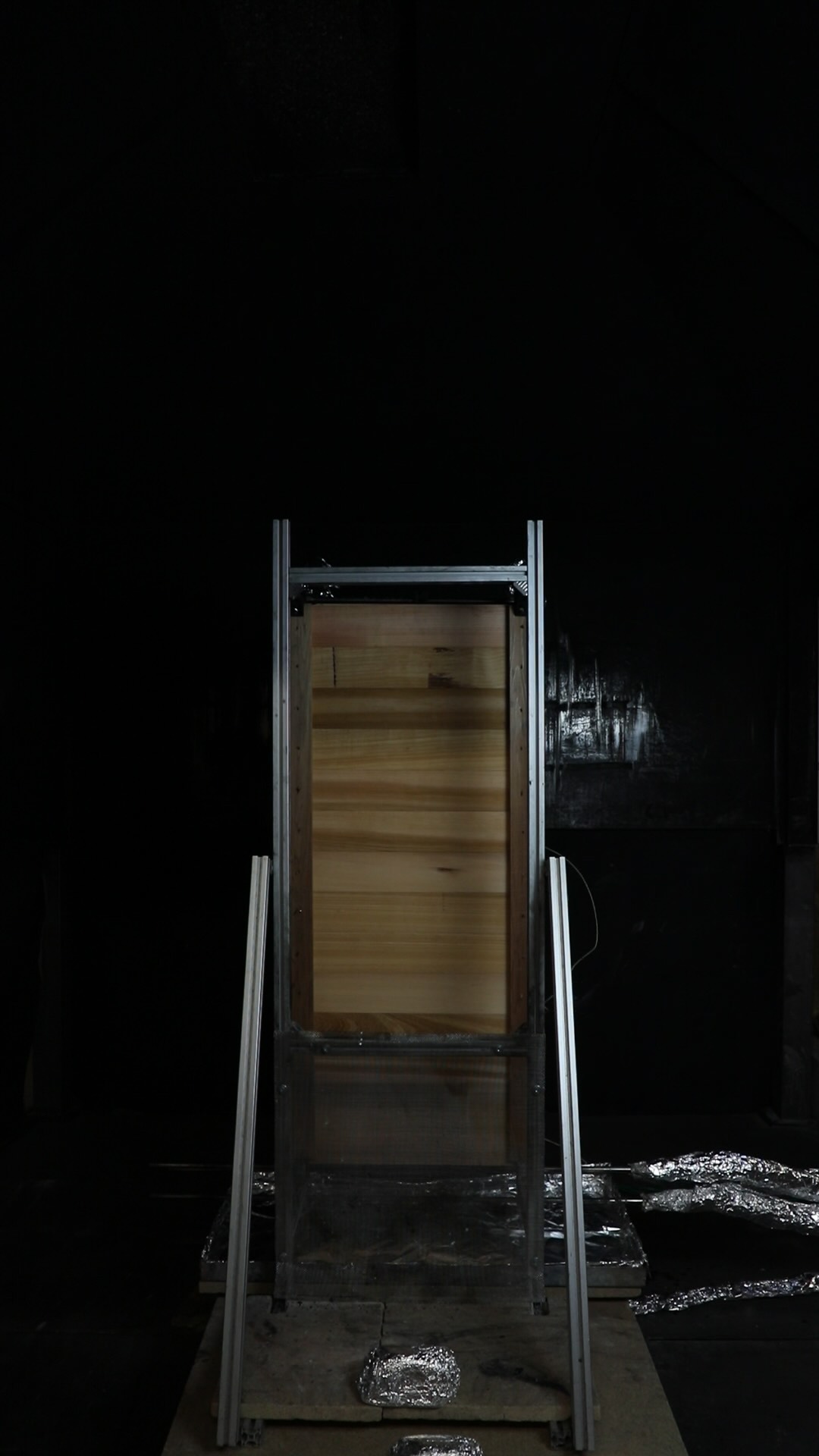

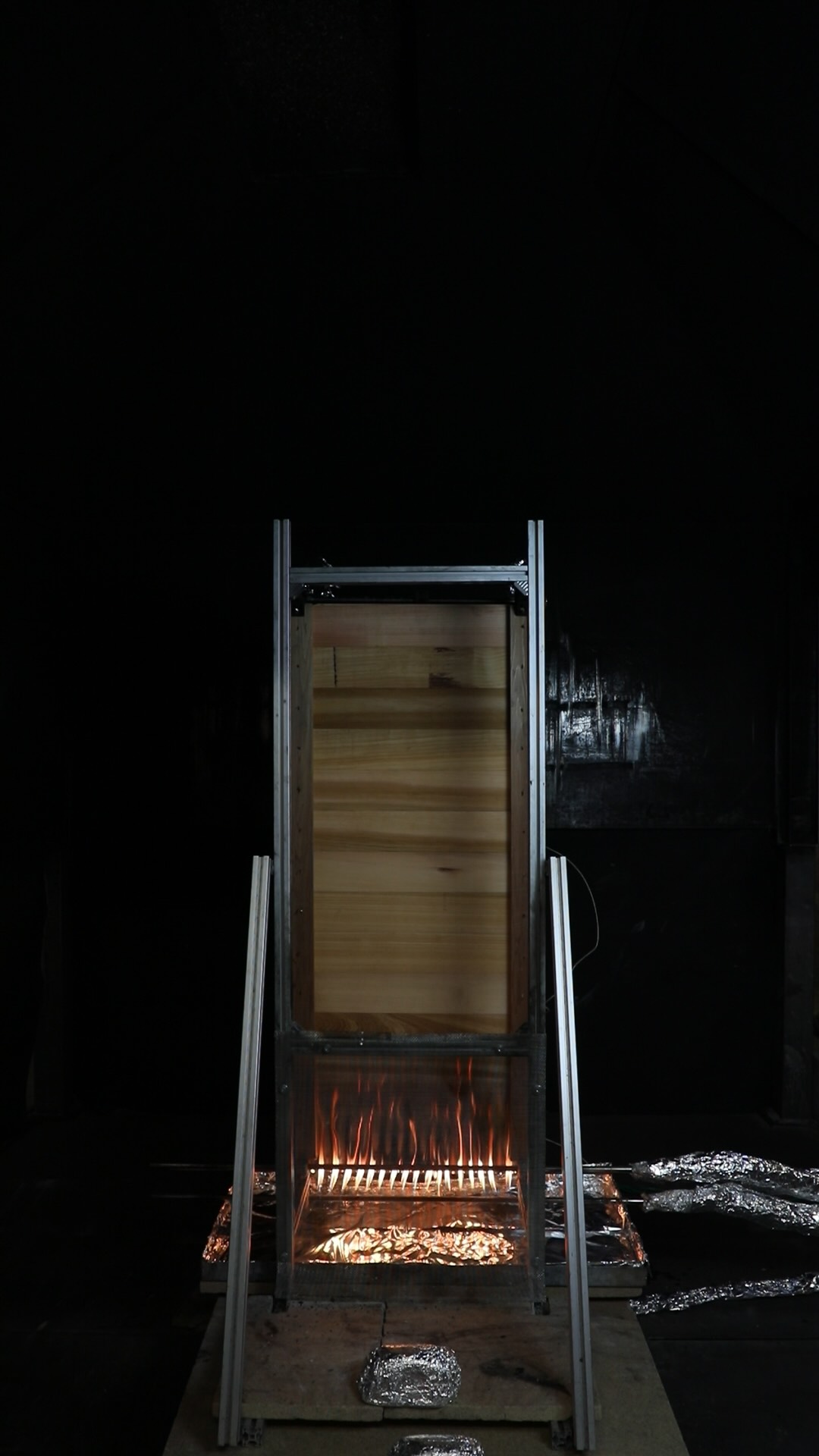

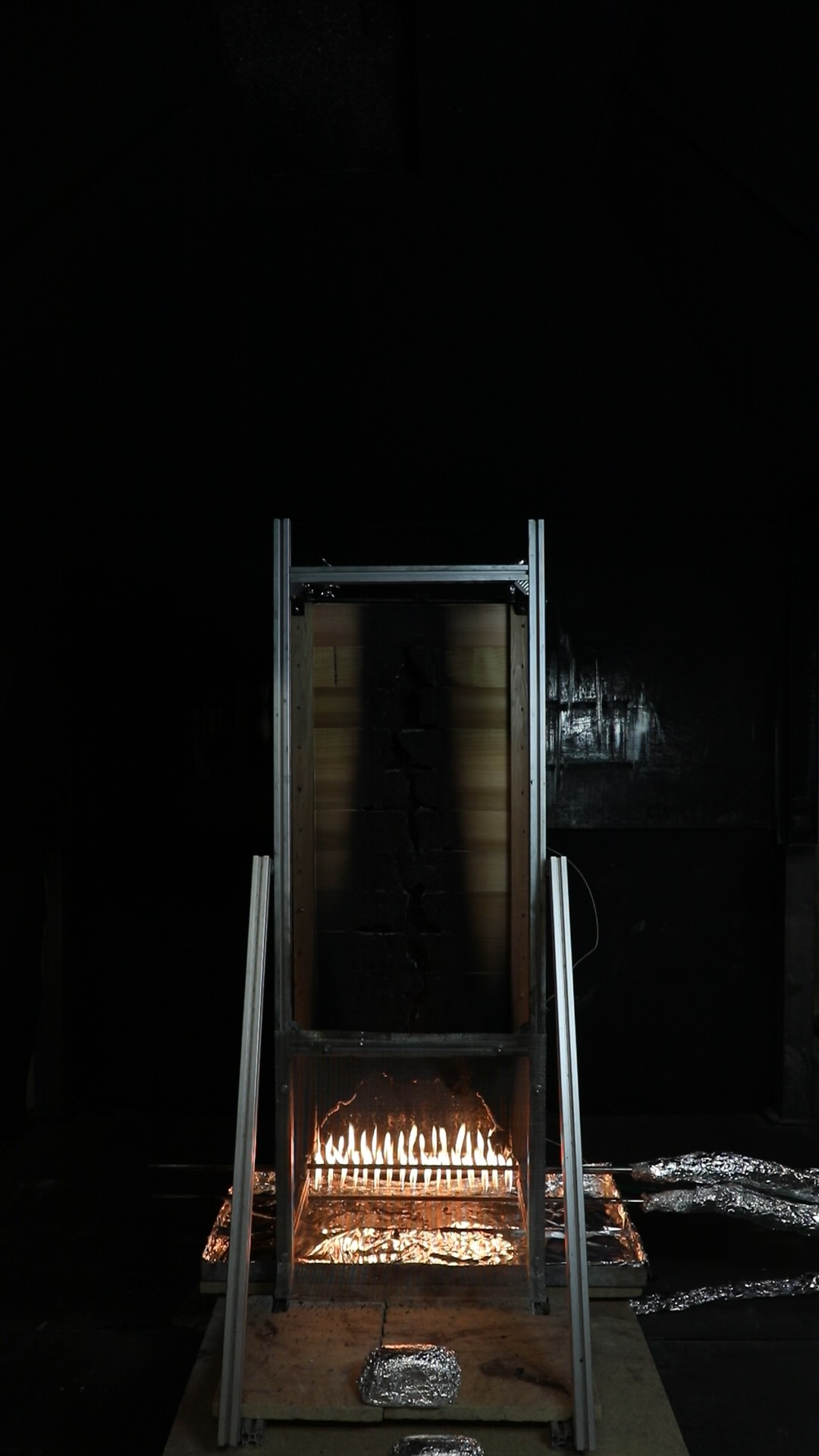

This experiment is on a system consisting of a Cedar Wood cladding panel and a Water-cooled steel plate insulation panel, separated with a cavity of 50 mm width. It is the second repetition of this system configuration.
Experiment Notes
There were no noticeable observations for this test.
Test Details
| Cladding | Cedar Wood |
| Cladding Thickness [mm] | 12 |
| Insulation | Water-cooled steel plate |
| Insulation thickness [mm] | |
| Cavity width [mm] | 50 |
| Repetition number | 2 |
Metrics
| Peak HRR [kW] | 23 |
| Time to Peak HRR [mins] | 6.33 |
| Total HR [MJ] | 8.73 |
| Peak dQ/dt [kW/s] | 0.156 |
| Time to Peak dQ/dt [mins] | 6.9 |
| Residual HRR [kW] | 1.35 |
Video
HRR [kW] including burner baseline
Minutes
30
