BRK, PIR, rep 1

Brick

Description

This experiment is on a system consisting of a Brick cladding and a Polyisocyanurate (PIR) foam insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.

Experiment Notes

There were no noticeable observations for this test.

Test Details
Cladding Brick
Cladding Thickness [mm] 102
Insulation Polyisocyanurate (PIR) foam
Insulation thickness [mm] 100
Cavity width [mm] 50
Repetition number 1
Metrics
Peak HRR [kW] 3.03
Time to Peak HRR [mins] 0.62
Total HR [MJ] 0.00603
Peak dQ/dt [kW/s] 0.0937
Time to Peak dQ/dt [mins] 1.03
Residual HRR [kW] 2.08

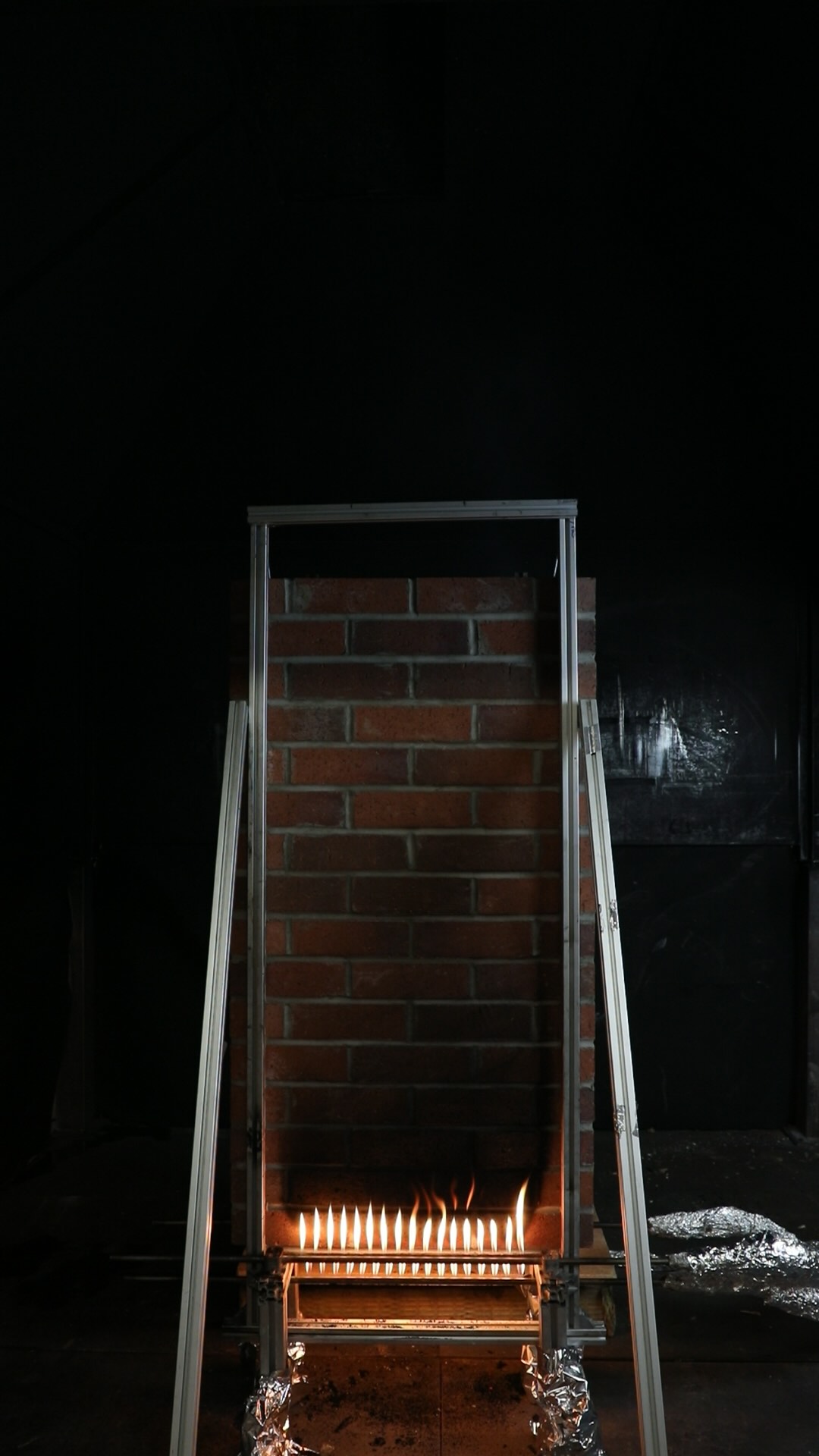

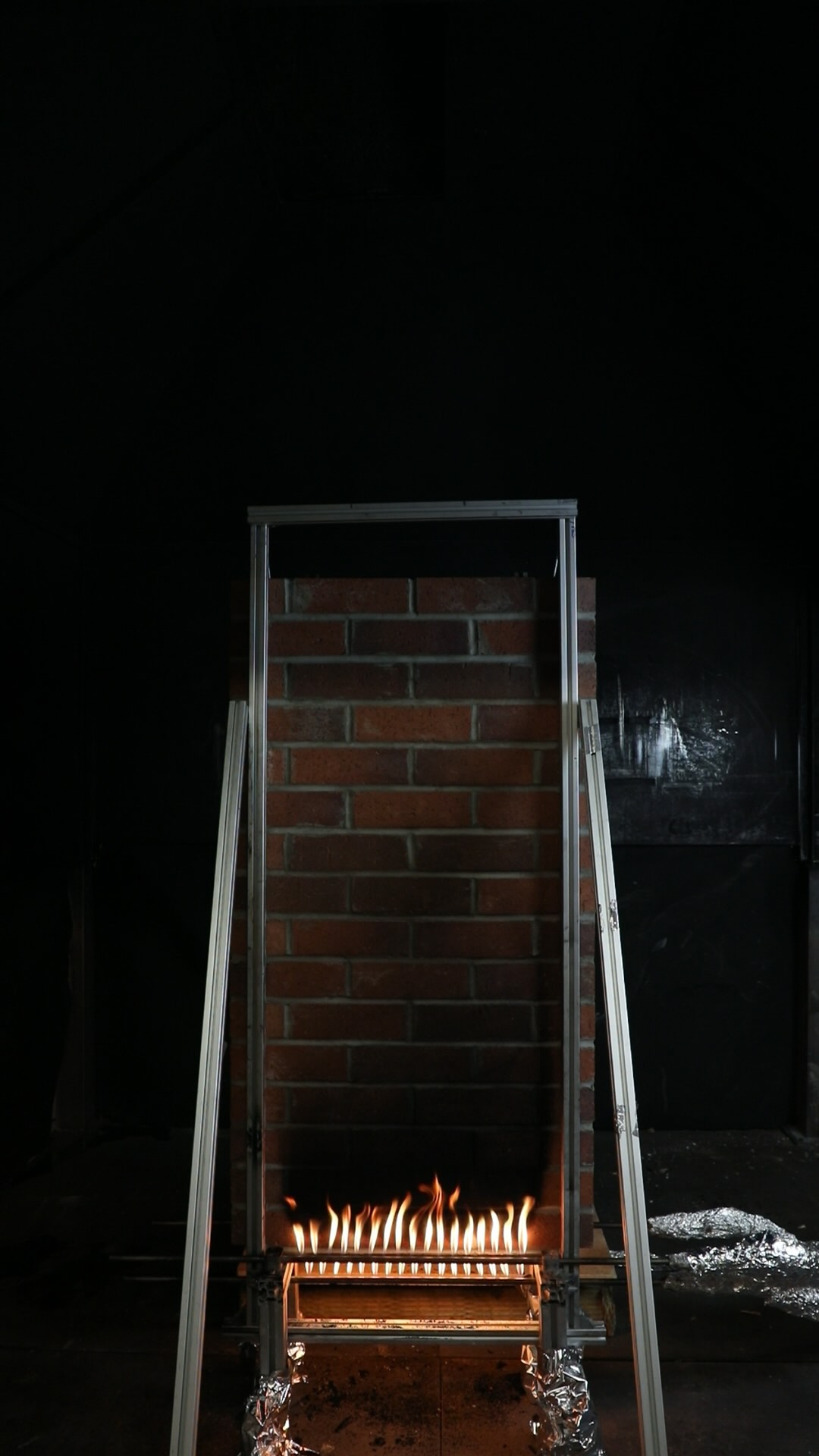

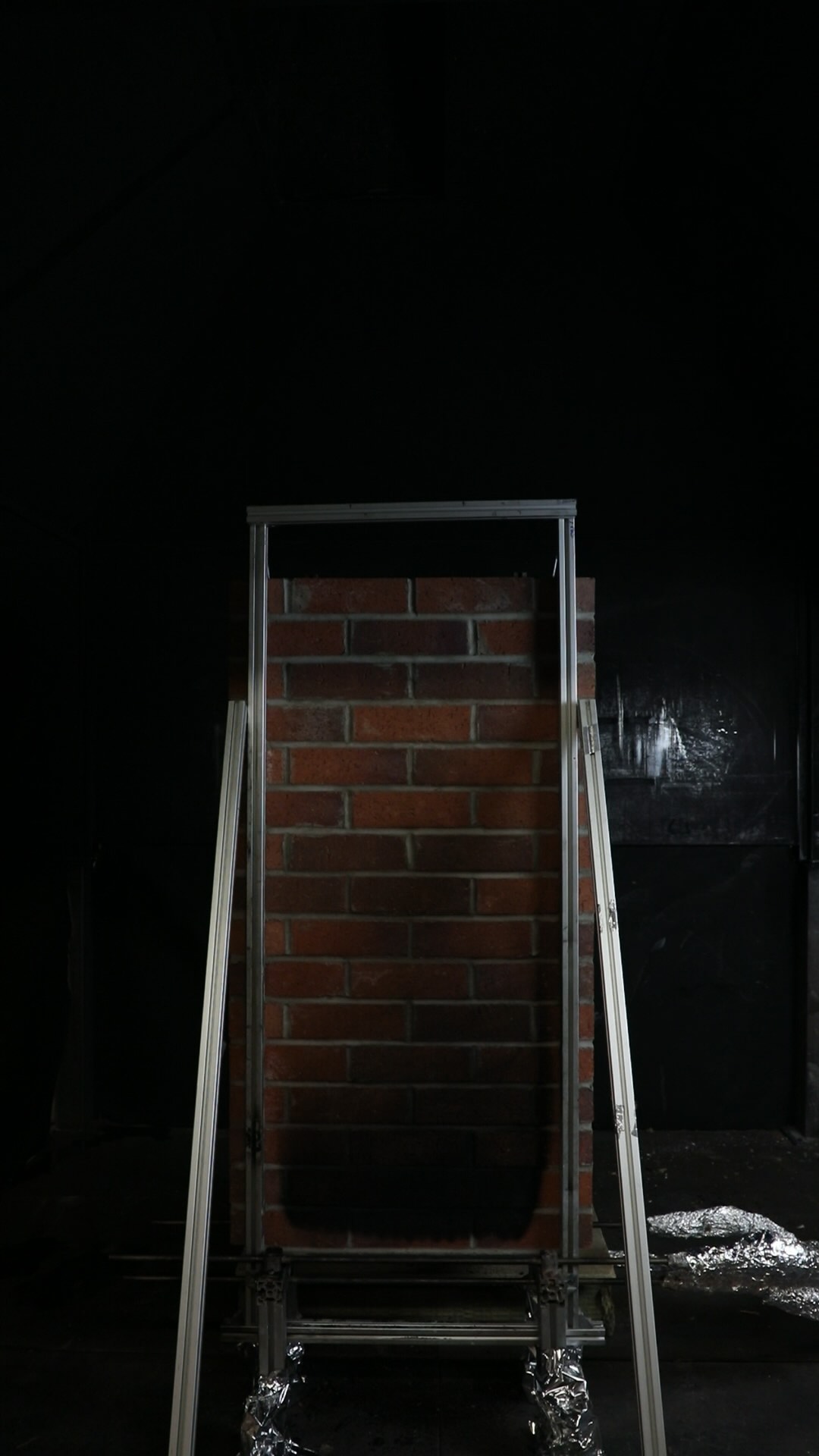

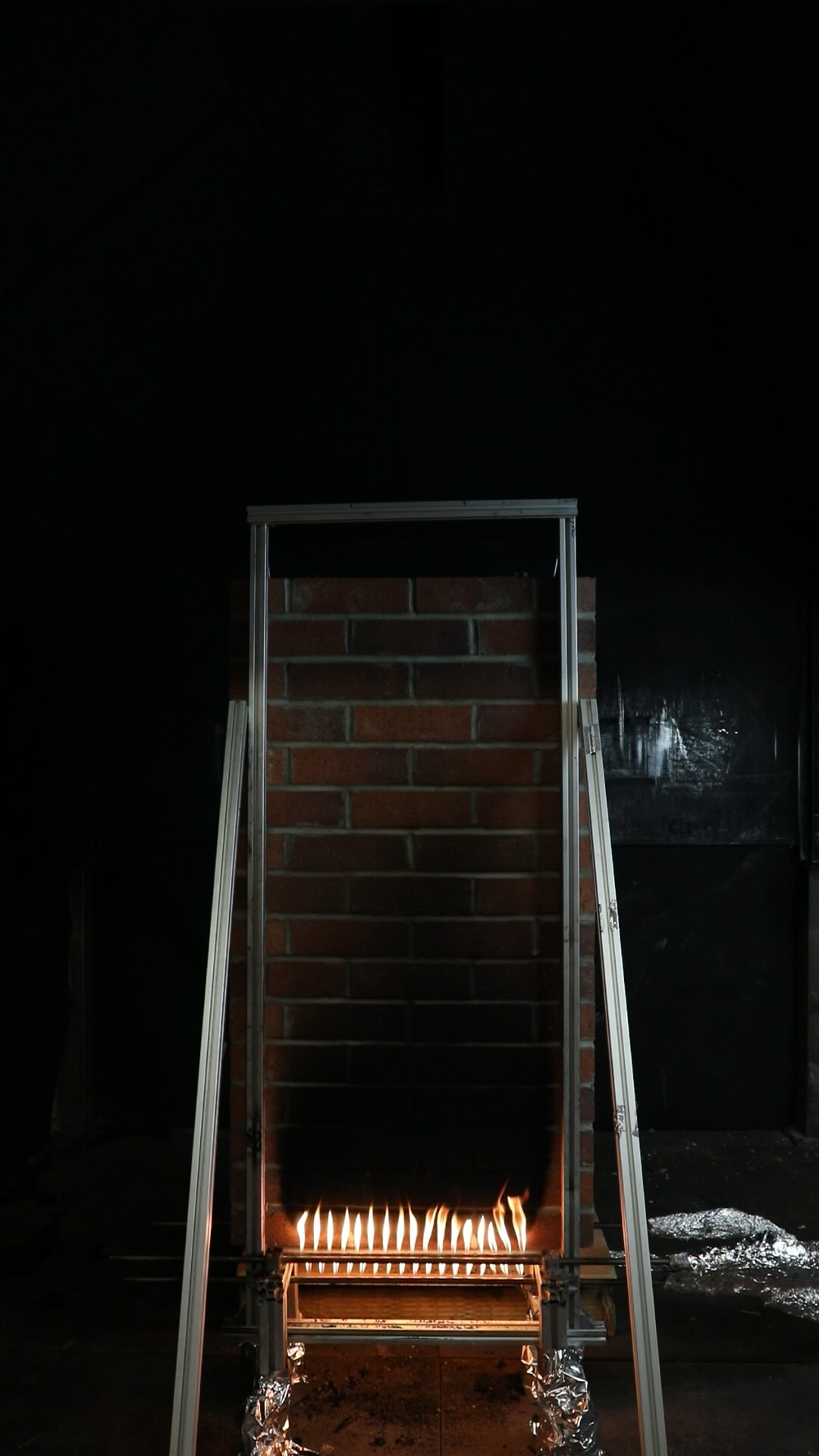

Test Pictures (click to zoom)
System Test Result
System Test Result
System Test Result
System Test Result
Download Data (CSV) Download Data (PDF)
Video
HRR [kW] including burner baseline
Minutes
