BRK, MW, rep 2

Brick

Description

This experiment is on a system consisting of a Brick cladding and a Mineral Wool (MW) insulation panel, separated with a cavity of 50 mm width. It is the second repetition of this system configuration.

Experiment Notes

There were no noticeable observations for this test.

Test Details
Cladding Brick
Cladding Thickness [mm] 102
Insulation Mineral Wool (MW)
Insulation thickness [mm] 100
Cavity width [mm] 50
Repetition number 2
Metrics
Peak HRR [kW] 0
Time to Peak HRR [mins]
Total HR [MJ] 0
Peak dQ/dt [kW/s] 0
Time to Peak dQ/dt [mins]
Residual HRR [kW] 1.96
Test Pictures (click to zoom)

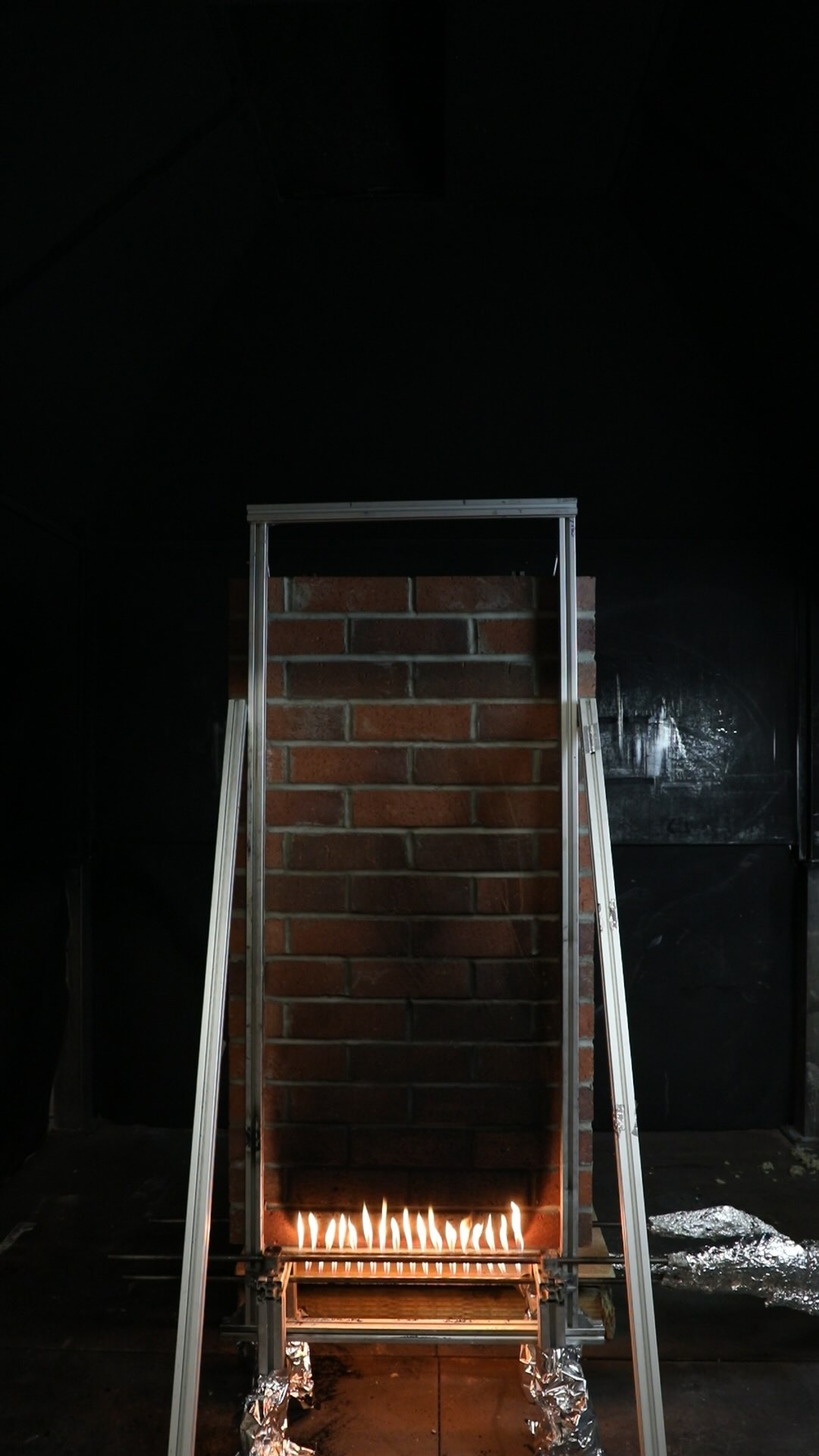

System Test Result

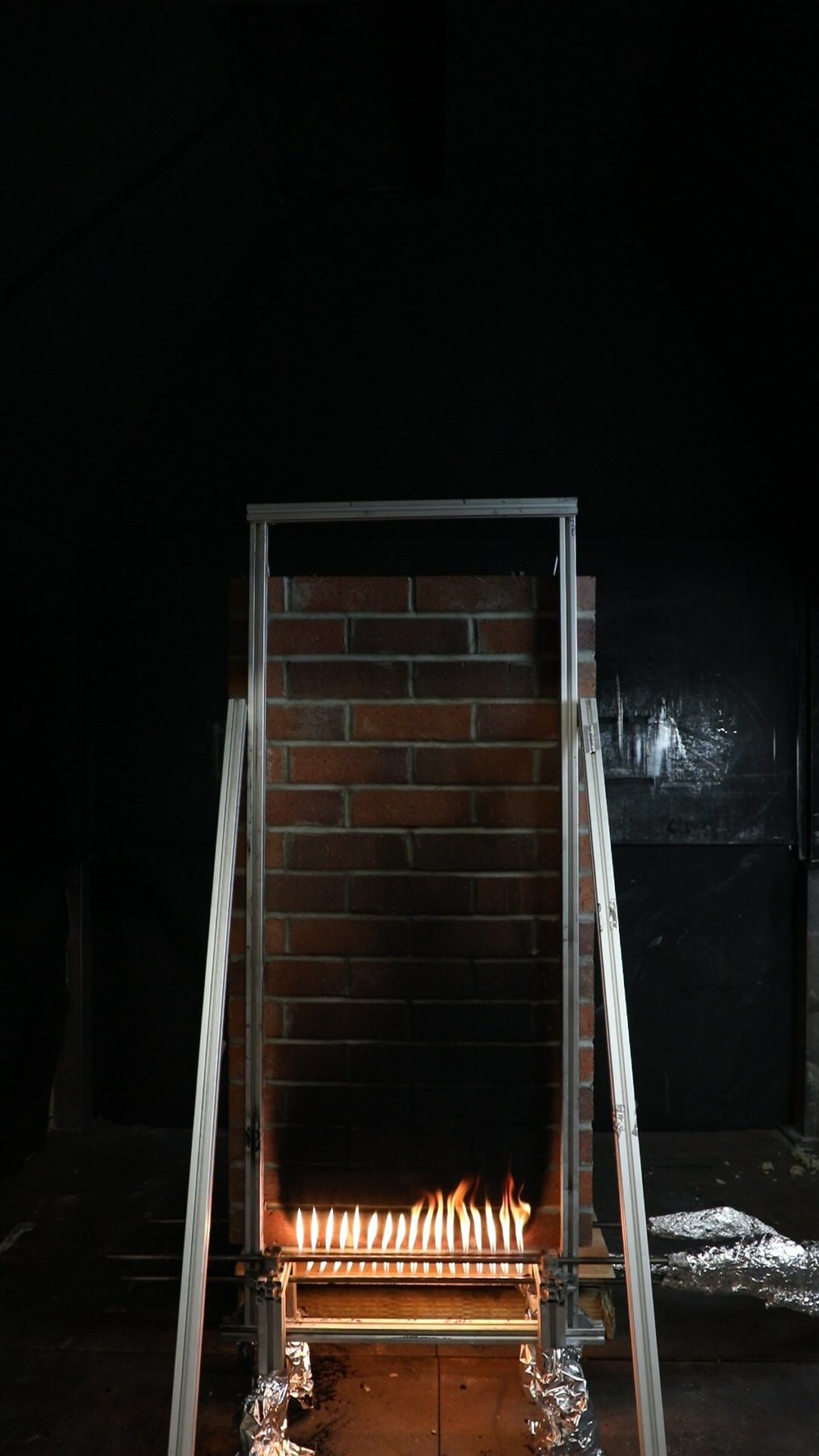

System Test Result

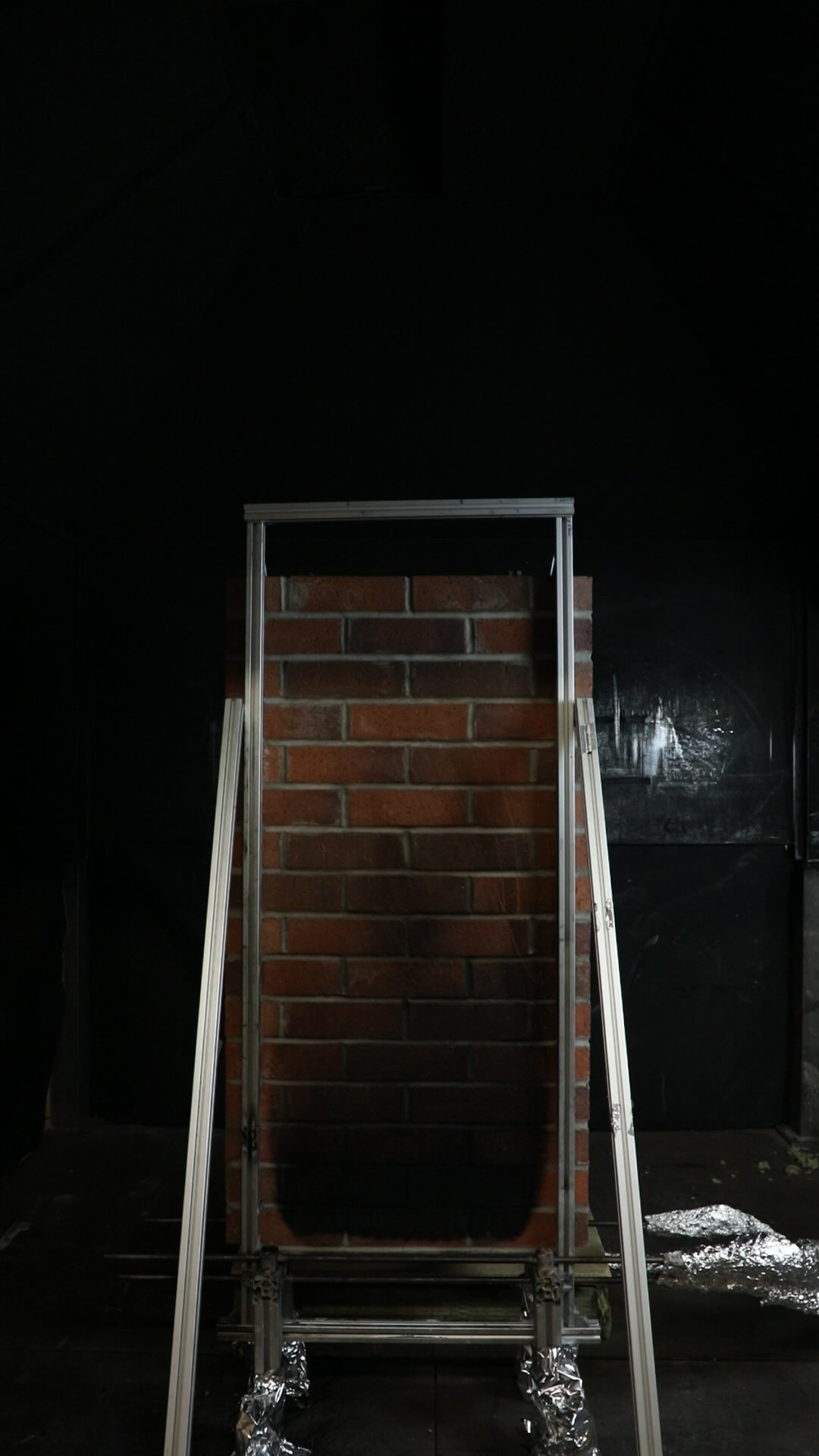

System Test Result

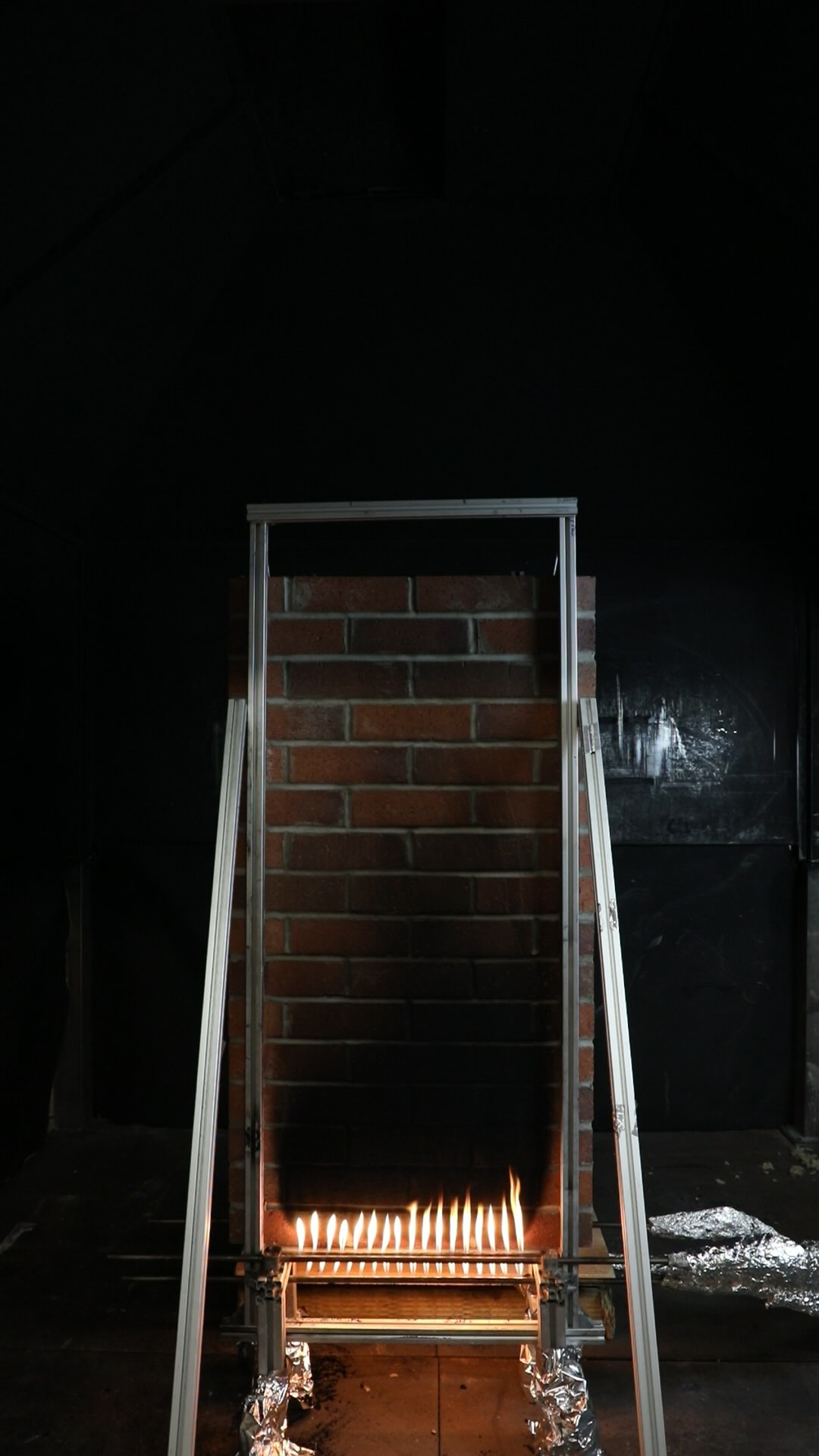

System Test Result
Download Data (CSV) Download Data (PDF)
Video
HRR [kW] including burner baseline
Minutes
30
