BRK, PF, rep 2
Brick
Description

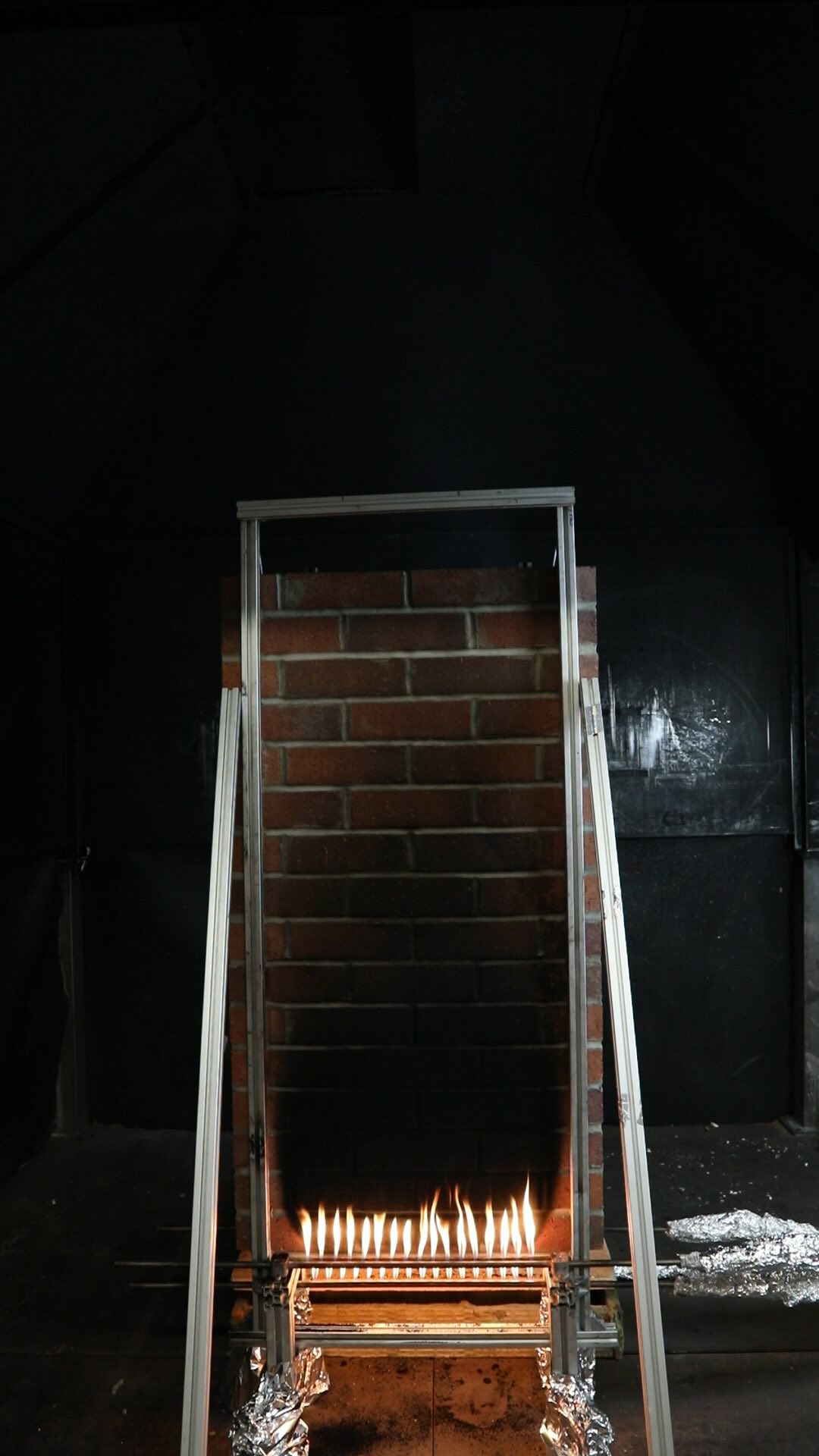

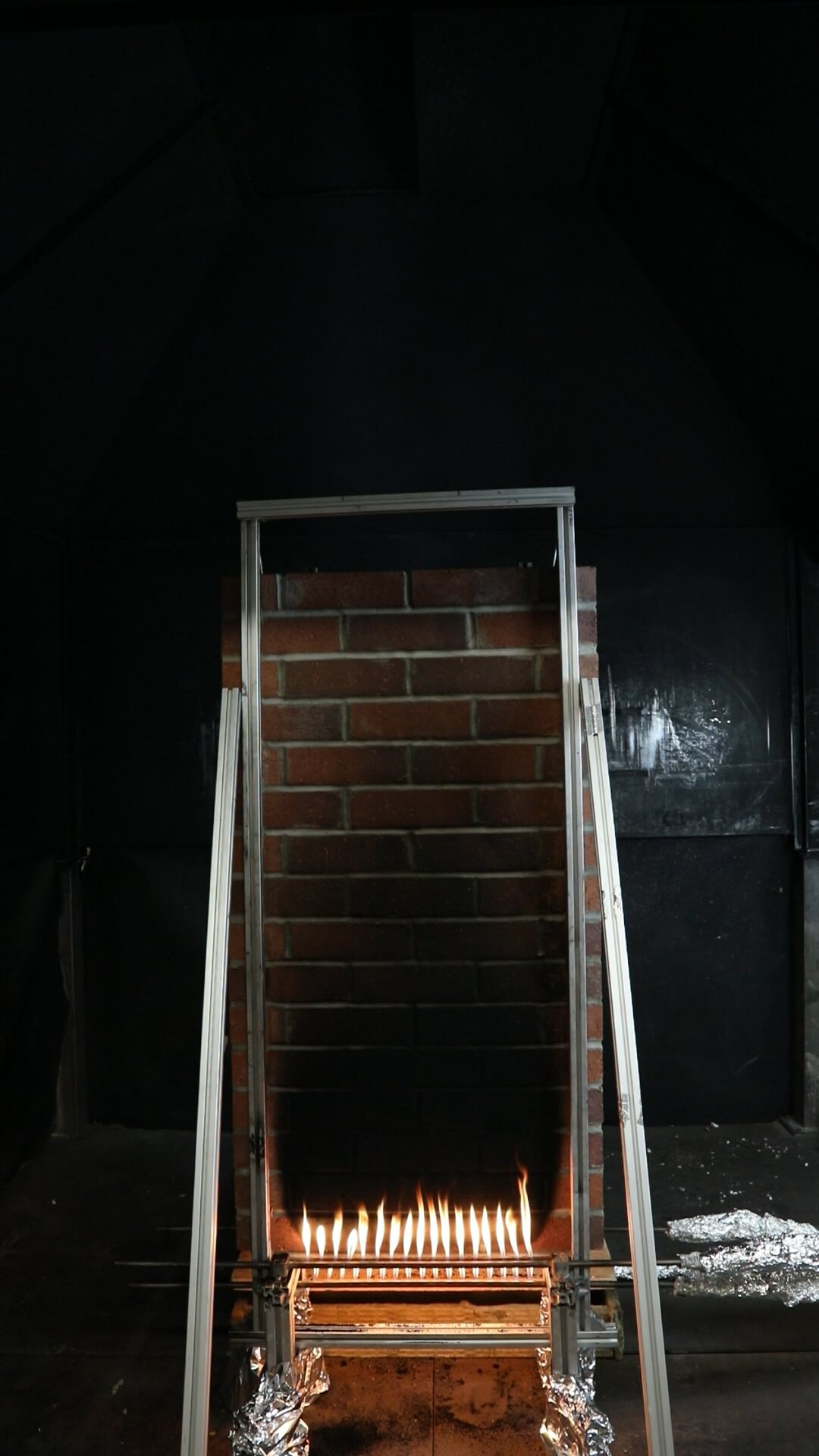

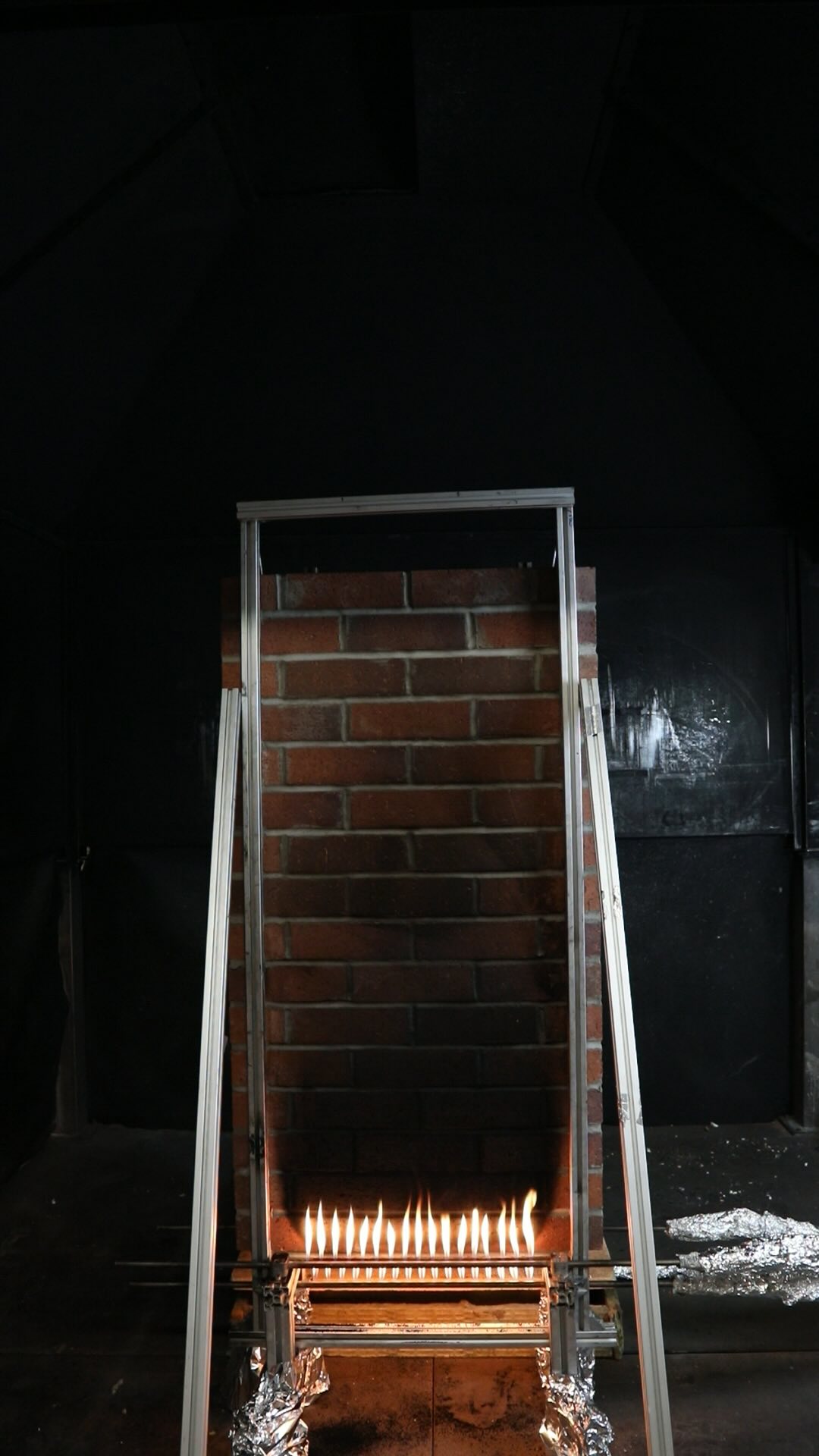

This experiment is on a system consisting of a Brick cladding and a Phenolic (PF) foam insulation panel, separated with a cavity of 50 mm width. It is the second repetition of this system configuration.
Experiment Notes
Smouldering in the Phenolic foam insulation was seen to propagate at the end of the experiment, leading to a peak HRR of 25 kW, 49 minutes after the beggining of the test, eventually leading to the complete consumption of the Phenolic insulation panel.
Test Details
| Cladding | Brick |
| Cladding Thickness [mm] | 102 |
| Insulation | Phenolic (PF) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 2 |
Metrics
| Peak HRR [kW] | 4.13 |
| Time to Peak HRR [mins] | 29.8 |
| Total HR [MJ] | 1.1 |
| Peak dQ/dt [kW/s] | 0.0782 |
| Time to Peak dQ/dt [mins] | 1.05 |
| Residual HRR [kW] | 3.9 |
Video
HRR [kW] including burner baseline
Minutes
30
