ACM PE, PF, rep 1
Aluminium Composite Material (ACM) PE
Description

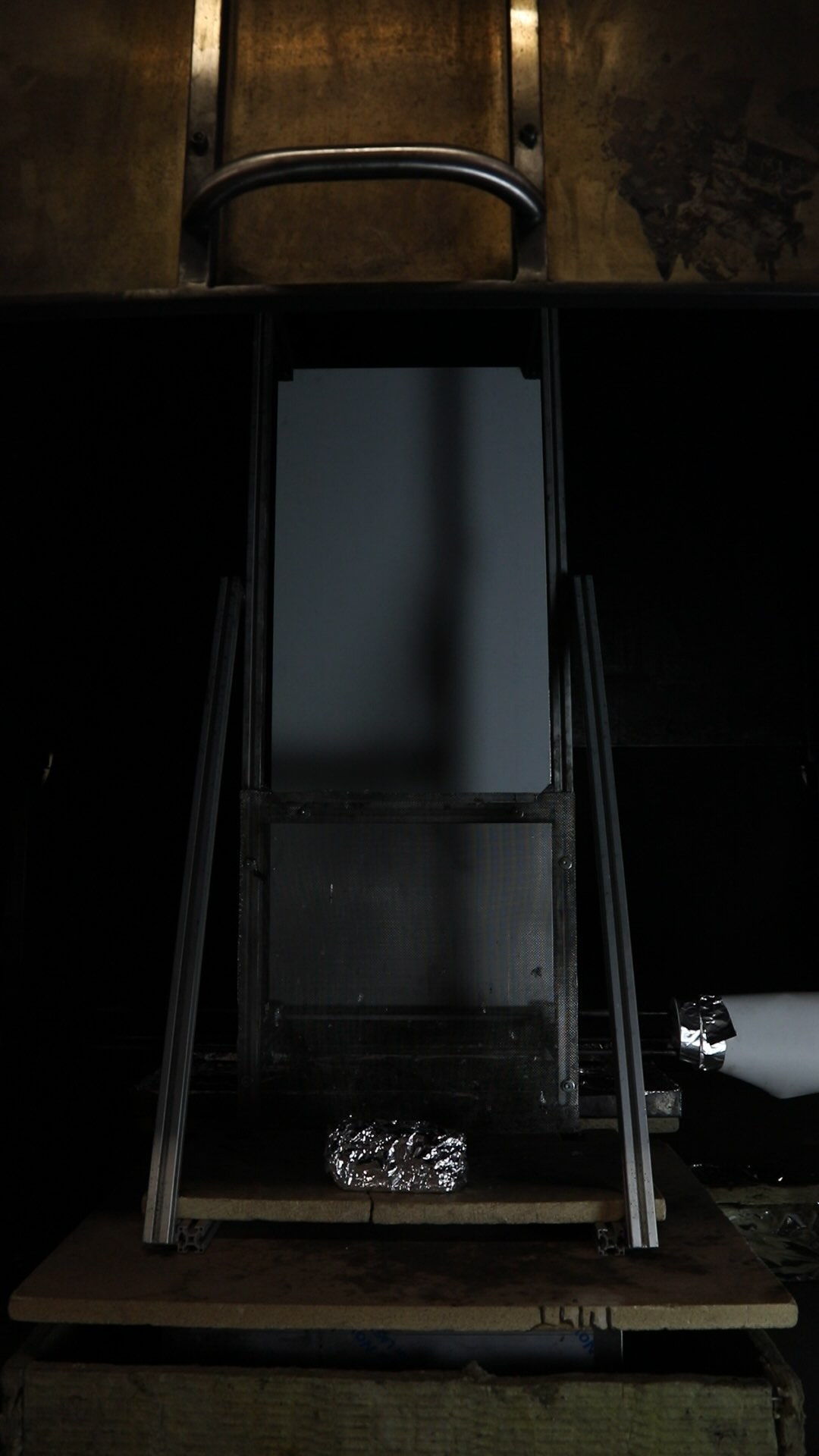

This experiment is on a system consisting of an Aluminium Composite Material (ACM) PE cladding panel and a Phenolic (PF) foam insulation panel, separated with a cavity of 50 mm width. It is the first repetition of this system configuration.
Experiment Notes

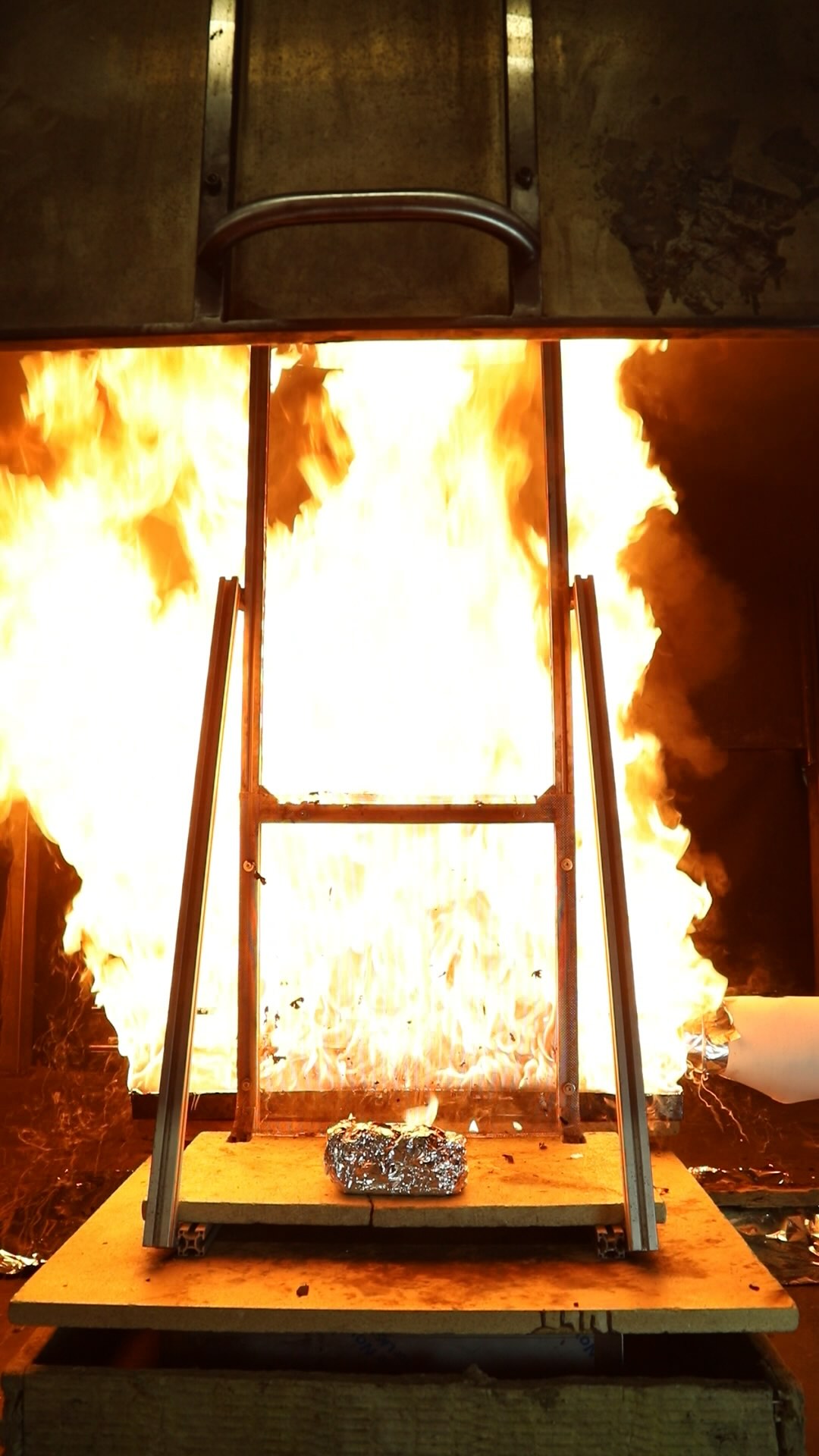

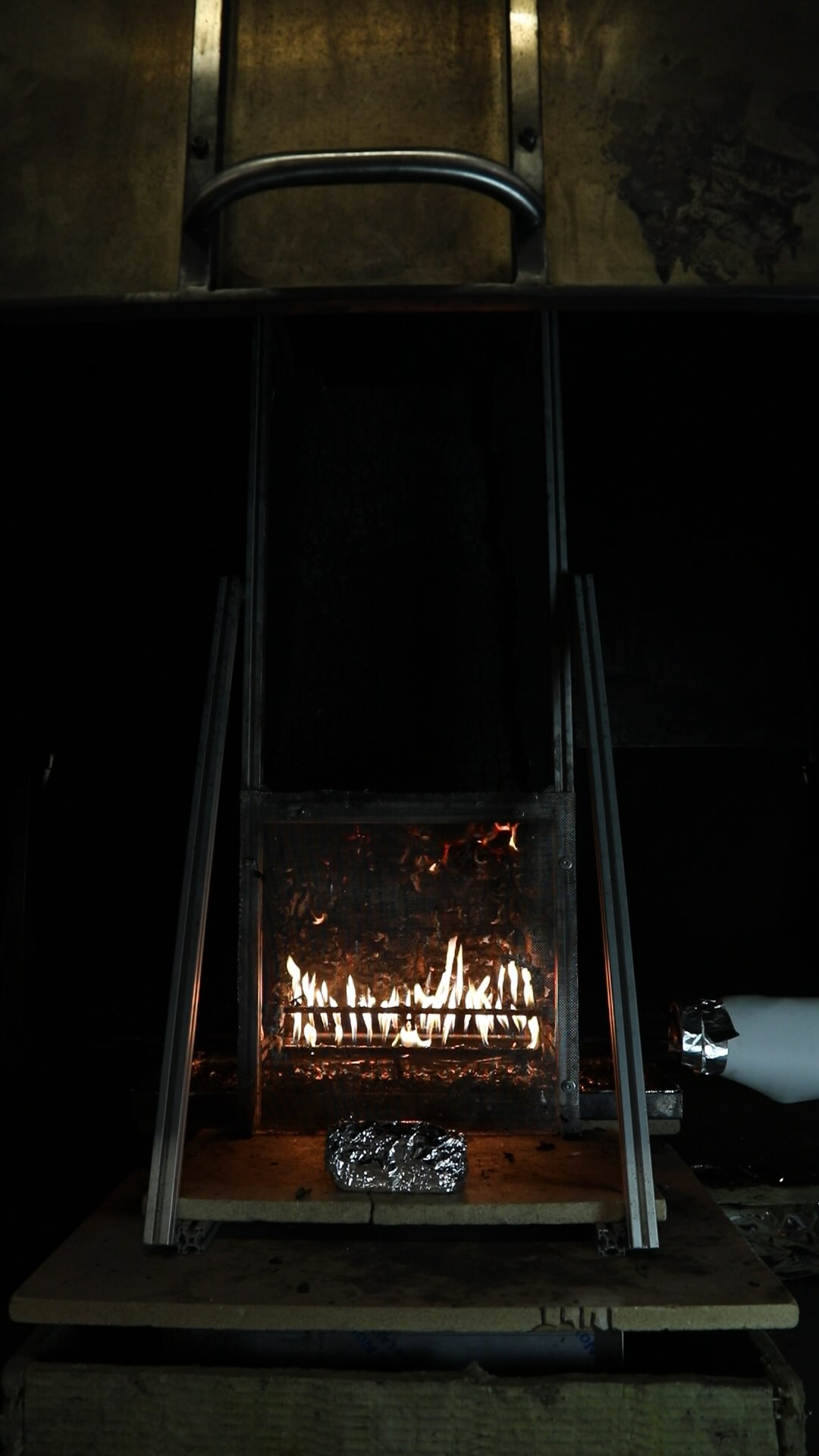

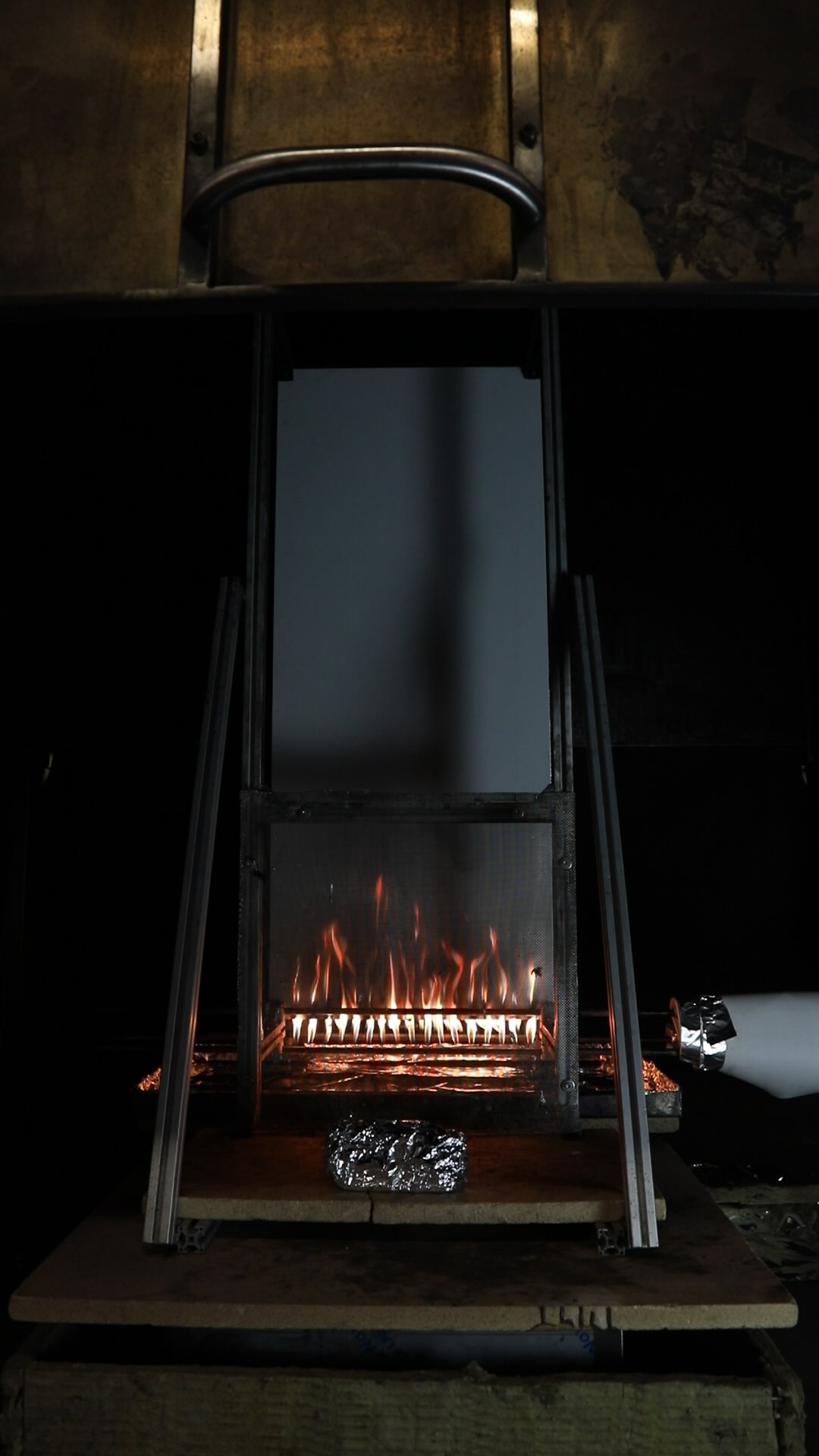

At approximately 1 minute the PE core began to drip from the ACM panel, and continued to burn within the debris tray. At approximately 4 minutes, smoking droplets were observed coming out from the sides of the ACM PE panel.
Test Details
| Cladding | Aluminium Composite Material (ACM) PE |
| Cladding Thickness [mm] | 4 |
| Insulation | Phenolic (PF) foam |
| Insulation thickness [mm] | 100 |
| Cavity width [mm] | 50 |
| Repetition number | 1 |
Metrics
| Peak HRR [kW] | 654 |
| Time to Peak HRR [mins] | 5.15 |
| Total HR [MJ] | 74.6 |
| Peak dQ/dt [kW/s] | 7.37 |
| Time to Peak dQ/dt [mins] | 5.72 |
| Residual HRR [kW] | 5.56 |
Video
HRR [kW] including burner baseline
Minutes
30
